Jointer

Powermatic PJ1696 Jointer 16 IN 7.5HP 3PH 230 - 460V - 1791283

This 16" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 in and out, and a positive stop for perfect 90 angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty.

Powermatic 1285 12 In Jointer 3HP 1PH 230V Helical Head - 1791307

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 in and out, and a positive stop for perfect 90 angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment.

available on 02/23/2022

Powermatic 1285 12 IN Jointer 3HP 3PH 230-460V Helical Head - 1791308

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 in and out, and a positive stop for perfect 90 angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment.

Powermatic 1285 12 In Jointer 3HP 1PH 230V - 1791241

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90 angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment.

Powermatic PJ-882HH 8In Parallelogram Jointer 2HP 1PH 230V - 1610082

The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four sided knife inserts – these produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82” bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees.

Powermatic PJ882 8 In Parallelogram Jointer 2HP 1PH 230V - 1610079

The 8" Parallelogram Jointer offers performance and value in a machine loaded with features. Each machine has an extra long 82" bed length for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of tough duty. The 1/8" depth limiter control knob gives you quick adjustment ability and safety. A quick twist of the knob will disable this feature.

Powermatic 60HH 8 IN Jointer 2HP 1PH 230V, Helical Head - 1610086K

This 8" jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments.

available on 03/08/2022

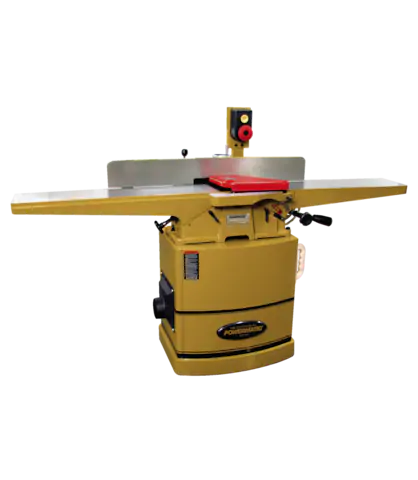

Powermatic 60C 8 Inch Jointer 2HP 1PH 230V - 1610084K

This 8" jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.

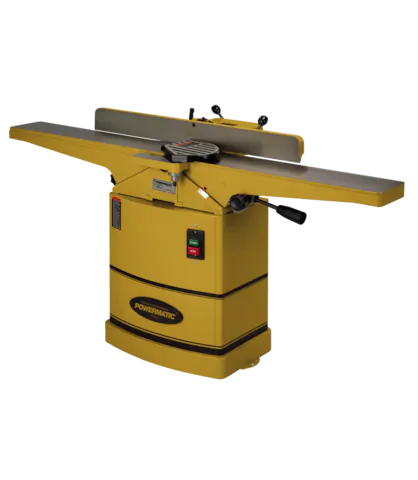

Powermatic 54HH Jointer 1PH 115/230V - 1791317K

This 6" Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.

Powermatic 54A Jointer 1PH 115/230V - 1791279DXK

The 6" Jointer features three auto-set knives that align themselves in the cutterhead for rapid knife changes. Oversized infeed/outfeed tables are mounted on dovetailed ways and have a built-in rabbeting ledge. The fence is 38" in length, with positive stops at 90 and 45 right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a powerful motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
