Clausing Radial Drills

Clausing Radial Drill 62 IN ARM - CL1600H

Standard Features…

• Equipped with hydraulic separate clamping unit. Vertical movement of arm is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting.

• Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear.

• Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation.

• Special automatic tool eject device is supplied to allow you to change tools quickly. (No drifter is required)

Clausing Radial Drill 63 IN ARM - CLC1600H

Standard Features…

• Equipped with hydraulic separate clamping unit. Vertical movement of arm is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting

• Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear

• Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation

• Powerful 5 Hp, 2-speed, heavy-duty spindle drive motor

• Equipped with hydraulic separate clamping unit. Vertical movement of arm is coordinated by an IC timer. With a single touch on push button switch, you can have the arm unclamped then move vertically, or stop then clamp automatically. Very easy to operate, and tools will always stay at the same point after tool shifting

• Gears in gear box are cooled by oil cycled by an oil pump to minimize gear wear

• Powerful 5 Hp, 2-speed, heavy-duty spindle drive motor

• Friction type disc clutch absorbs impact force caused by vertical movement of spindle, and protects all transmission units inside gear box. With quick spindle return, the clutch will help speed-up the tapping operation

• Special arm elevating device is provided to prevent arm from falling down abruptly after years of usage

Clausing Radial Drill 48 IN ARM - CL1230H

Standard Features

• High-quality cast-iron arm with heat-treated and ground slides for smooth and accurate head positioning
• The bearing bracket for gear-box is fitted with standard bearings to fit arm slide for smooth gear-box operation
• High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
• Powerful 3 Hp, 2-speed, heavy-duty spindle drive motor
• Overload protection device
• The main spindle is balanced by an adjustable block
• Coolant system
• Low volt and overload protection

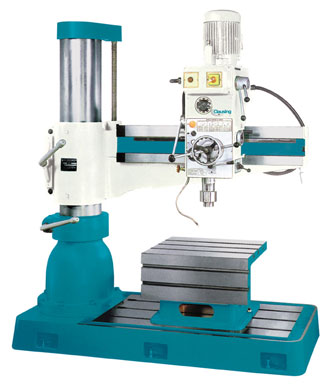

Clausing Radial Drill 43 IN ARM - CL1100

Standard Features…

• High-quality cast iron am with heat treated and ground slides for smooth and accurate head positioning
• The bearing bracket for gear-box is fitted with standard bearings to fit arm slide for smooth gear-box operation
• High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
• Powerful 3 Hp, 2-speed, heavy-duty spindle drive motor
• Overload protection device
• The main spindle is balanced by a specially shaped spring
• Coolant system
• Low volt and overload protection
• Tool kit and manuals
• 230/3/60 volt standard other voltage require a transformer or special order.

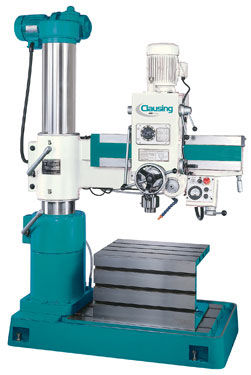

Clausing Radial Drill 37 IN ARM - CL920A

Standard Features…

• High speed gears are made of Nickel-Chrome Steel and are heat-treated and ground for durability
• Powerful 2 Hp spindle drive motor for heavy-duty cutting
• Extra auxiliary dial for spindle feed depth indication, allows review of spindle feed depth, .0394" to 7.874"
• Special spindle balance mechanism, superior to traditional balance mechanism and extends Balance Spring life
• Coolant system
• Low volt and overload protection
• Tool kit and manuals
• 230/3/60 volt standard other voltages require a tranformer or special order
