Drill Presses

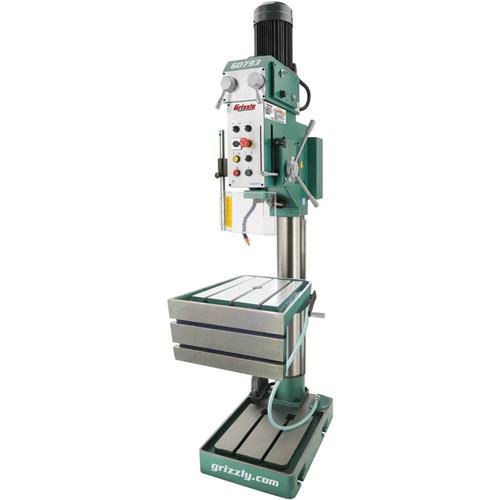

Grizzly Heavy-Duty Drill Press with Auto-Feed, Tapping and L-Table - G0793

Standing 89-1/2" tall, weighing over 1000 lbs., and featuring a 27-1/2" swing, this Heavy-Duty Gearhead Drill Press is built for the most demanding jobs. The massive 6" diameter column provides the necessary rigidity to ensure repeatable accuracy -- even when drilling 1-1/2" diameter holes at high speeds! The MT#4 spindle has 7" of travel, 18 speeds from 60 - 1740 RPM, 2-speed automatic downfeed, power tapping with manual clutch, and a tooling ejection feature for fast bit changes. The cast iron table is nearly 2" thick and features a unique 22" x 19-1/16" L-shaped work surface, five 5/8" T-slots, and coolant drainage troughs. The maximum spindle-to-table distance is 30-3/4", and if that's not enough, the table rotates out of the way so that the workpiece can mount to the precision-ground base table using its two 5/8" T-slots. This colossal workhorse also includes a built-in coolant system to keep metal cool and drilling precise!

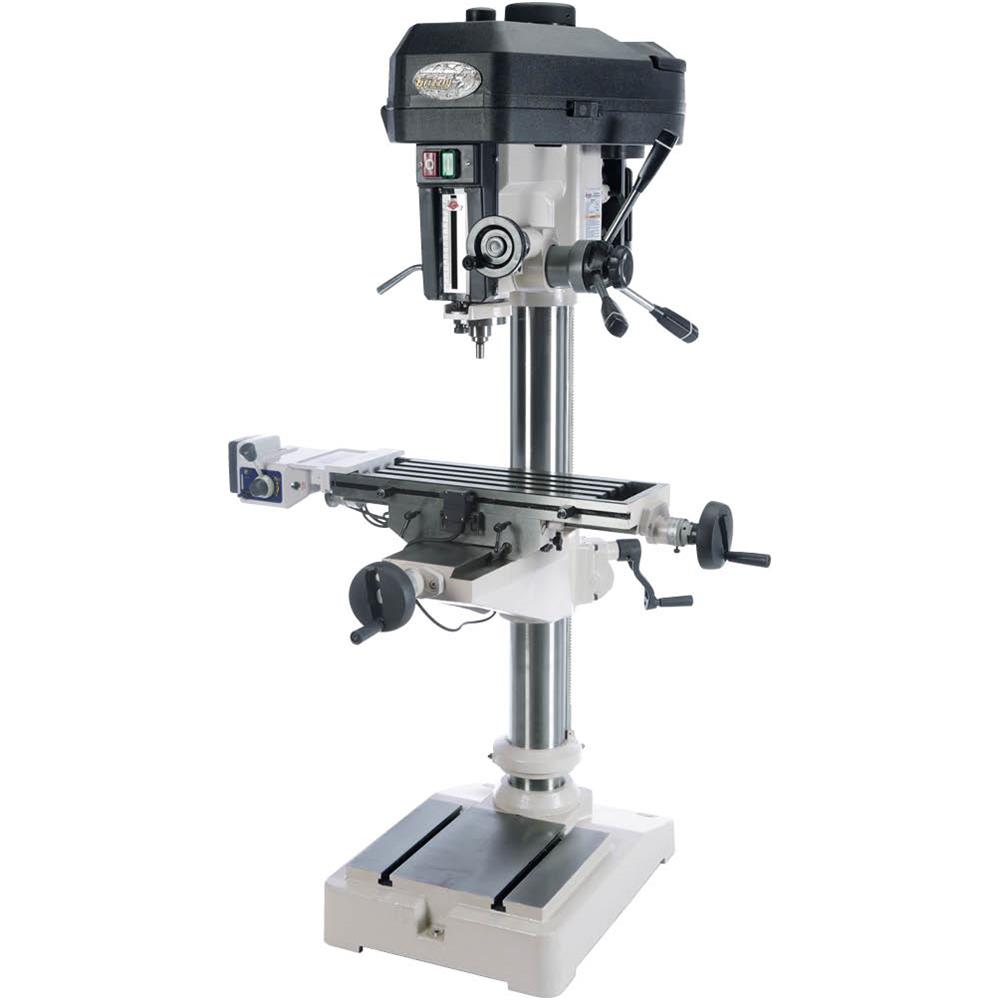

Grizzly 16 Inch Drill Press with Cross-Slide Table and Power Feed - G0810



Precision matters, and if you need to drill holes in a straight line or equally spaced apart, you'll love having a drill press with a built-in X/Y table that is even equipped with graduated dials. Our G0810 16' Drill Press provides easy adjustability with both the X and Y-axis - with 14-7/8' of X-axis travel and 7' of Y-axis travel - and a convenient X-axis power feed. Set the depth stop, and use the coarse downfeed for fast production drilling, or switch over to the fine-downfeed handwheel for precision control up or down along the generous 5-1/8' spindle travel. A good drill press also starts from the ground up, and this one offers the foundation you need with a thick, heavy-cast 26' x 19' base and beefed up 4-1/2' column for rigidity and stability you can count on. You would be hard pressed to find a drill press anywhere else with the functionality or capability of this one at such a great price!

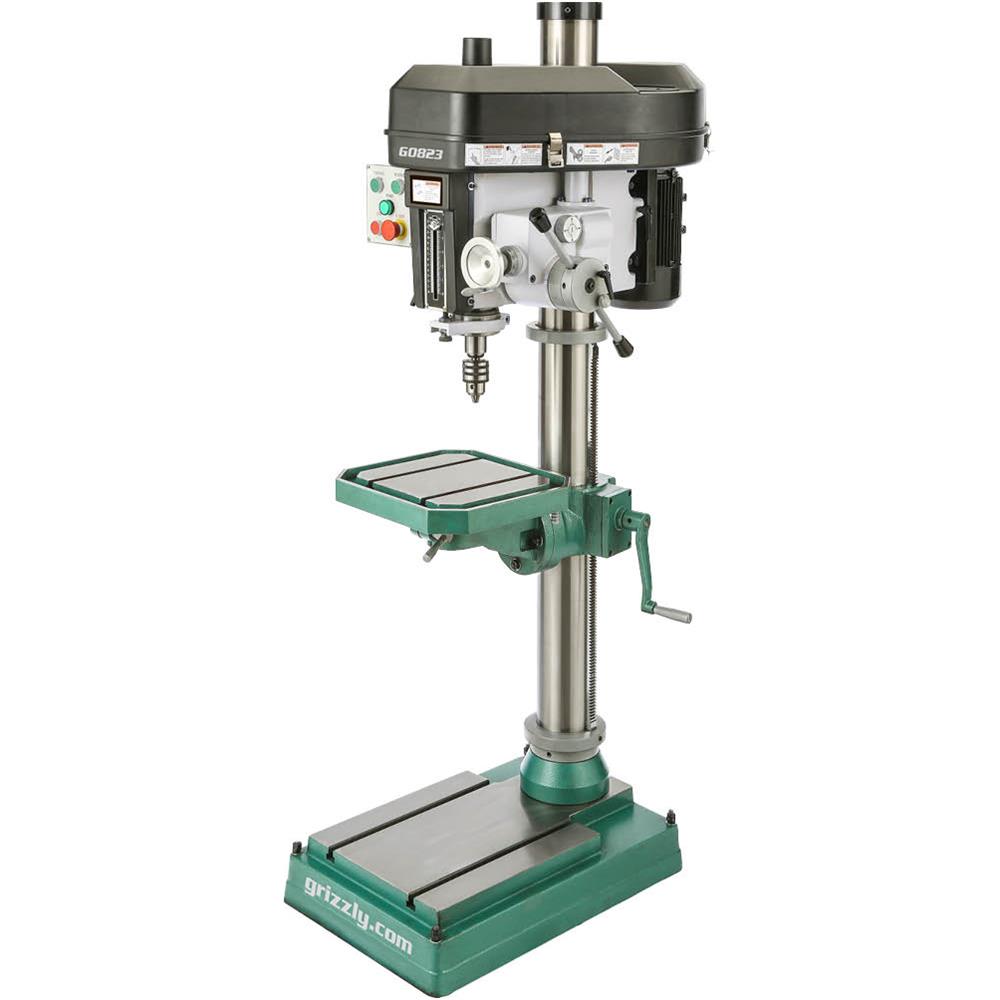

Grizzly Drill Press with Auto Downfeed - G0823



This heavy-duty drill press provides the precision and power your shop needs to tackle the most demanding jobs. Outfitted with a 2 HP motor, 12 speeds (adjustable via V-belts), R-8 spindle taper, 15' of swing, fine downfeed control, and a 14' x 15' precision-ground cast iron table, you can see why we're proud to include this drill press in our lineup. The G0823 also features the luxury of auto downfeed, and the table has rack-and-pinion mounts to allow for 360 of rotation, 60 tilt, 23-1/2' of vertical travel, and two 1/2' T-slots to allow for exact positioning of your workpiece. We've equipped the head with the same rack-and-pinion elevation controls as the table–adjustable 7-13/16' vertically, and capable of 360 rotation around the column. And, to go all out, the precision-ground work surface on the base contains two more 1/2' T-slots, ensuring that every surface can be put to use!
