Drill Presses

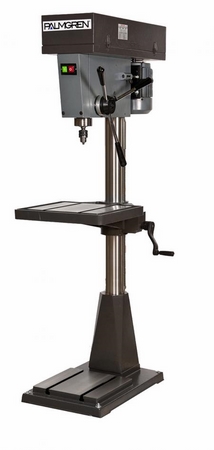

Palmgren 20 in. 12-Speed Floor step pulley drill press - 80329

$2,198.00

Item Number: 9680329

Request a Freight Quote Palmgren’s production duty drill presses are designed and built to handle a wide variety of uses from general purpose drilling to production jobs. Fully enclosed spindle with a maximum runout of .0005" for accurate drilled holes. Rack and pinion table raiser easily positions the workpiece and fixture at proper height. • Cast iron head, table, and base • Rack and pinion table raiser • Spindle depth stop • Front mounted paddle on/off switch • Tilting table • Heavy duty spindle bearings • Drill chuck and arbor.

View details about the Palmgren 20 in. 12-Speed Floor step pulley drill press - 80329

Palmgren 12 in. 16- Speed Bench step pulley drill press - 80150

$710.00

Item Number: 9680150

Request a Freight Quote Palmgren 12 in. 16- Speed Bench step pulley drill press - 80150

Palmgren’s heavy duty 16-speed drill presses are designed and built for drilling a wide array of materials. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces that provide full quill support throughout its travel. A wider range of operation speeds for drilling both large and small holes.

Features:

Fully enclosed spindle for accurate drilling operations
Maximum spindle run out of 0.0005"
Extended quill/spindle travel ideal for deep hole applications
LED readout of spindle speed and quill travel

View details about the Palmgren 12 in. 16- Speed Bench step pulley drill press - 80150

Palmgren Radial Arm - 5 Speed Bench step pulley drill press - 80341

$670.00

Item Number: 9680341

Belt Drive Radial Drill Presses - These versatile general purpose drill presses feature pivoting, multi-angle and multi-positioning of the drill head for drilling at just about any angle. The drill head will drill to the center of a 33" circle and can be used on a wide variety of materials. Durable cast iron head, table & base. Spindle supported by high quality ball bearings. Drill head swivels 360 degrees around the column, tilts 90 degree left and 45 degrees right, and is graduated in 5 degree increments with a positive stop at 0 degrees. Rack and pinion table raiser. Slotted table rotates 360 degrees around the column. Front mounted on/off switch. Drill chuck & key.

View details about the Palmgren Radial Arm - 5 Speed Bench step pulley drill press - 80341

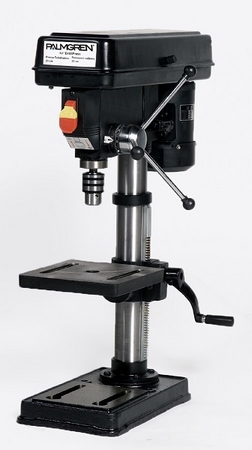

Palmgren 10 in. 5-Speed Bench step pulley drill press - 80110

$334.00

Item Number: 9680110

80110 10” Bench Model Drill Press - Palmgren’s 10” bench model drill press features a heavy cast iron drill head, base and table. The work table height is adjustable using rack and pinion. The table can be tilted 45 degrees to the right or left and rotates 360 degrees around the column. Precision ground slotted work table and base for secure, accurate mounting of fixturing and work pieces. Other features include enclosed ball bearing quill assembly, quick belt tensioning mechanism and front mounted safety paddle switch.

View details about the Palmgren 10 in. 5-Speed Bench step pulley drill press - 80110

Palmgren Drill Press Guard 2-1/8 in. max - 15025

$120.00

Item Number: 9615025

These specially designed drill guards give full protection from quill to drill point by the smooth telescopic action of the guards, which collapse as the drill penetrates the work piece, returning to the extended position when the spindle is raised. These units are made from strong aluminum extrusions and injection molded high impact polycarbonate which offers clear and safe vision through body and visor. In the operating position the guards are securely locked in the closed position by a spring-loaded plunger pin assembly. When released, the guard hinges up, allowing instant access for cutting tool and /or chuck change. All drill guards comply with ANSI and OSHA guidelines. Rapid adjustment for drill length. Fast access for cutting tool changes. Fits quill diameters of 45mm, 52mm, 60mm, 66mm and 75mm.
