Flagler Flanging Machines

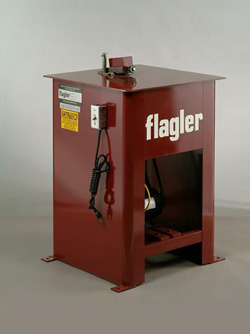

For manufacturing fittings using the button lock seam rather than Pittsburgh 2 step operation, first the flange is formed then the buttons are punched. This machine is built with a heavy duty cast iron gear housing with oil bath and complete with Flange Follower.

• Capacity: 20-26 Ga.
• Height of Flange: 3/8" High
• Speed: Approx. 18 feet per minute.

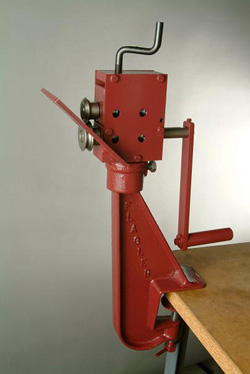

Ideal for small to medium sized sheet metal contractors or jobsite manufacturing. Shown with optional Flanging Attachment and Floor Stand

• Capacity: 18-22 Ga.
• Height of Flange: 1/4"
• Speed: Approx. 18 feet per minute.

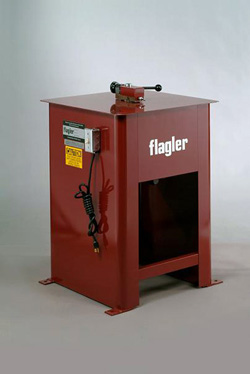

Ideal for larger fitting work. This machine is built with a heavy duty cast iron gear housing with oil bath.



• Capacity: 16-20 Ga.
• Height of Flange: 3/8"
• Speed: Approx. 18 feet per minute.

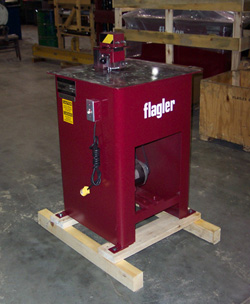

Stand alone flanger to allow shops to free up their flanging attachment on their Pittsburgh machine, complete with flange follower.

• Capacity: 20 Ga. and Lighter
• Height of Flange: 7/32”
• Speed: Approx. 25 feet per minute.
