Vises

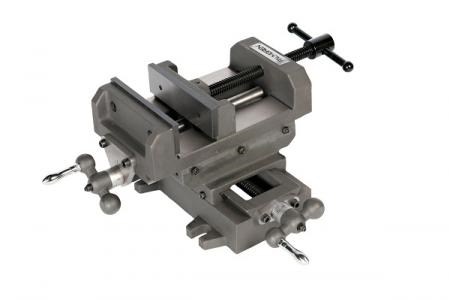

The Palmgren Cross Slide Vise provides quick and precise positioning along the X and Y axes. This gives your drill press movements and positioning similar to the lateral and cross travel of a milling machine. Counter-balanced ball crank handles enable smooth movement and do not extend below the base, eliminating interference with the machine table. Cross feed dials may be easily adjusted to start at zero. Precision machined dovetail ways ensure accuracy with smooth operation of longitudinal and cross travel. Built on the same cross-slide base as our tables, this precision cross slide vise has feed screws with precision cut ACME threads. Cross slide travel is 3-1/2" x 4". Dials are graduated in 0.001" increments. Counter-balanced ball-crank handles are solid steel. By removing two screws, the vise can be removed from the base and used as a conventional drill press vise.

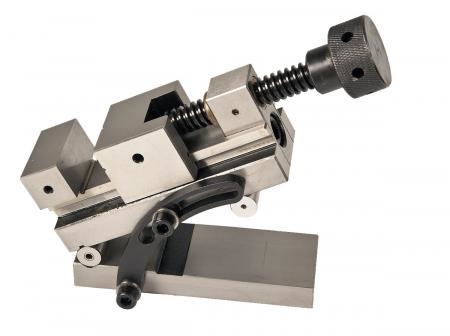

Palmgren's Angle Sine vises are built for ultra precision grinding and inspection applications of small parts. Solid one-piece body, precision ground and heat treated to 55 HRC then tempered to ensure stability and durability. Screw type moveable jaw. Top, sides, and bottom are precision ground square and parallel. Parallelism: 0.0004" and Squareness: 0.0004" Minute angle steps allows very small angles to be set with ease using standard gauge blocks.

These vises are built for ultra precision grinding and inspection applications of small parts. Solid one piece body, precision ground and heat treated to 55 HRC then tempered to ensure stability and durability. Screw type moveable jaw. Top, sides, and bottom are precision ground square and parallel. Parallelism: 0.0001" and Squareness: 0.0002"

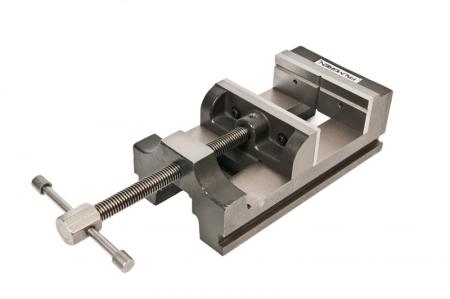

The traditional Palmgren design for drilling, tapping, reaming and grinding. The rectangular shape allows it to be used laying on its base, sides or end for tremendous flexibility. Machined on five sides. The fixed jaw is grooved.

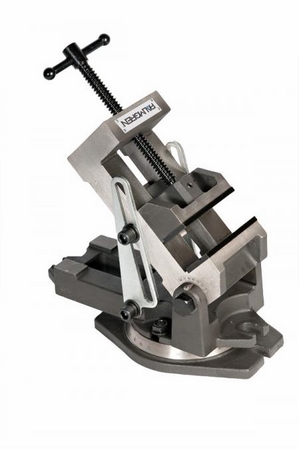

This heavy duty industrial angle vise is exceptionally robust for demanding angular applications. The body is calibrated from 0º to 90º in 5º graduations for precise angle drilling without the use of blocks or wedges. Two knurled socket-head bolts with lock washers on each of two thick side plates allow quick hand-tightening and secure wrench fastening to ensure solid locking in all positions. The fixed jaw is grooved; the removable base swivels 360º (1º graduations) and can be fastened in place with two bolts.

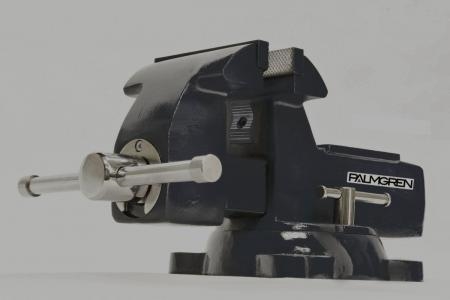

The Palmgren combination bench and pipe vises house a super strong power tunnel with straight-line pull that assures a lifetime spindle and nut. A precision fit of the slide bar eliminates side play and jaw wobble, even when clamping with the jaws wide open. Vise spindle and nut are completely enclosed in a square tube casting to protect them from dust, chips, and moisture. 60,000 psi ductile alloy stress parts - practically indestructible & 70% stronger than u-shaped styles. Vises have the throat depth to meat toughest job requirements. Reinforced anvils to handle addition non-clamping applications. Swivel base, dual lock downs, and 4 point mounting holes deliver secure clamping. Vises are ideal for maintenance applications, tool and die shops, fabrication shops, automotive garages, tradesmen, and construction sites. Vises can be used for indoor and outdoor applications. STANDARD DESIGN FEATURES: 60,000 PSI ductile castings; Sealed construction; Straight line pull; Replaceable serrated steel jaws; Replaceable pipe jaws; Large anvil; 360 degree swivel base with dual lock downs; Lifetime warranty.

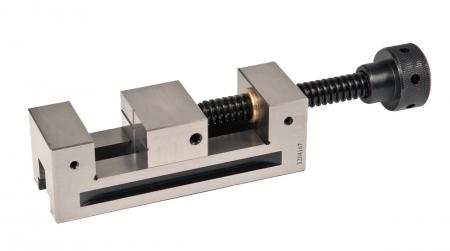

Precision ground for squareness and parallelism to +.0002 per inch. This vise is machined and ground on five sides to assure accurate positioning for grinding and layout operations. Adjusting screws are steel with long bearing in the vise body. Both jaws are ground smooth

Palmgren's Angle Sine vises are built for ultra precision grinding and inspection applications of small parts. Solid one-piece body, precision ground and heat treated to 55 HRC then tempered to ensure stability and durability. Screw type moveable jaw. Top, sides, and bottom are precision ground square and parallel. Parallelism: 0.0004" and Squareness: 0.0004" Minute angle steps allows very small angles to be set with ease using standard gauge blocks.

The Palmgren cross slide vise provides quick and precise positioning along the X and Y axes. This gives your drill press movement and positioning similar to the lateral and cross travel of a milling machine. Counter-balanced ball crank handles enable smooth movement and do not extend below the base, eliminating interference with the machine table. Cross feed dials may be easily adjusted to start at zero. Precision machined dovetail ways ensure accuracy with smooth operation of longitudinal and cross travel. This industrial cross slide vise has ball crank handles that spin independently of the crank ball for rapid movement. Index collars are graduated in 1mm increments.

The Palmgren combination bench and pipe vises house a super strong power tunnel with straight-line pull that assures a lifetime spindle and nut. A precision fit of the slide bar eliminates side play and jaw wobble, even when clamping with the jaws wide open. Vise spindle and nut are completely enclosed in a square tube casting to protect them from dust, chips, and moisture. 60,000 psi ductile alloy stress parts - practically indestructible & 70% stronger than u-shaped styles. Vises have the throat depth to meat toughest job requirements. Reinforced anvils to handle addition non-clamping applications. Swivel base, dual lock downs, and 4 point mounting holes deliver secure clamping. Vises are ideal for maintenance applications, tool and die shops, fabrication shops, automotive garages, tradesmen, and construction sites. Vises can be used for indoor and outdoor applications. STANDARD DESIGN FEATURES: 60,000 PSI ductile castings; Sealed construction; Straight line pull; Replaceable serrated steel jaws; Replaceable pipe jaws; Large anvil; 360 degree swivel base with dual lock downs; Lifetime warranty.

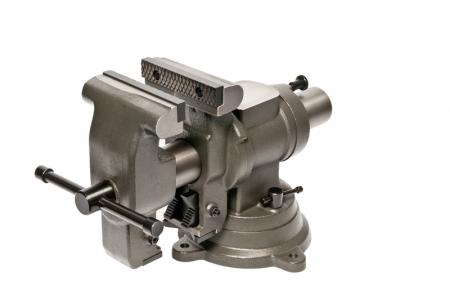

Palmgren offers the most versatile vise you will ever own. This Bench Vise comes with three sets of replaceable, hardened steel jaws for holding flat or round stock. The head and base rotate a full 360º for highly versatile positioning. Eight locking pin stops hold the rotating head in a desired position during set-up. This unique vise also includes a built-in anvil and bolt lugs in the base for secure mounting.
