Heavy Duty Roll Benders

Baileigh 12-3/4 Inch Schedule 40 Double Pinch Mandrel Roll Bender R-H400

$809,309.00

Item Number: R-H400

Request a Freight Quote This large and robust machine includes a ridged and stress relieved frame for the highest in accuracy and longevity. Unlike the competition, Baileigh Industrial includes hydraulic Lateral Guide rolls STANDARD with each machine. Our R-H400 is operated in the Horizontal position for maximum control of large I-Beam bending and includes Three Driven rolls by means of High Torque Planetary Gearbox joined with Three Hydraulic motors.

View details about the Baileigh 12-3/4 Inch Schedule 40 Double Pinch Mandrel Roll Bender R-H400

Baileigh 8 Inch Schedule 40 Roll Bender R-H250

$248,789.00

Item Number: R-H250

For applications bending over 8" round tube the search is now over. Baileigh Industrial presents the R-H250 Roll Bending machine. This Double Pinch unit allows the operator to adjust both left and right bending rolls independently to minimize straight lengths at both beginning and end of each part. The digital Read-outs will give measurements of both length of material as well as the left and right bending position. This helps with recording each roll position for quick referencing when making multiples of the same part.

View details about the Baileigh 8 Inch Schedule 40 Roll Bender R-H250

Baileigh 6 Inch Schedule 40 Roll Bender R-H170

$181,309.00

Item Number: R-H170

Request a Freight Quote Our first step into fully horizontal operated machines. The R-H170 is a force not to be reckoned with. This machine has the capacity of bending up to 6" schedule 40 mild steel pipe. With independently controlled lateral guide rolls and lower bending rolls this machine offers flexibility you will only find in a Baileigh Industrial machine. The R-H170 provides digital read outs at the user’s fingertips for every controlled element of the machine which makes the programming of single radius bends virtually effortless.

View details about the Baileigh 6 Inch Schedule 40 Roll Bender R-H170

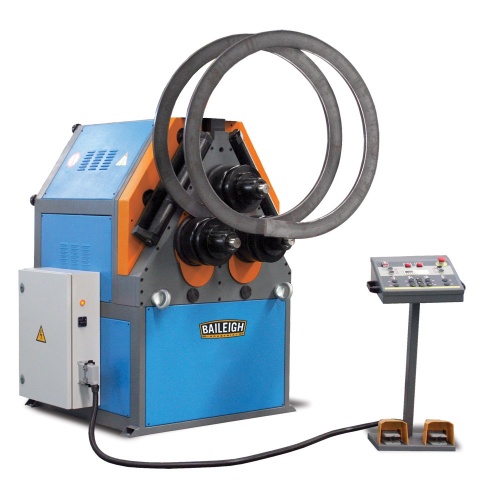

Baileigh Industrial R-H85E Double Pinch Roll Bender

$35,029.00

Item Number: R-H85E

Baileigh Industrial R-H85E Double Pinch Roll Bender

This hydraulic double-pinch ring roller reduces material waste and cuts down on bend time.

Runs on 220-volts 3-phase power.
Bends up to 3 schedule 40 pipe and 3.375” x 3.375” x .25" angle iron.
All 3 rolls, 1 fixed top roll and 2 bottom rolls, driven by industrial-grade hydraulic transmission with independent hydraulic cylinders.
Digital readout programmers let you monitor the exact encoder-specified positions of each roll.
You can easily input programmable stops or adjust roll positions from the movable podium control.
