Power-Assisted Slip Rolls

Baileigh Industrial Plate Bending Machine PR-10500-4CNC

The PR-10500-4CNC 4 roll plate bending machine is the ultimate in production plate rolling. It has the same bones as its sister models the PR-10500-4 and PR-10500-4NC but incorporates a CNC touchscreen controller that has been specially designed for Baileigh Industrial plate rolls. When designing a CNC for a bending machine, you will encounter considerable challenges, the main one is the tolerance of the yield point of the various materials that are bent: lots of material nominally "identical" to each other, often present results bending quite different.

Baileigh Industrial Plate Forming Roll PR-10100-4V

When you need to bend 1” thick steel plate to a perfect cylinder, then look no further than the PR-101000-4 plate forming roll from Baileigh Industrial. This industrial production machine is built using only the best components and is designed to last years in any environment. The beat is powered by a 20hp hydraulic motor that runs on 480volt three phase power.

Four roll plate rolls like the PR-101000-4 have many advantages over the conventional three roll machines when doing precision work.

Baileigh Industrial Plate Bending Machine PR-10500-4NC

PR-10500-4NC numerically controlled four roll plate bending machine is the next step in production plate rolling. This 10 foot ½” mild steel machine features a new and evolved numerical control with the following features. This new easy to use touch screen controller has the ability to control three bending axis (X Y Z), two side supports, central support, and the pinching action. It can also store 300 programs with 99 steps each; this is great for those odd shaped jobs that come about.

Baileigh Industrial Four Roll Plate Bending Machine PR-10500-4

The PR-10500-4 four roll plate bending machine has been refined over the years through extensive research and development and is considered one of the finest plate rolling machines available in the market. A 4 roll machine is the easiest, quickest, rolling machine to operate thanks to its ability to pinch the plate between the 2 central driven rolls, pre-bend the leading edge, and rolling the body of the part along with the trailing edge all in one direction and in one pass. There is no chance to lose the position of the plate due to being pinched at all times during the rolling cycle.

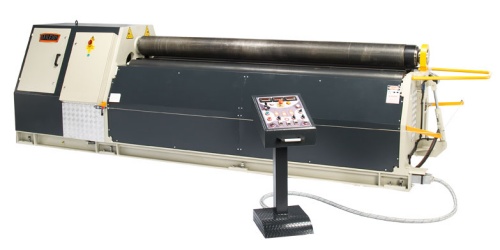

Baileigh Industrial Hydraulic Plate Roll PR-1003-4

The PR-1003-4 hydraulic plate roll would be the perfect for any industrial fabrication shop or sheet metal shop that has a need to roll ¼” mild steel in 10 foot widths.

The PR-1003-4 hydraulic plate roll uses a planetary gearbox connected to a robust 7hp motor to drive the top and bottom rolls at a solid 16 feet per minute. Baileigh Industrial uses direct linear piston movement for the lateral or forming rolls is standard for even more forming power. Other plate rolls use orbital movement for the lateral rolls which limits how tight the ring can get; the direct movement feature allows the operator to form tighter diameters with less work. The PR-1003-4 four roll plate roll plate roll uses an industrial 2hp hydraulic motor to move the lateral rolls.

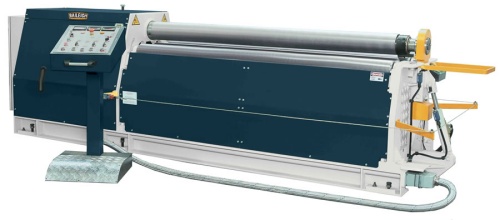

Baileigh Industrial Four Roll Plate Roll PR-603-4

The PR-603-4 four roll plate roll would be a great addition to any fabrication shop or sheet metal shop that has a need to roll ¼” mild steel in 6 foot lengths.

The PR-603-4 plate roll uses a planetary gearbox connected to a robust 4hp motor to drive the top and bottom rolls at a solid 16 feet per minute. For even more forming power Baileigh Industrial uses direct linear piston movement for the lateral or forming rolls. Unlike other plate rolls that use orbital movement for the lateral rolls, the direct movement feature allows the operator to form tighter diameters with less work. The PR-603-4 plate roll uses an industrial 1.5 hp hydraulic motor to move the lateral rolls.
