Hydraulic Roll Benders

Baileigh Industrial Hydraulic Roll Bender R-H150

The programmable double-pinch design of this tube roller lets you make repeatable bends and complex parts with ease.

• 3 driven rolls run on 220-volt 3-phase power.
• Rolls up to 6.25” round tube and 4.75” x 4.75” x 0.5” angle iron.
• Hydraulic cylinders connected to 2 bottom rolls accomplish pre and post-bending to cut down on material waste.
• Digital readout displays positions of bottom rolls.
• You can program stops for each shaft for precise results.

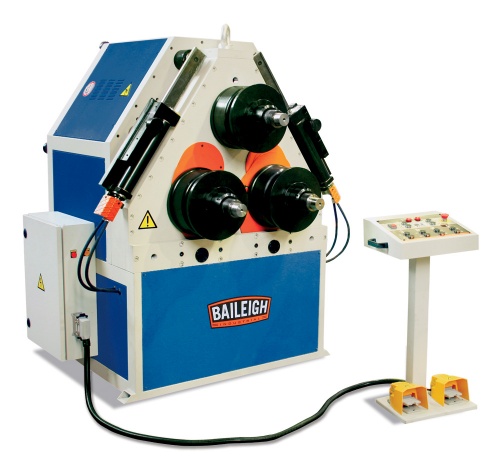

Baileigh Industrial Hydraulic Roll Bender R-H120

This ring roller offers one of the best double-pinch designs on the market for production runs, built from highest quality components with an electro-welded steel plate framework.

• Runs on 220-volt 3-phase power.
• Maximum capacity of 5.5" round tube and 4.5” schedule 40 pipe.
• Double-pinch system with 1 fixed top roll and 2 bottom rolls for forming, rotated by independent hydraulic cylinders.
• Hydraulically-driven lateral roll guides and guide rolls come standard to assist with coiling and twisting.
• Movable operator podium console houses all control buttons and includes attached foot pedals for forward and reverse directions.

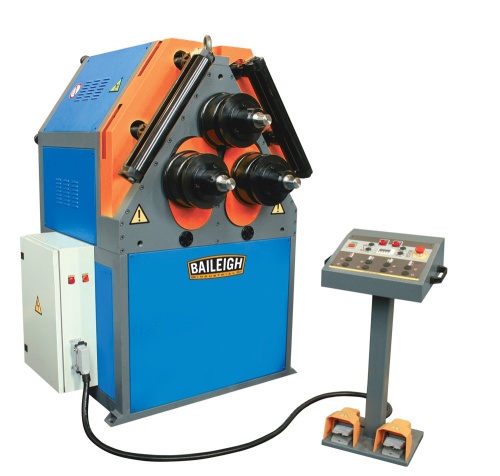

Baileigh Industrial R-H120E Double Pinch Roll Bender

Our R-H120E hydraulic tubing roller costs less than our R-H120 ring roller but offers many of the same time-saving features.

• Runs on 220-volt 3-phase power.
• 3 driven rolls, made of hardened segmented steel, can tackle a capacity of up to 5.5 round tube and 4.5 schedule 40 pipe.
• 2 independent hydraulic cylinders connected to bottom rolls accomplish pre- and post-bending for tighter rolling.
• You can manually adjust the lateral angle guides to ensure correct bend angle and prevent material from twisting.
• Movable operator control podium includes digital readout for the roll positions with a programmable stop.

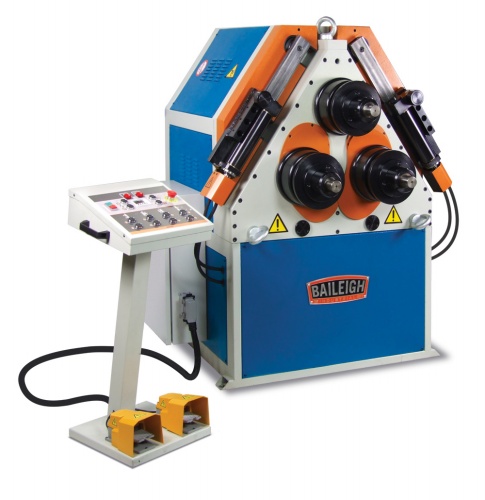

Baileigh Industrial Hydraulic Roll Bender R-H85

Losing too much money on scrap metal? Hone your shop’s efficiency and reduce waste with this fast and accurate double-pinch ring roller.

• Runs on 220-volt 3-phase power.
• Bends up to 4" round tube, 3 schedule 40 pipe, and 3.375” x 3.375” x .25” angle iron.
• 3 rolls driven by industrial-grade hydraulic transmission.
• Double-pinch design consists of 1 fixed top roll plus 2 bottom rolls moved by independent hydraulic cylinders.
• Hydraulic encoders communicate exact roll positioning to integrated digital readout programmers, making repeatability a cinch.

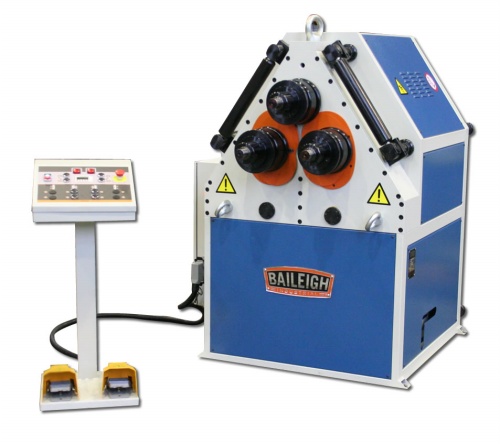

Baileigh Industrial Hydraulic Roll Bender R-H65

This hydraulic roll bender offers the speed and strength of a double-pinch ring roller without the high cost of a CNC model.

• Runs on 220-volt 3-phase power.
• Maximum capacity of 2 schedule 40 pipe.
• Double-pinch bending rolls with 1 fixed top roll and 2 bottom rolls operate on independently-controlled hydraulic cylinders.
• You can input bend patterns from the convenient programmable controller podium.
• Foot pedals let you run the roller forward or in reverse.
• Hydraulic encoders communicate the exact position of each roll.

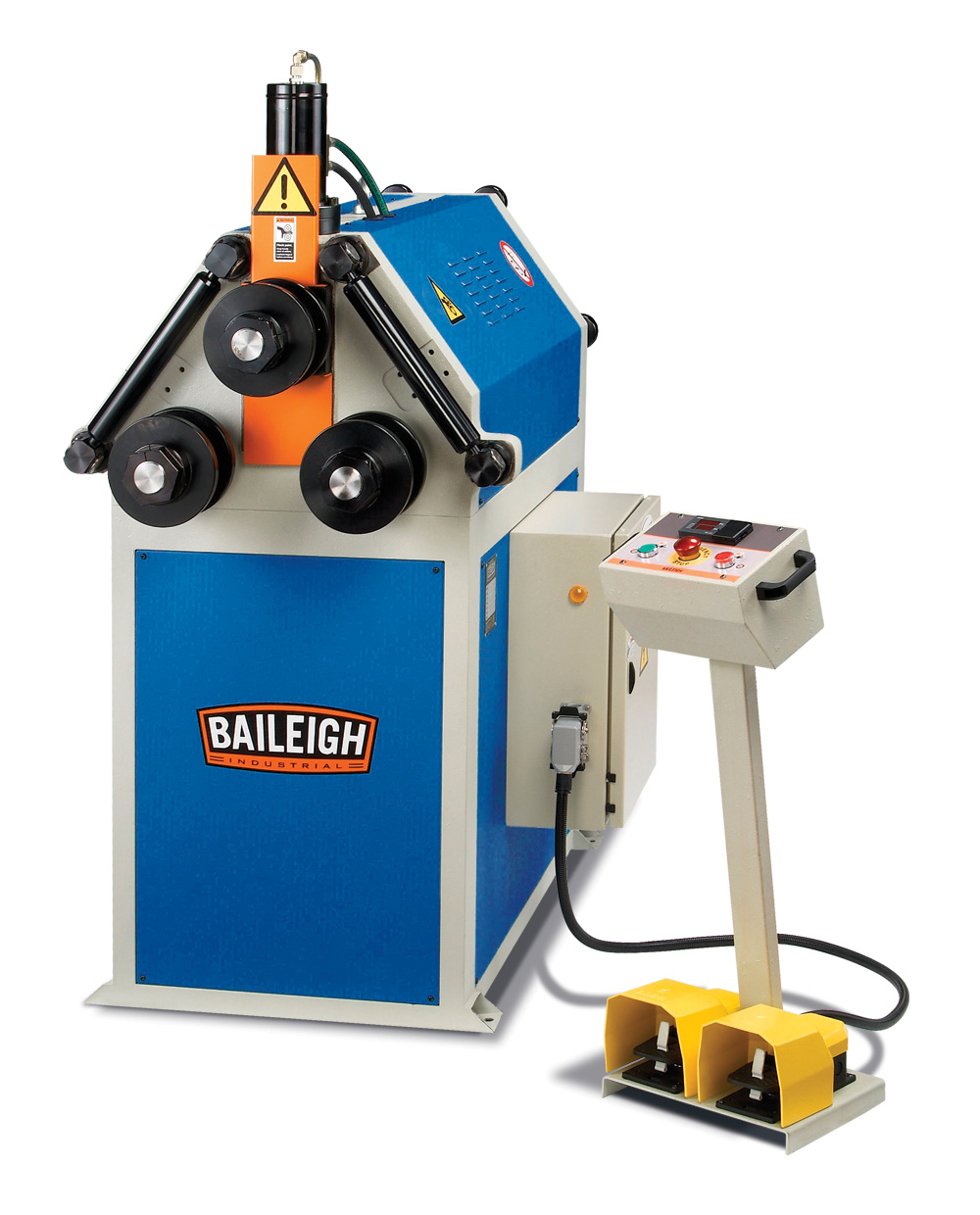

Baileigh Hydraulic Angle Roller R-H55


You can operate this programmable ring roller on its back for horizontal bending of large radii or in the vertical position for smaller diameters.

• This angle ring roller runs on 220-volt 3-phase power.
• Bend up to 4” round tubing with a .083 wall.
• 3 rolls driven by 5 HP motor with direct-drive transmission.
• Industrial-grade hydraulic cylinder system lets you adjust the positioning of top forming roll with the programmable control station.

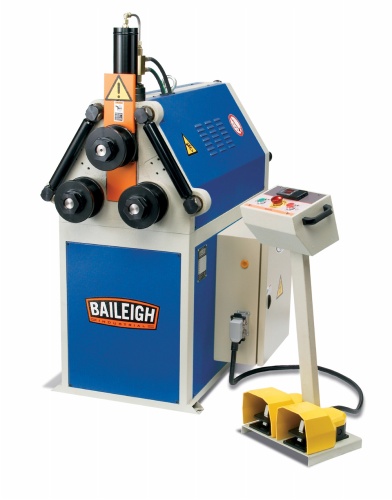

Baileigh Industrial Hydraulic Roll Bender R-H45

The R-H45 hydraulic ring roller won’t flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs.

• Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
• Bends up to 2” square x .120 wall tubing and 2” schedule 40 pipe, among other materials.
• All 3 rolls turn on industrial motor and transmission.
• Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.

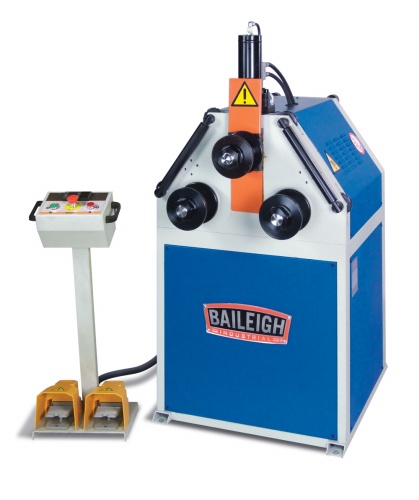

Baileigh Industrial Profile Bender R-M55H

This hardworking ring roller adds an industrial-grade hydraulic system to the many tried-and-true features from our landmark R-M55.

• Runs on 220-volt single-phase power.
• Bends a maximum capacity of 2.75" round tube and 2 schedule 40 pipe.
• Works with 3 rolls: 1 top forming roll and 2 driven bottom rolls.
• You can operate the R-M55H in 2 positions: vertical, for small rolling projects, and horizontal (on its back) for longer sections of material.
• Independent, easily-movable control pedestal lets you adjust the top roll’s positioning and program stops.

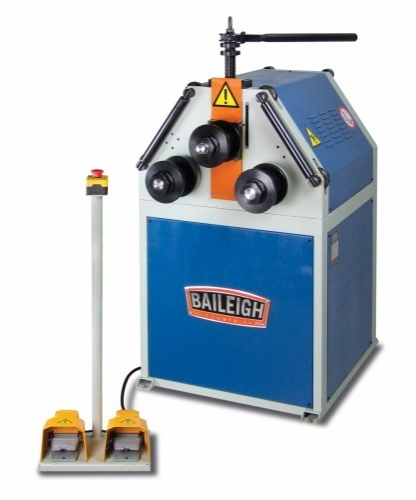

Baileigh Industrial Ring Roller R-M55

When we introduced the R-M55, it redefined quality in roll benders. This tube roller combines efficiency-boosting features with the rugged strength of a steel plate framework.

• Requires just 220 volts of single-phase power and will work in any fabrication shop or even out on job sites.
• Maximum capacity of 2.75" round tubing and 2” schedule 40 pipe.
• Manual top-shaft machine with 2 driven rolls (3 rolls total).
• Large ratchet offers extra leverage for manual control of top roll position.
