Mortisers

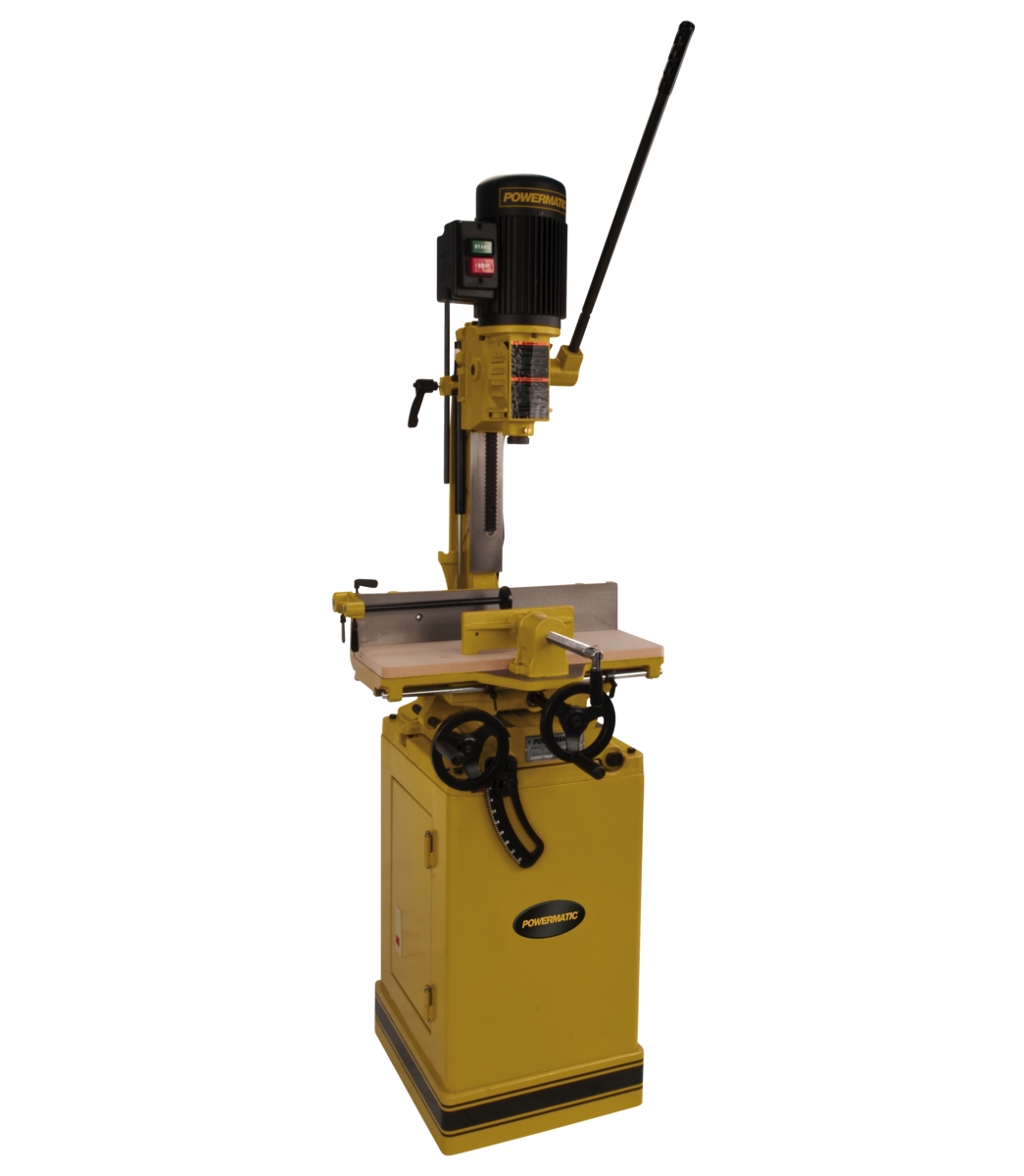

Powermatic 719T Mortiser 1HP 1PH 115/230V - 1791264K

The 719T Tilt Table Mortiser features heavy-duty cast iron construction and a powerful 1HP motor for the most demanding jobs. The head is mounted using adjustable gibs to assure years of trouble-free service. The heavy rack and pinion gear system utilizes a spring-loaded six position adjustable handle for movement. A handy depth stop gives a uniform depth of mortise. A large 20-1/4" x 7" table gives plenty of work support and will adjust to any angle between 0 and 35. The table can also move left to right and forward and back on dovetail ways with the large handwheel controls.

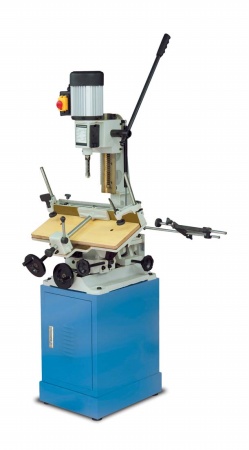

The MC-1000TT tilting mortising machine from Baileigh Industrial is essentially the same machine as the MC-1000 but with a unique tilting table and column. This is great for those hard to reach areas and angles that pop up from time to time. This feature is great for professional shops and schools. The MC-1000TT has many features that are not included on other machines in its class and is run on 110 volts and has a chisel capacity of 1/4” to 1”. The 1 hp motor produces 1750 rpm to help achieve a maximum depth of 3”.

Sometimes you just need to drill a square hole and the only good way to do it is with a mortising machine. The MC-1000 free standing mortising machine is a perfect choice for woodworking shops or educational facilities. It has many features that are not included on other machines in its class. The MC-1000 is run on 110 volts and has a chisel capacity of ¼” to 1”. The 1 hp motor produces 1750 rpm to help achieve a maximum depth of 3”.

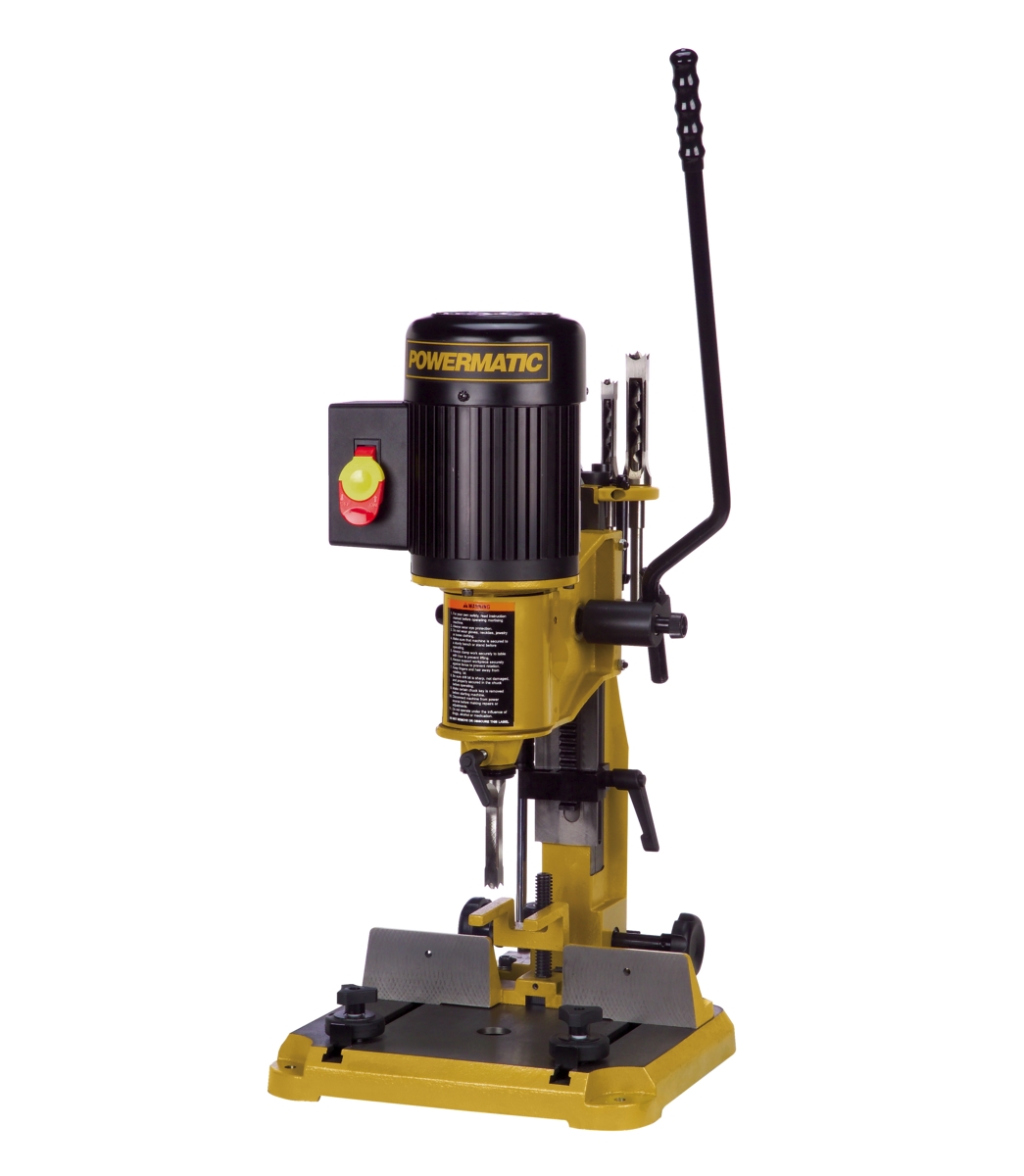

Powermatic PM701 Mortiser 3/4HP 1PH 115/230V - 1791310

The PM701 Benchtop Mortiser features an in-line depth stop which allows the user to stop at preset depths without racking the mortiser bit to the base. Its heavy-duty reversible handle is so versatile that it can be changed from one side to the other quickly and easily and requires no tools to do so. The stock hold down features a specially designed double lock system. One locks from the side, the other locks from the top, to completely eliminate any slippage when removing the chisel from the work piece. This hold-down is also reversible to allow stock from 0 to 5" thick to be captured underneath it. The new POWERMATIC 701 Benchtop Mortiser has a quick-action cam lock that will quickly lock the fence into position with one 90° movement. This lock also features lock nuts, so once set they will not have to be continually adjusted. Set-up has never been easier or more precise.

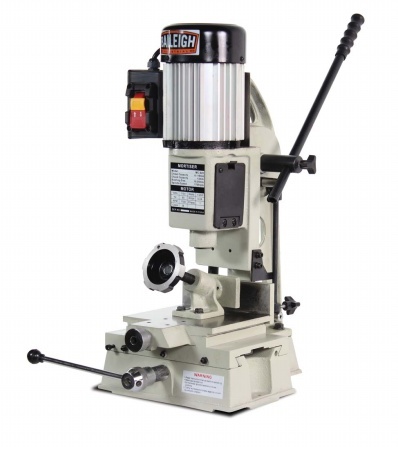

The MC-625 bench top mortise from Baileigh Industrial is a great choice for the home shop looking for its first square chisel machine. It has many great features for the economical price. A wide stable base helps keep material in alignment while chiseling out material. The spindle turns at 1750 rpm and runs on 110 volts, more than enough to get to the maximum chisel size of 5/8”.
