Hydraulic Pipe Benders

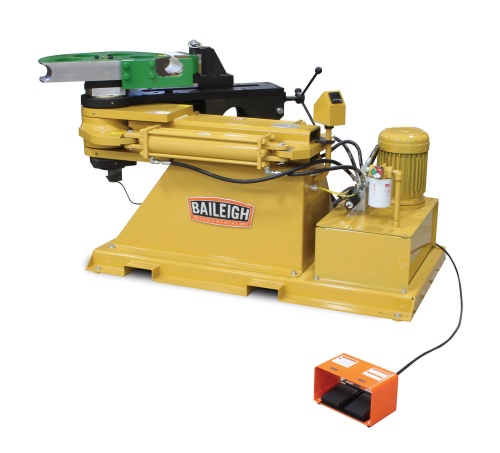

If you need to bend big pipe—and we mean really big pipe —then this is the industrial hydraulic rotary draw bender for you.

• Industrial-grade, low-pressure hydraulic system runs on 220-volt 3-phase power.
• Handles a maximum capacity of 3” schedule 40 pipe, 3” square, and 3.5” round tube (.188 wall mild steel).
• Maximum centerline radius of 20”, depending on wall thickness and material.
• Bends pipe up to 206° in a single shot, without stopping or ratcheting.

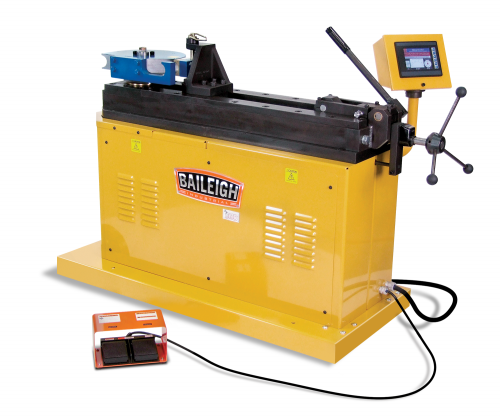

Baileigh Industrial Programmable Tube Bender RDB-350-TS

This tubing bender will stand up to the rigors of any shop—and save you time. The RDB-350-TS bends 180° in 16 seconds. And its quick-release die system speeds up production.

• Proudly engineered and made in the USA.
• Capacity of 2.5” schedule 40 pipe and 3” tube with .187” wall thickness.
• 24” centerline radius maximum.
• Bends to 360° in one shot, both left and right.
• You can program the desired angle, material springback, and bend speed for easy repeatability.
• Programmer can also keep track of rotational orientation.
• Touchscreen controller designed for user-friendly programming.

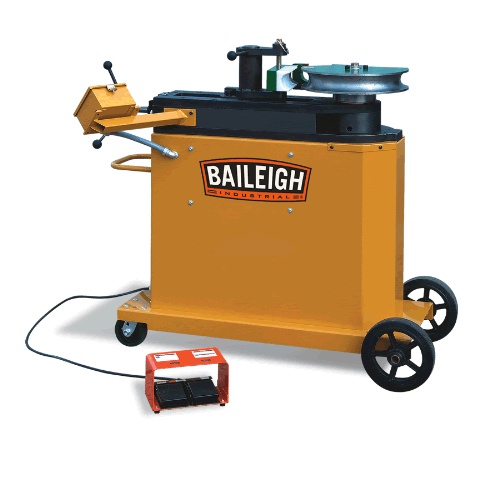

Baileigh Industrial Programmable Pipe Bender RDB-325

Need to put more muscle in your shop? The RDB-325 pipe bender might just be your answer, has a massive capacity of 2" Schedule 80 pipe (Mild Steel T.S. 64,000 PSI) and 3 "round tubing with a 16.5” maximum center lines depending on material OD. Tooling for the RDB-325 is the same high quality tooling that entire line of Baileigh Industrial top loading tube benders use and with over 5000 die sets available, there will be one for your application.

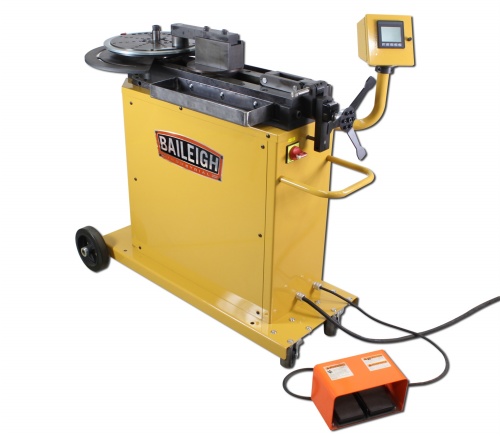

Baileigh Industrial MPB-275 Universal Bender

The MPB-275 high speed universal bender is truly a do it all machine when it comes to draw bending metal. This multi purpose machine hase the ability to do tight hook bending, scrolling, and even some rotary draw bending up to 1-1/4" schedule 40 pipe.

Take a look at the impressive list of features

• MAX ROTATION 9999 DEGREES BI DIRECTIONAL
• 5 SECOND 180 DEGREE BEND SPEED
• 6 RPM OUTPUT MAX
• 1.25 SCH 40 PIPE CAPACITY

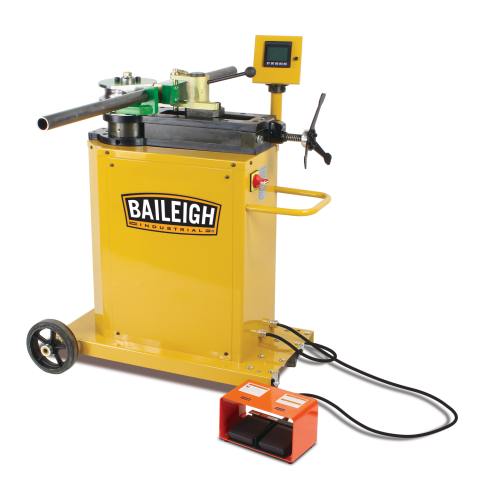

Baileigh Industrial 220V 1-phase power Tube Bender RDB-250

This compact, programmable tube bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-250 will revolutionize the efficiency of your fabrication shop.

• Runs on 220 volt single-phase power.
• Tackles heavy-duty materials, bending up to 2.5” tubing and 2” schedule 40 pipe.
• Rotary draw bender smoothly executes 180° bends in just 9 seconds and can complete up to 360° bends.
• Stores up to 170 programs of 10 bends each in its internal memory and accepts limitless external memory.

Baileigh Industrial Tube Bender - RDB-175

Made in the USA, this hydraulic rotary draw bender improves on our breakthrough RDB-150 with patented* additional features to streamline your bending jobs.

• Maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel.
• Rotary draw executes 180° bends in a smooth single motion.
• Bends almost 300% faster than the RDB-150, making quick work of round tube, pipe, and square tubing.
• Auto-stop programming lets you achieve the desired bend angle without worrying about accuracy.

Baileigh Pipe Bender RDB-150-AS

In 2002, Baileigh broke new ground for hydraulic benders with the RDB-150—and we didn’t stop there! Made in the USA, this model improves on the original with an added auto-stop feature, for even more exacting standards.

• Powerful low-pressure hydraulic system operates on only 110 volts.
• Tackles a maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel.
• Executes consistent 180° bends in one fluid motion.

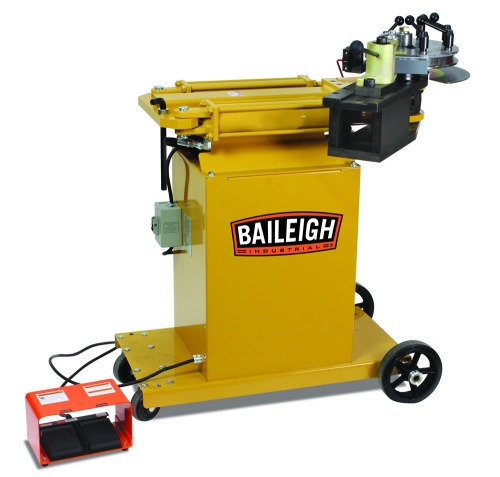

Baileigh Hydraulic Tube Bender - RDB-150

This American-made machine set a new standard in 2002 as the first hydraulic tube bender to bend tube and pipe 180° in one shot. Now we have thousands of RDB-150s in the field—working as well today as they did the day they were made.

• Runs on just 110 volts of power and will work at most fabrication sites in North America.
• Rotary draw powered by low-pressure, industrial-grade hydraulic system.
• 8” centerline radius maximum, depending on the outside diameter of the material.
• Bends with a capacity of 2" schedule 40 pipe and up to 2.5" tubing with a wall thickness of .120" mild steel.
• Easy-to-read degree indicator and adjustable stop to help you achieve correct bend degrees.

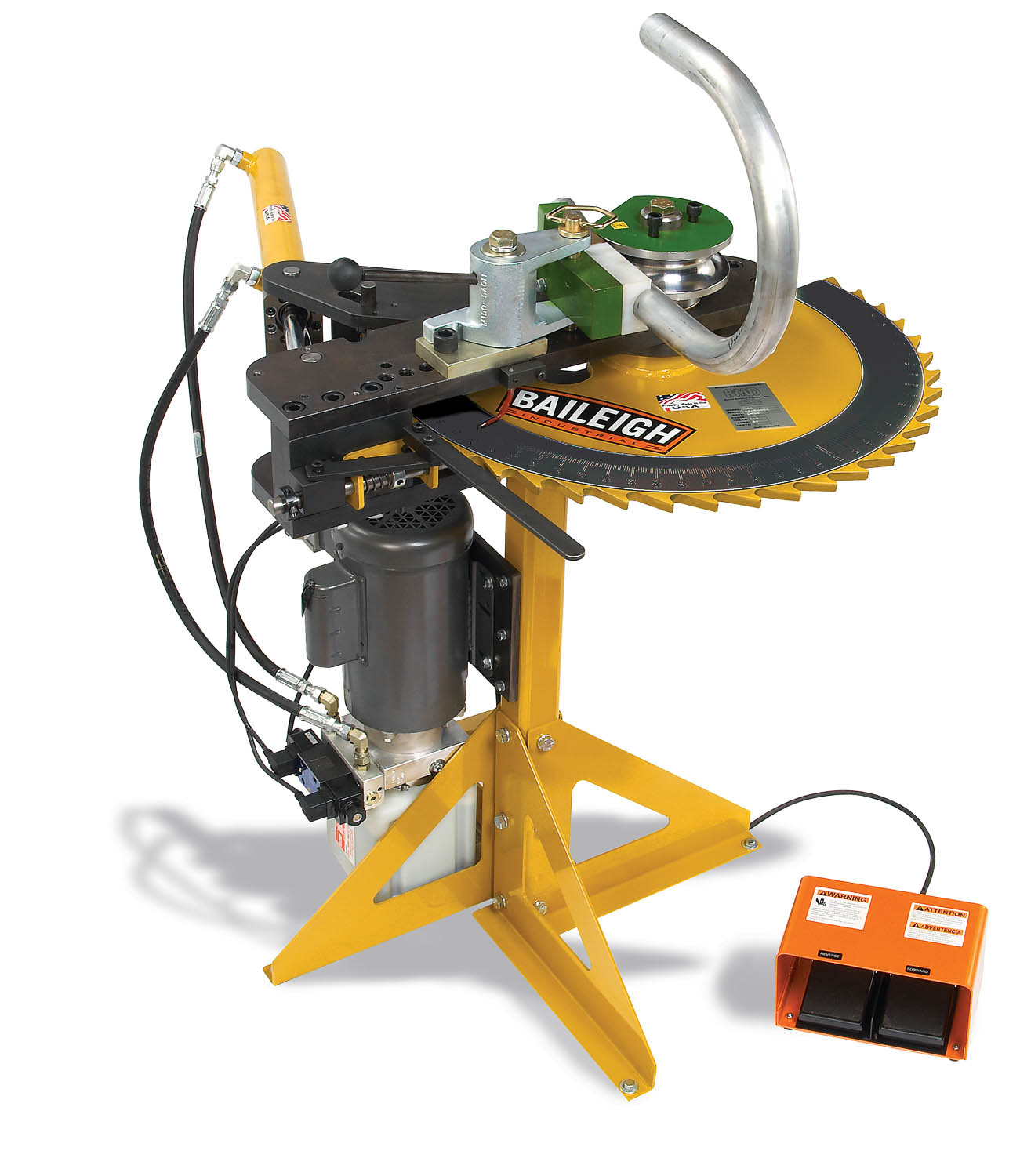

Baileigh Industrial Rotary Draw Bender - RDB-125


Tired of your exhausting manual bender? This hydraulic rotary draw bender will increase your productivity.

• Requires only 110-volt, single-phase power for easy plug-in almost anywhere.
• Handles a maximum capacity of 2.5” OD tubing, 2” OD Chromalloy, 2” square tubing, and 2” schedule 40 pipe.
• Maximum centerline of 8”, depending on material’s OD.
