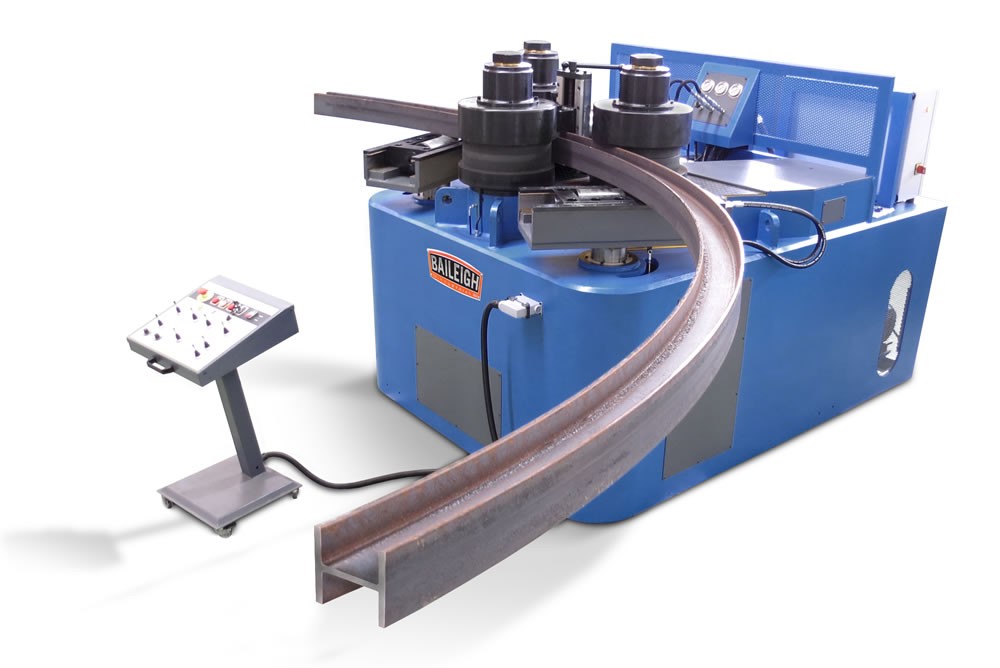

Our first step into fully horizontal operated machines. The R-H170 is a force not to be reckoned with. This machine has the capacity of bending up to 6" schedule 40 mild steel pipe. With independently controlled lateral guide rolls and lower bending rolls this machine offers flexibility you will only find in a Baileigh Industrial machine. The R-H170 provides digital read outs at the user’s fingertips for every controlled element of the machine which makes the programming of single radius bends virtually effortless. This unit is constructed with the highest grade solid steel frame and is only available through Baileigh Industrial. With an upper shaft diameter just under 7.5” why settle for anything less. We here at Baileigh Industrial never sacrifice Quality for pricing and each unit is manufactured using the highest grade components on the market. We offer completely engineered solutions from the smallest metal cutting saw to fully integrated CNC turnkey packages. If there is a need in your shop please call us today to see what we can do to meet it. Our knowledgeable sales staff is standing by to take your call.
- Roll Adjustment: Hydraulic
- Pipe CapacitySize: 6" (sch. 40) / Min. Dia.: 98"
- Square Tube Capacity:Size: 4.7" (.315")
- Solid Round Capacity:Size: 4" / Min. Dia. 40"
- Flat Bar Easy WaySize: 9.75" (1.5") / Min. Dia. 40"
- Flat Bar Hard WaySize: 5.875" (1.375")/ Min. Dia.: 40"
- Lower Shaft Dia.:6.69"
- Upper Shaft Dia.:7.48"
- Control:DRO
- Motor:28 hp
- Pinch:Double
- Power:220V 3- phase
- Shipping Weight:9.5 tons
- Dimensions L x W x H94.5" x 146" x 69"
Request a Quote Today!
This item requires additional attention to provide you with the most competitive delivered price. We welcome you to request a quote by adding the item to your cart and proceeding through the checkout steps. When prompted for payment information, simply select ‘Quote Request’ and continue on. A specialist will be notified and contact you straight away with a complete quote!
