Baileigh Manual Roll Bender R-M10

Item Number: R-M10 Brand: Baileigh Industrial
$2,339.00

Free Shipping!The R-M10 has been a staple in the Baileigh Industrial’s line since it was first introduced in 2004. This manually powered roll bender is capable of rolling full circles because of its open face design. The R-M10 can do anything that the larger models of roll benders can. The only difference is that The R-M10 is manually powered, but it does have a reduction gearbox to assist in the bending functions.

 Reviews
Add to comparison chart | Compare Products

The R-M10 has been a staple in the Baileigh Industrial’s line since it was first introduced in 2004. This manually powered roll bender is capable of rolling full circles because of its open face design. The R-M10 can do anything that the larger models of roll benders can. The only difference is that The R-M10 is manually powered, but it does have a reduction gearbox to assist in the bending functions.

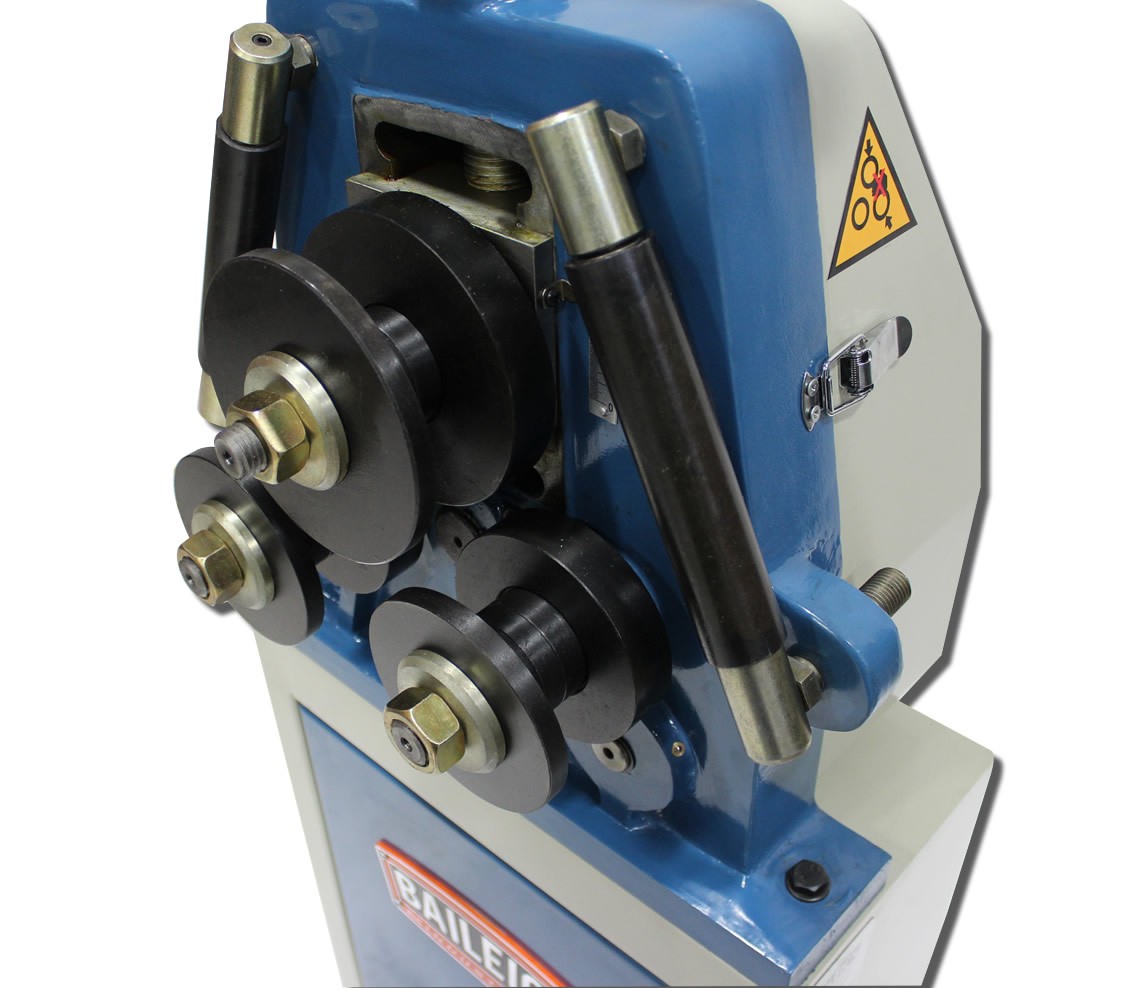

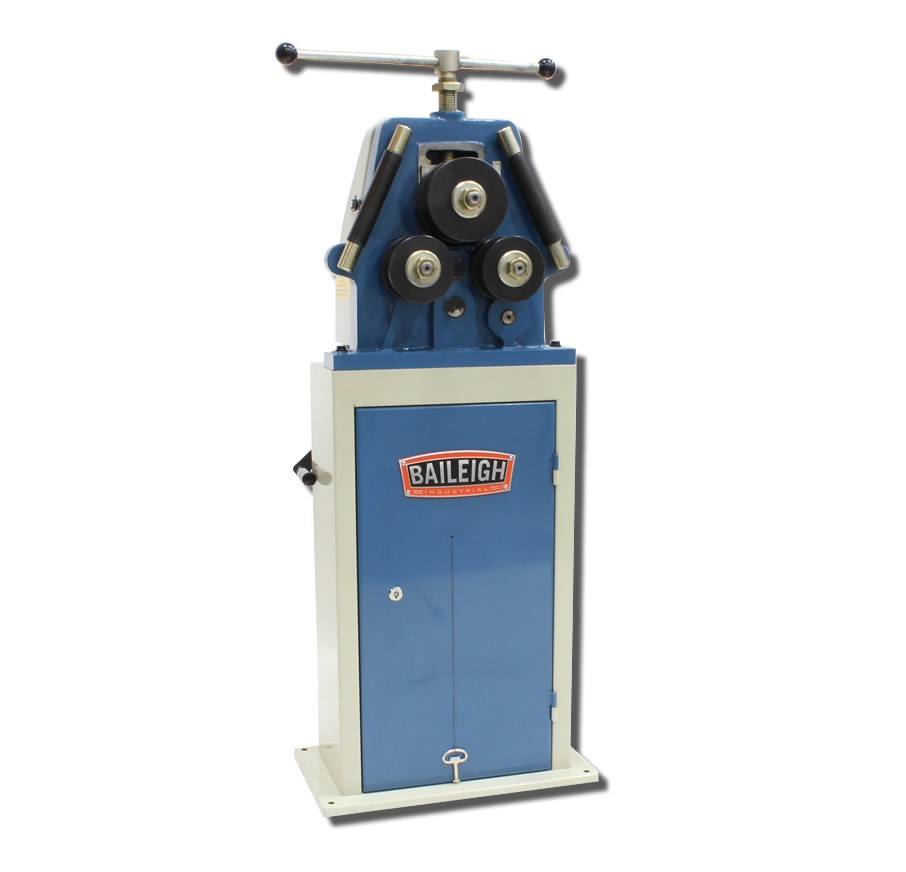

The R-M10’s powerful manual drive system has a maximum capacity of 1-1/4” (.078” wall) round tubing capacity in mild steel. All rolling shafts on the R-M10 angle roll are hardened and turn on bronze bushings ensuring long life and great wear characteristics. The head is made of strong cast steel and machines to exacting tolerances. The included base has a useful storage cabinet. The R-M10 comes standard with segment rolls that allows for many different types of flat bar, some angle iron and some square to be rolled. The R-M10 has optional many sizes of tooling available for round tube and pipe, as well as other profiles.

The R-M10 would be a perfect addition to any fabricating shop.

Product Details:
  • Roll Adjustment: Manual
  • Pipe CapacitySize: 1" (sch. 40) / Min. Dia.: 28"
  • Round Tube Capacity: Size: 1.25" (.078") / Min. Dia.: 31.5"
  • Square Tube Capacity: Size: 1.25" (.078") / Min. Dia.: 35"
  • Solid Round Capacity: Size: .875" / Min. Dia. 20"
  • Flat Bar Easy Way: 2" Thick / Min Dia. 15.75"
  • Flat Bar Hard Way: .75" Thick / Min Dia. 6.5"
  • Angle Iron Capacity: Size: 1.25" (.157") / Min. Dia.: 30"
  • Shaft Diameter: 1.181"
  • Shaft Center Distance: 6.7"
  • Lower Roll Dia.: 4.65"
  • Pinch: Single
  • Power: Manual
  • Shipping Weight: 435 lbs.
  • Shipping Dimensions: 60" x 44" x 68"

All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.


*Optional Tooling -- Some applications may require optional tooling. Please contact a Sales Specialist at Magnum Tools with specific application details.
