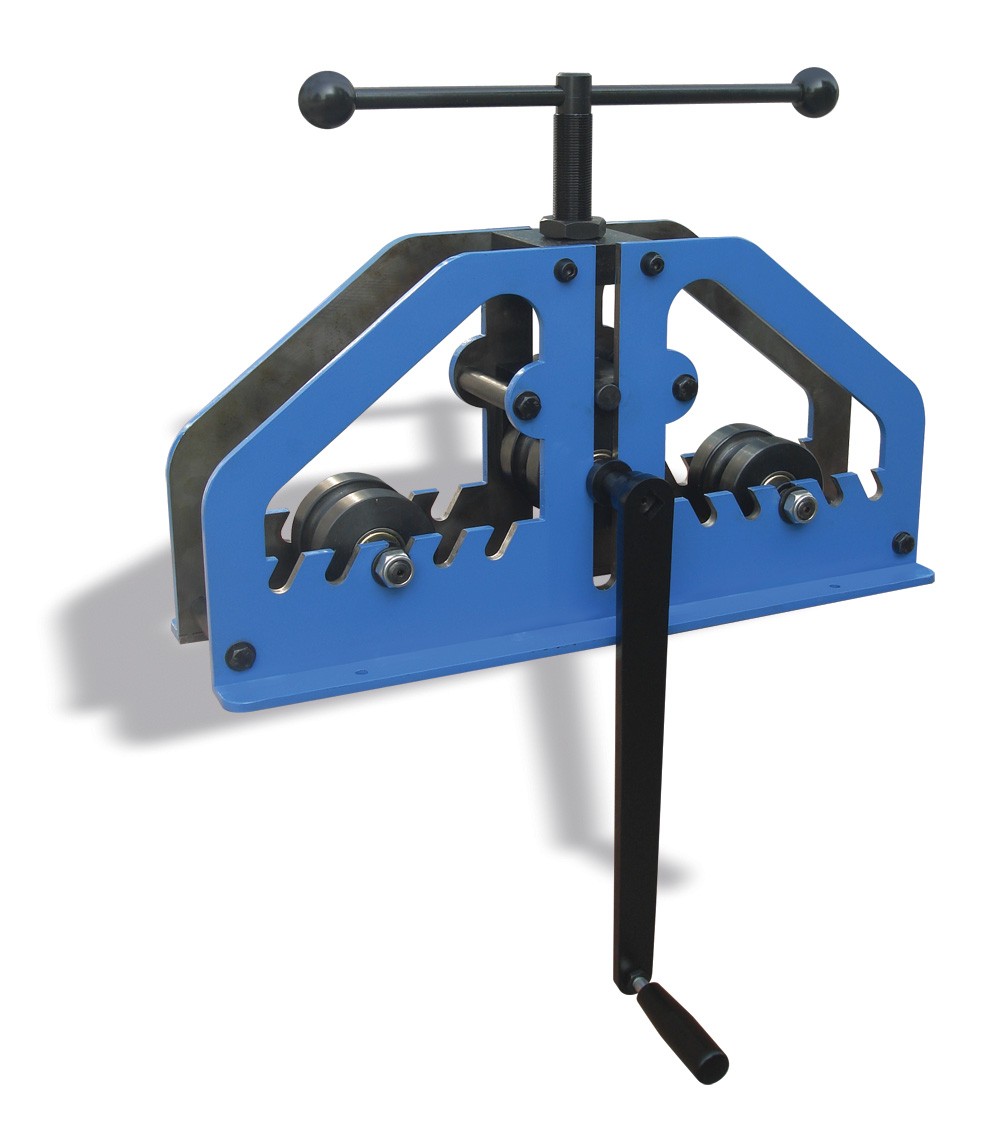

Need to bend tube and pipe to large radii? Then Baileigh Industrial’s R-M7 radius bender is for you. Although not for rolling complete circles, the R-M7 does, make quick work of large radius bends. With many different tooling options, the R-M7 is just as versatile as all of the other Baileigh Industrial roll benders.
The R-M7 radius bender is built using the highest quality materials for years of use. The R-M7’s small size makes it highly portable and versatile for even the smallest shops. All turning shafts on the R-M7 roll bender turn on precision ball bearings, for the smoothest operation possible.
PRODUCT SPECIFICATIONS:
- Roll Adjustment: Manual
- Pipe CapacitySize: 1.5" / Min. Radius: 20"
- Round Tube Capacity: Size: 2" / Min. Radius: 60"
- Shaft Center Distance: Adj. (lower rolls)
- Rectangle Capacity: Size: 1 x 2" / Min. Radius.: 10"
- Pinch: Single
- Capacity Flat Bar:Size: 1.25" / Min. Radius.: 10"
- Power: Manual
- Shipping Weight: 85 lbs.
- Bends 1.5” pipe to a minimum radius of 20” and 2” round tube to a minimum radius of 60”.
- Manual crank makes quick work of large radius bends*.
- Shafts turn on precision ball bearings for the smoothest possible operation.
- Takes up little space and will easily fit into even the smallest shops.
- Includes a set of 1-1/2" OD tube dies.
- Baileigh covers this tubing roller with a 1-year parts warranty and lifetime technical support by phone.
