Roper Whitney 4-foot Magnabend Brake - MBB4181 - 156185125

Name: Roper Whitney 4-foot Magnabend Brake - MBB4181 - 156185125
SKU: 156185125
Price: 3550 USD
Availability: InStock

Item Number: 156185125 Brand: Roper Whitney

$3,550.00

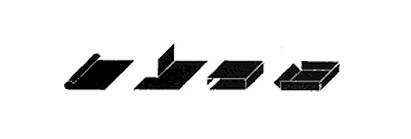

A wide variety of complex shapes can be formed with Magnabend. These include rolled edges up 330°, partial length bends, closed shapes, unlimited depth for boxes and heavier material bends (up to 10 ga.) in shorter widths.

Quantity

Question about the product

Add to comparison chart | Compare Products

Description

Magnabend Brake

Magnabend offers performance characteristics no conventional bending brake can match. The unique electromagnetic design of the keeper clamping system allows you to form many complex shapes not possible before. Plus, Magnabend can handle all regular shapes in light ferrous and non-ferrous sheet metal (up to 4' wide, 18 ga.) in a simpler, less time consuming and efficient manner.

The rugged simple construction incorporating only one moving part assures low maintenance and versatility for all light duty forming requirements.

DESIGN FEATURES ASSURE QUALITY

Simplicity is evident in Magnabend's electromagnetic design which eliminates a conventional upper beam and more complex finger arrangements. Keepers (clamping members) are simply positioned over the work piece and are clamped in place electromagnetically when the bending beam is raised. Keepers self-adjust for material thickness as the apron moves.

Electromagnetic Design Magnabend - The Magnabend is designed to eliminate the hindrance of an upper beam with the introduction of an elongated electromagnet and keeper system.
Self-Locating - A simple and effective method of locating the full length keeper is achieved by spring-loaded steel locator balls.
Triple Hinge System - Three hinges allow Magnabend to have a lighter bending beam without limiting durability and reliability.
Bend-Angle Gauge - Convenient bend angle gauge features adjustable stop for precise, efficient repeat bends.
Back Gauge - Production efficiency in repeat bends is provided by adjustable back gauge.
Safety Features - The safety button engages a light magnetic force on the keeper. As well as a safety device, this force is a convenient way to stabilize the work piece for precise measurement before you activate full clamping power.

Specifications:

Maximum bending capacity, mild steel: 18 ga./1.25mm
Maximum bending length (Typical bend radius 0.16in/4mm) 49.375 in./1250mm
Keepers (Clamping Members): 11 total
Imches: 3⁄4, 1, 1-3/8, 1-7/8, 2-3/4, 3-3/4, 4-3/4, 6, 12, 21-5/8, and full length 51-1/4in.
Millimeters: 19, 25, 35, 48, 70, 95, 120, 152, 30, 550, and full length 1300mm.
Minimum Reverse Bend With support bar: 1-1/2in. (38mm)
Minimum Reverse Bend Without support bar 3/4in. (19mm)
Minimum flange bend 1in. (25mm )
Input voltage: 115 volts /1 single phase /60 hertz

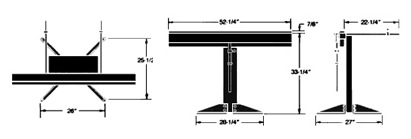

Dimensions (LxWxH) 52-1/4 x 27 x 33-1/4 in. (1330 x 685 x 845mm)
