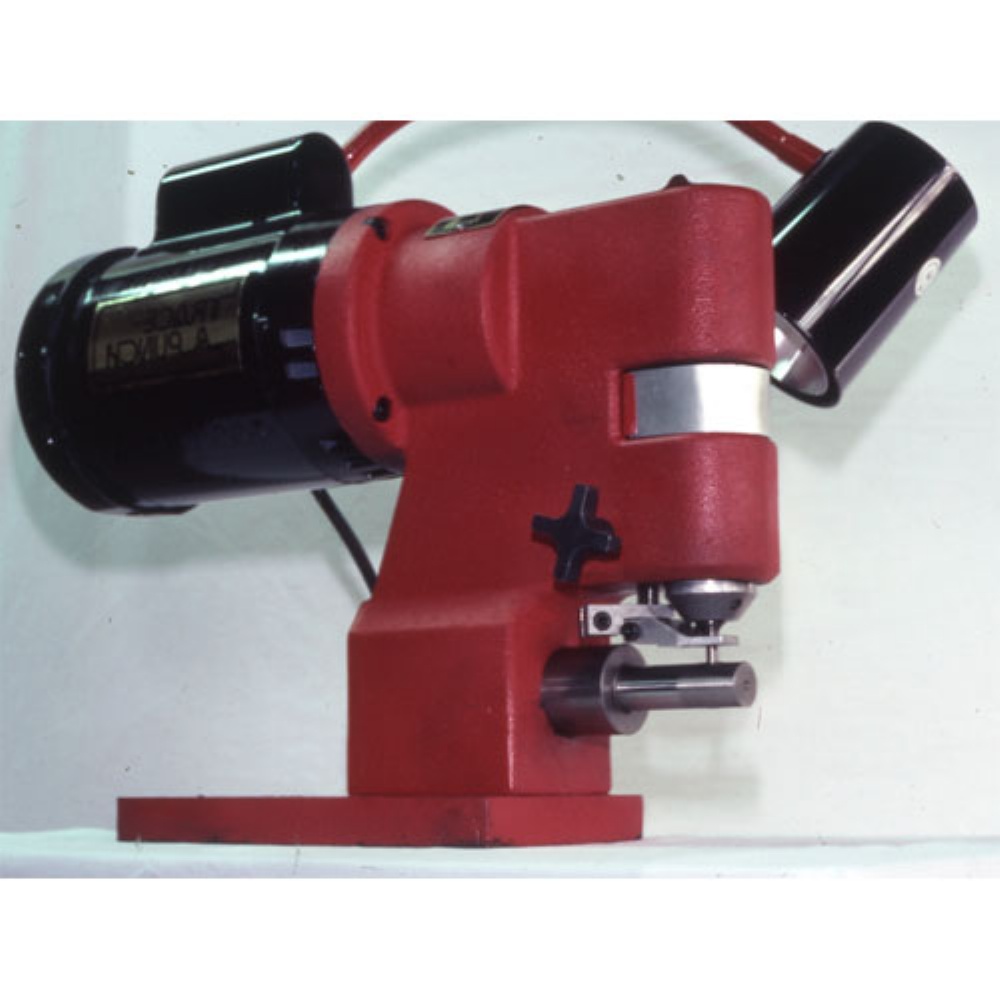

The patented Tubing Nibbler is designed for forming tube ends for 1/2" I.D. or larger. The high speed tooling cuts material up to 1/8" mild steel. Interchangeable die anvils are available in 1/4" increments from 1/2" to 2".
Acetate templates can be made of slightly larger tubing to slip over the part to be cut, by splitting then expanding a same size tube or using a larger diameter tubing. Clamping of template to the tubing is easy by use of a simple hose clamp. Adjustable stroke height allows for template tracing and punch sharpening.
Specifications:
- Cutting Capacity: 1/8"
- Mild Steel: .125"
- Plastic: 3.1mm
- Stainless: .080"
- Exotic Metals: 2mm
- Throat: 4"
- Depth: 101mm
- Strokes per minute: 1725
- Motor: 3/4HP 110/220V, 1 Phase - 50/60 HZ
