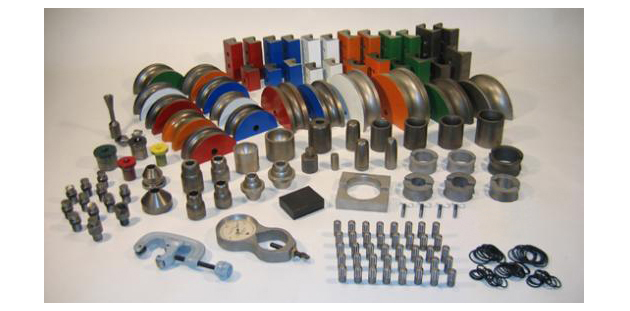

Huth 013 Die and Tooling Package

Item Number: H013 Brand: Huth Benders
$7,295.00 $8,000.00

Huth has combined the tooling you'll be reaching for most often into comprehensive, convenient tooling packages. Our Die Packages combine the tooling for bending and end-finishing with the accessories you need to get the most from your bender. Some of these packages even include Huth's exclusive Program Card Bending System, containing all the information you need to bend pipe for thousands of applications.


 Reviews
Add to comparison chart | Compare Products


Radius Dies
NO. RADIUS SIZE
5112* 5" 11⁄2"
5134* 5" 13⁄4"
5820* 5" 2" 180°
5824* 5" 21⁄4" 180°
5412* 5" 21⁄2"
5530* 5" 3"
4112 4" 11⁄2"
4134 4" 13⁄4"
4200 4" 2"
4414 4" 21⁄4"
4409 4" 21⁄2"
3112 3" 11⁄2"
3134 3" 13⁄4"
3200 3" 2"
3414 3" 21⁄4"
*Requires 41041 retainer
Back Shoes
NO. PCS. SIZE
1112 2 11⁄2"
1134 2 13⁄4"
1200 2 2"
4211 2 21⁄4"
4412 2 21⁄2"
1350 2 3"
Three-Quarter Shoes
NO. SIZE
1036 13⁄4"
1046 2"
4413 21⁄4"
4415 21⁄2"
1351 3"
Half Shoes
NO. SIZE
1038   11⁄2"
1040   13⁄4"
1045   2"
4416   21⁄4"
4410   21⁄2"
1352   3"
Reducing Dies
NO. SIZE
780   2"     to   13⁄4"
781   21⁄4" to   2"
782   21⁄2" to   21⁄4"
783   3"     to   21⁄2"
Collet Sets
NO. SIZE
1712    11⁄2"
1734    13⁄4"
1720    2"
1725    21⁄4"
1750    21⁄2"
1730    3"
Swage Dies
NO. SIZE
112 11⁄2"
134 13⁄4"
178 17⁄8"
130 3"
*For 2", 21⁄4", 21⁄2" IDs use male ball joint tools 550, 552, 553
Ball Joint Tooling
NO. SIZE
550    13⁄4" - Male
552    2" -     Male
553    21⁄4" - Male
554    21⁄2" - Male
555    13⁄4",  17⁄8",  2" - Female
556    21⁄4", 21⁄2" - Female
557    13⁄4"  to   21⁄2" - Domer
558    21⁄2"  to   23⁄4" - Domer

Arbor
NO. SIZE
508           11⁄2"   to 4"
498    Tip: 11⁄2"   to   13⁄4"
499    Tip: 13⁄4"  to    4"
Flaring Segments 45 °
NO. SIZE
440        11⁄2"    to    21⁄2"
Segment Sets
NO. SIZE
473   11⁄2"   to   13⁄4"
474   13⁄4"   to    21⁄8"
475   21⁄8"   to    21⁄2"
476   21⁄2"   to    3"
Accessories
NO. DESCRIPTION
815 Die Holder
816 Die Holding Pin
825 Quick Disconnect Kit
835 Tube Cutter
852 Blank Plate
853 11/2" to 31/2" Flaring/Flanging Tool
855 Die Pins (35)
870 O-Rings-Rubber Assist.
892 Collet Holder
996 Rotation Dial
97091 Ruler - No Longer Available
97092 Huth Marking Pen - No Longer Available
950 Program Card System
OR
980 Program Card System in Electronic Format
