For one low price you get everything you need to bend up to 3" pipes, including tooling and instruction video.

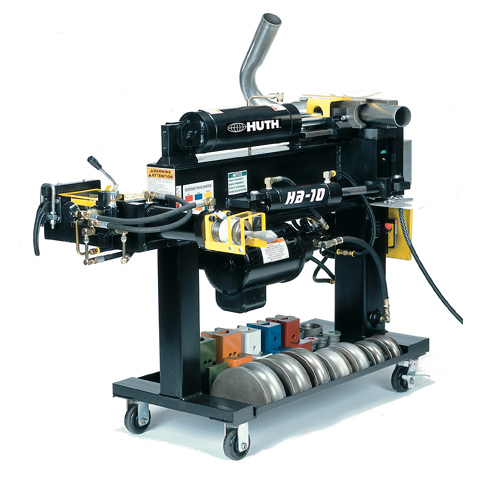

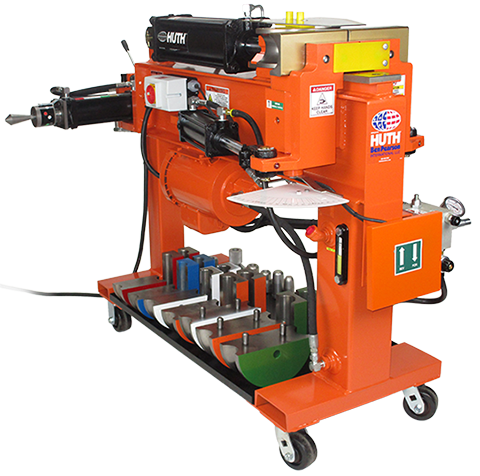

Huth's HB-10 Complete Bender Package includes Huth's newest Manual Knee Control Bender and comprehensive tooling package - everything you need to create O.E.- fit and custom-bent pipes. The HB-10 is Huth's entry level bender, designed to introduce you to Huth quality while showing you the incredible profit potential that awaits you. The HB-10 features knee control activation, manual depth-of-bend control and 58,000 lbs. of bending power - more than enough for 3" tubing.
As with all Huth Benders, the HB-10 features a built-in swager/expander for complete end-finishing capability - 1" to 3" tubing on the swager end and 1" to 5½" tubing on the expander end. Plus, you receive bending dies, end-finishing tooling and a Huth DVD - everything you need to start bending pipes for thousands of applications. The HB-10 Bender package comes as shown. However, the HB-10 accepts all of Huth's standard tooling and accessories such as the Ready-Rak, Rod Bracket Bender and Oil Filter Crusher.
Please be advised that while the machine is capable of swaging 1" to 3" tubing and expanding 1" to 5 ½", the 028 tooling package that is included with all HB series benders does not include all tooling required to cover that entire range. The 028 package includes tooling to swage from 1-1/2" to 2-3/4", and expand from 1-1/2" to 3". The purchase of additional tooling beyond the 028 package will be required to attain the entire range of the machines capabilities.

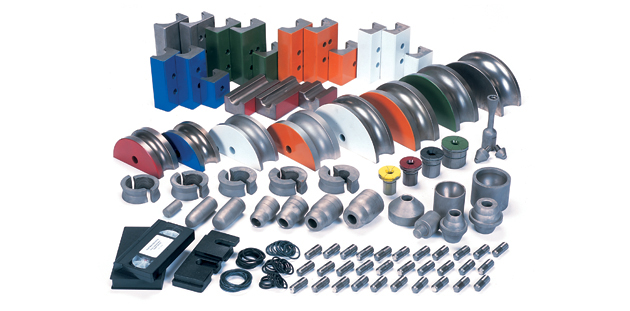

THE 028 DIE AND TOOLING PACKAGE
| 028 Die Package Tooling | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*HB-10 package comes as listed only. Additional tooling available at extra charge.
End-Finishing
Built-In Swager/Expander
The built-in heavy duty swager/expander gives you complete end-finishing capabilities - 1" to 3" tubing on the swager end and 1" to 5½" tubing on the expander end.
With Huth's Accu-Sizer™ automatic bull's-eye expanding system, you'll be able to dial in precise expansions every time.
Knee Control
Slim Knee Control Activation allows you to get closer to your work for quick, precise bending.
An Easy-to-Read Bend Indicator shows how far into a bend you are.
FEATURES
- Comes with comprehensive tooling package and instructional DVD
- Easy-To-Use Knee Pad Control
- Manual Depth-of-Bend Indicator
- Complete Manual Control
- 58,000 lbs of bending power - More than enough for 3" tubing
- Agricultural Cylinders
- Flat Tool Tray
- Bending Die Retainer
- Heavy-Duty Swager/Expander
- Rugged I-Beam Construction
- Exclusive Safety-Guard Package
- Front Swivel Casters w/o Brakes
- 220V, 60 Hz Operation. Single-Phase requires 30 amp service. Three-Phase requires 20 amp service.
Download the product manual
Download segment set silhouette charts
Download o-ring silhouette charts
Download hydraulic parts breakdown
