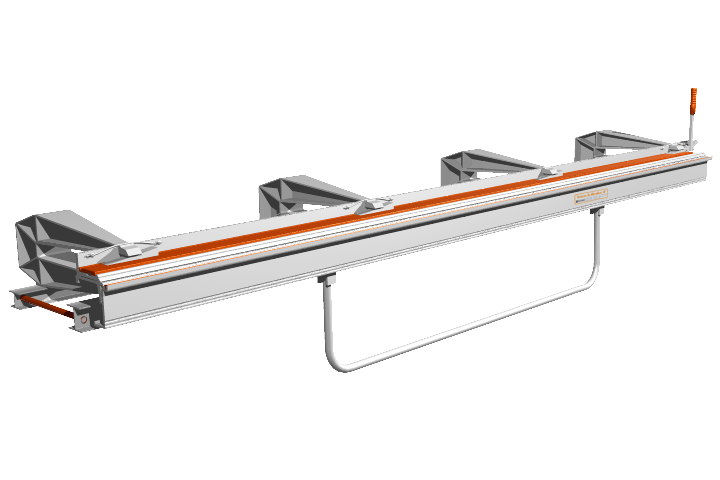

The Van Mark Trim-A-Brake II model T850 is a lightweight portable bending brake designed to provide durability and versatility. Ideal for custom forming aluminum, galvanized steel, copper and other metals in coil or sheets for residential siding, roofing, window and gutter installation. The T850 bends aluminum trim coil and light gauge steel with ease and features a toggle locking system with single point adjustment for worry free, low-maintenance operation. The Trim-A-Brake II T850 is a superior entry-level brake for light duty, basic applications. The T850 is very popular brake with window and door installers and in the DIY market.
Years of dedication and commitment to improving performance have gone into the Trim-A-Brake II resulting in a brake you can take to your job knowing it will deliver. Whether you’re a seasoned pro, or just starting out, you'll appreciate Trim-A-Brake II for its simplistic, durable design. A time-tested design, the original Trim-A-Brake series benders have been manufactured and assembled in the USA since the 1960's.
Features:
- Hinge pocket design prevents scoring damage to the hinge when using a utility knife to cut material on the brake
- Rigid I-Beam base rails ensure that the brake stays in calibration
- Quick release full loop bending handle provides uniform bending along the entire length
- Adjustable material stops allow repeat bending without re-measuring
- 3/8” tall jaw opening
- 13” maximum throat depth
- 130 degree bending radius
- Traditional fixed hinge system of 3/4 in. or larger bends
- Integrated vinyl strip for protecting material surfaces during bending
- Anodized finish for superior protection from the elements
At a Glance:
 Unique Toggle-Lock Handle |
 Material Stops for Repeat Bends |
 Vinyl Strips Reduce Marring |
 Dual Carrying Handles and I-Beam Frame Rails |
Bending Capacities:
|
Models
|
Bending Capacities
|
|||||
|
Model
|
Length
|
"C"
|
Weight
|
|
Thickness
|
|
|
T200
|
2'0" (0.6m)
|
2
|
25 (11.4kg)
|
Aluminum (3003H14)
|
.019"
|
|
|
T450
|
4'6" (1.4m)
|
3
|
40 (18.2kg)
|
|
Gutter Coil
|
.024"
|
|
T650
|
6'6" (2.0m)
|
4
|
58 (26.4kg)
|
Galv Steel Grade D
|
28 ga.
|
|
|
T850
|
8'6" (2.6kg)
|
4
|
76 (34.5kg)
|
Galvanized Steel
|
26 ga.
|
|
|
T1050
|
10'6" (3.2m)
|
5
|
91 (41.4kg)
|
Roofing Copper
|
16 oz.
|
|
|
T1250*
|
12'6" (3.8m)
|
7
|
112 (50.9kg)
|
Zinc Alloy
|
.019"
|
|
|
* Includes dual bending handles.
|
||||||

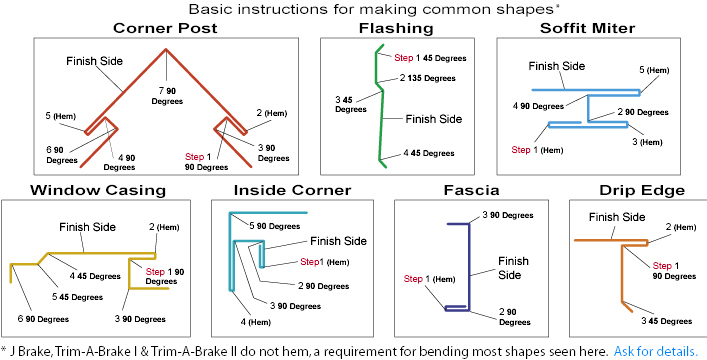

Common Shapes:
Note that the Trim-A-Brake II series brakes are not designed to perform a hem bend (180 degrees), a requirement for creating most common shapes and profiles seen below. If you are needing to hem your metal, all Van Mark Trim Master and Metal Master series brakes are capable of hemming.
Parts Diagram:
Van Mark Trim-A-Brake II - Parts Diagram
Van Mark Trim-A-Brake II - Quick Start Guide
