GMC Machinery 4 Foot x 12 Gauge Electro Mechanical Shear - EPS-0412M
Our electro mechanical shears are a low maintenance design with an array of features that will add value to any shop. These fully electric metal cutting shears are quiet and provide low power consumption. Capable of cutting up to 10 gauge mild steel and 18 gauge stainless.
Low maintenance design with an array of features that will add value to any shop.
Standard Features
- ISO 9001 certified
- American design and Taiwan quality machine
- With material front out tray
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 26 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
Specifications:
- Cutting capacity:
- Mild steel: 4' x 12Ga
- Stainless steel: 4' x 16Ga.
- Blade length: 52"
- Strokes per minute: 35
- Throat depth: 52"
- Worktable height: 32"
- Front support arm: 36"
- Back gauge Material front out tray: 26" Power Back gauge
- Blade rake angle: 2 Degree

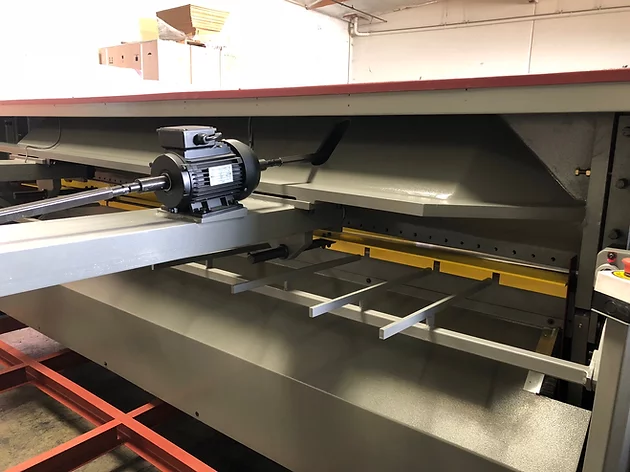

- Main Motor: 4HP, 220V/440V
- Machine weight: 3,350 LBS
- Machine dimmensions: 72" x 42" x 67"
Included

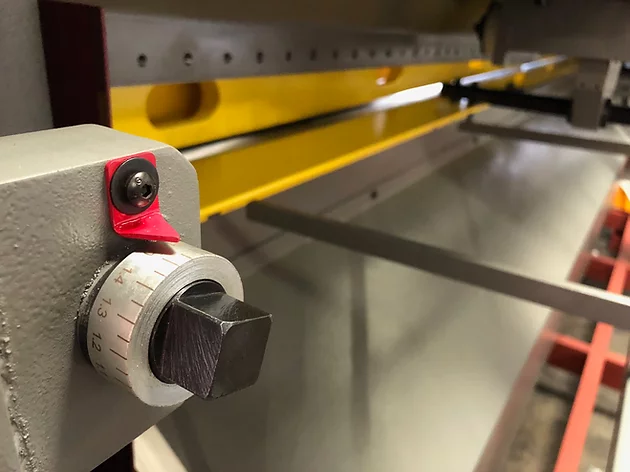

- 26” manual back gauge with one side operated handwheel.
- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
