GMC Machinery 6 Foot x 10 Gauge Hydraulic Box & Pan Brake - HBB-0610
The Hydraulic Box and Pan Brakes AKA Metal Finger Brakes; are constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake.
Standard Features
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece

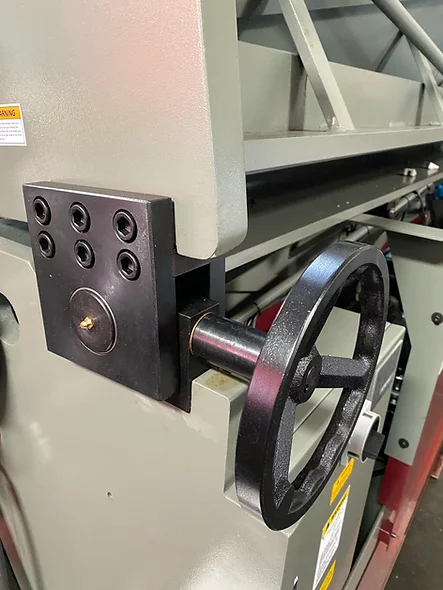

- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement

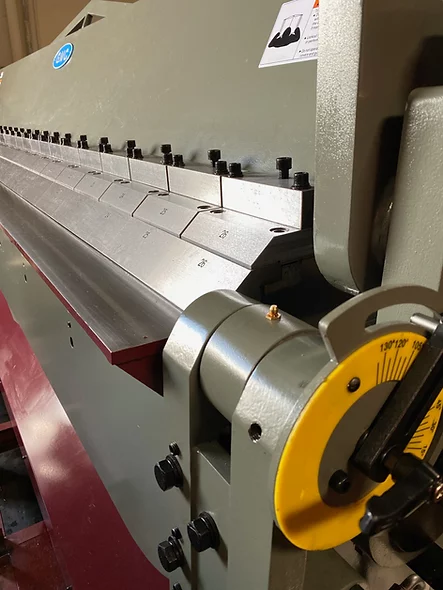

- Total pieces fingers assortment:
- HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
- HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
- HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
- HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
- HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
- HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs

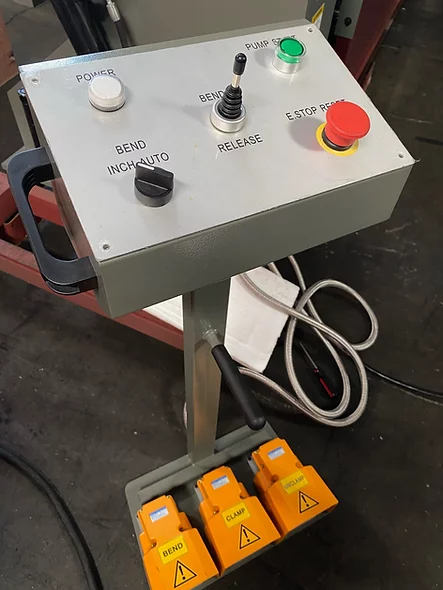

- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts
Optional Equipment
- One-piece straight finger instead of assorted fingers , extra - $2,995.00
- Safety fence for enclosure of the front side of the machine - $1,150.00
- Safety light curtain - $5,950.00
Specifications
- Max Bending Legth: 6'
- Capacity Mild Steel: 10Ga.
- Stainless Steel: 12Ga.
- Bend Angle Degree: 135
- Max. Box Depth: 6"
- Large Beam Opening: 3"
- Oil Tank Gal: 43L = 12 Gal
- Main Motor: 5HP
- Weight: 5,350 lbs..
- Overall Dimensions: 91" x 43" x 69"
- This machine is not made to Hem over 22 GA.
Standard Included Equipment
- Assorted fingers
- 26” manual back gauge with one side handwheel operation
- Angle set up dial
- Hydraulic clamping system
- Foot pedal control for hydraulic clamping & auto mode
