Rikon 8 In 120 Volt Helical style Benchtop Jointer - 20-800H
8” Benchtop Jointer 20-800H has a 6-row helical-style cutter head with 16 CARBIDE, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 30-1/2″ to 51-1/2″. Features rigid, all-metal construction, machined aluminum

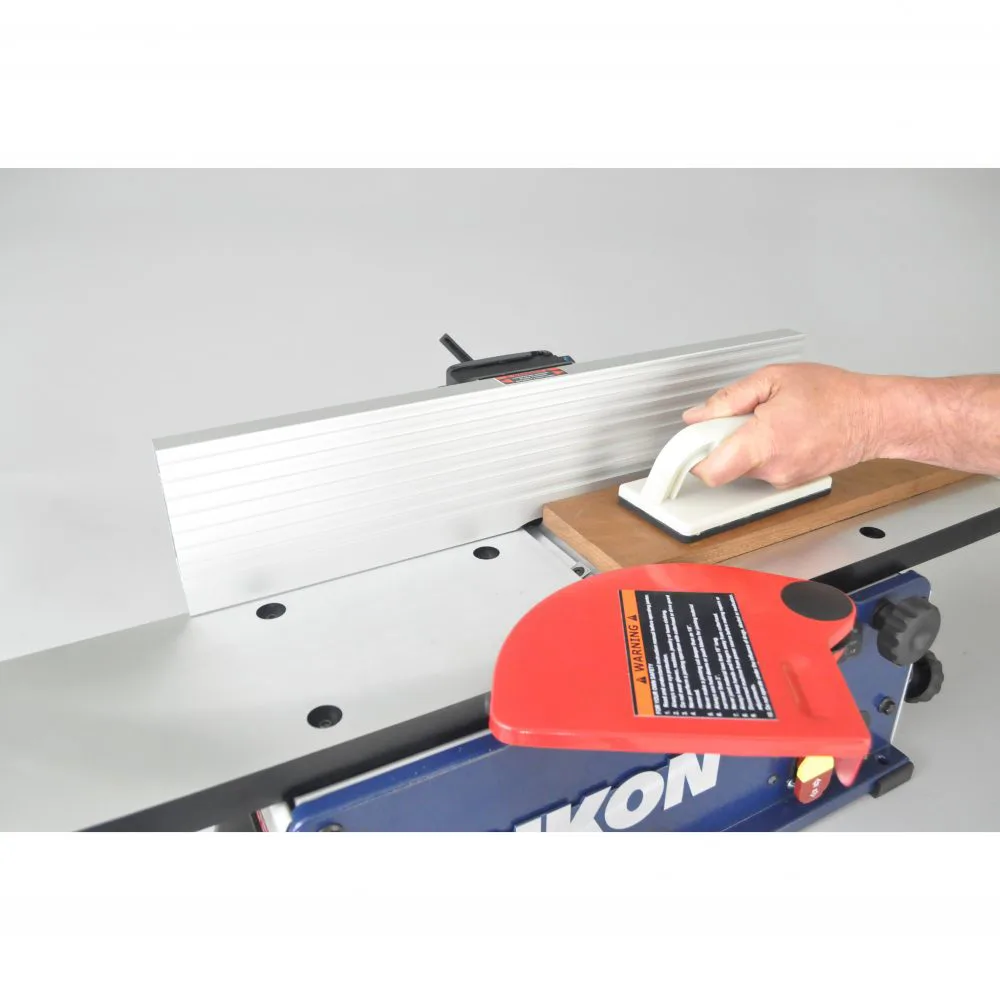

tables, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately, spring-loaded safety guard, 4″ & 2-1/2” dust ports, front safety on/off switch and two push blocks.
Features:

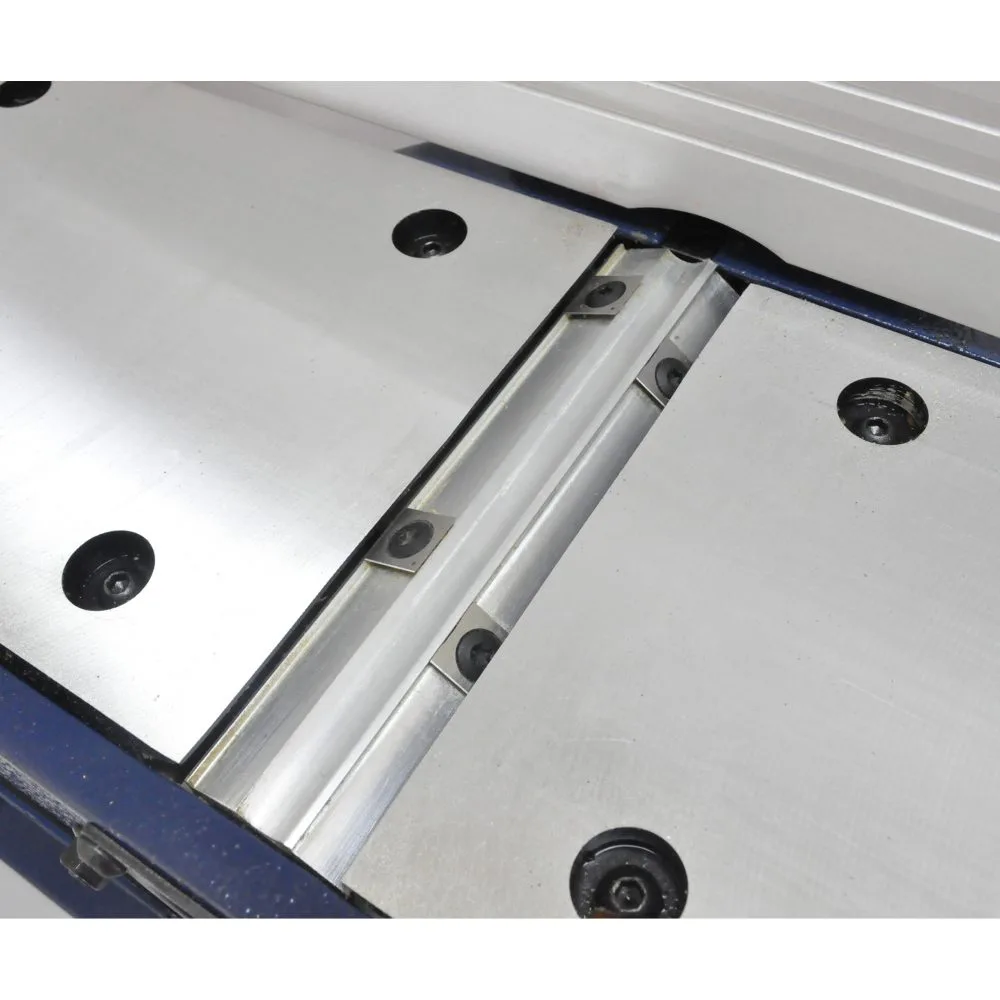

- Helical-style Cutter head with 16 two-sided carbide inserts

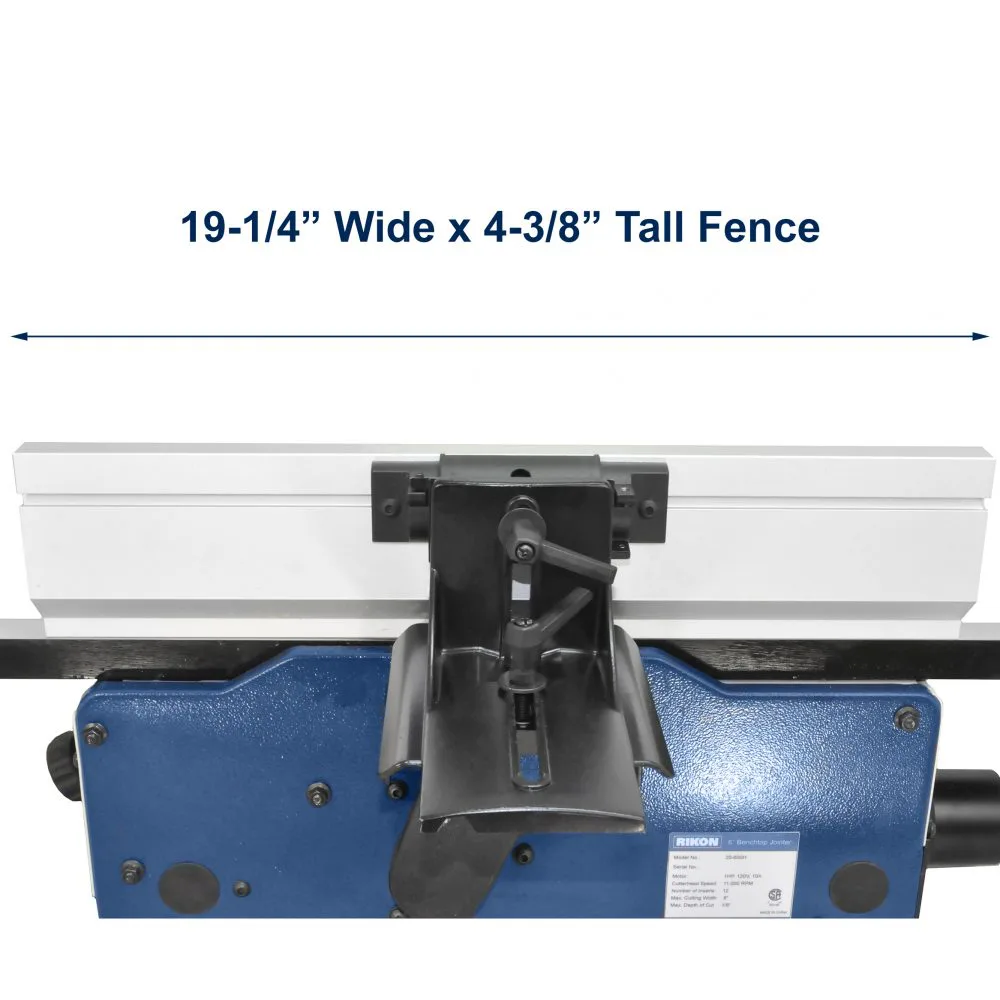

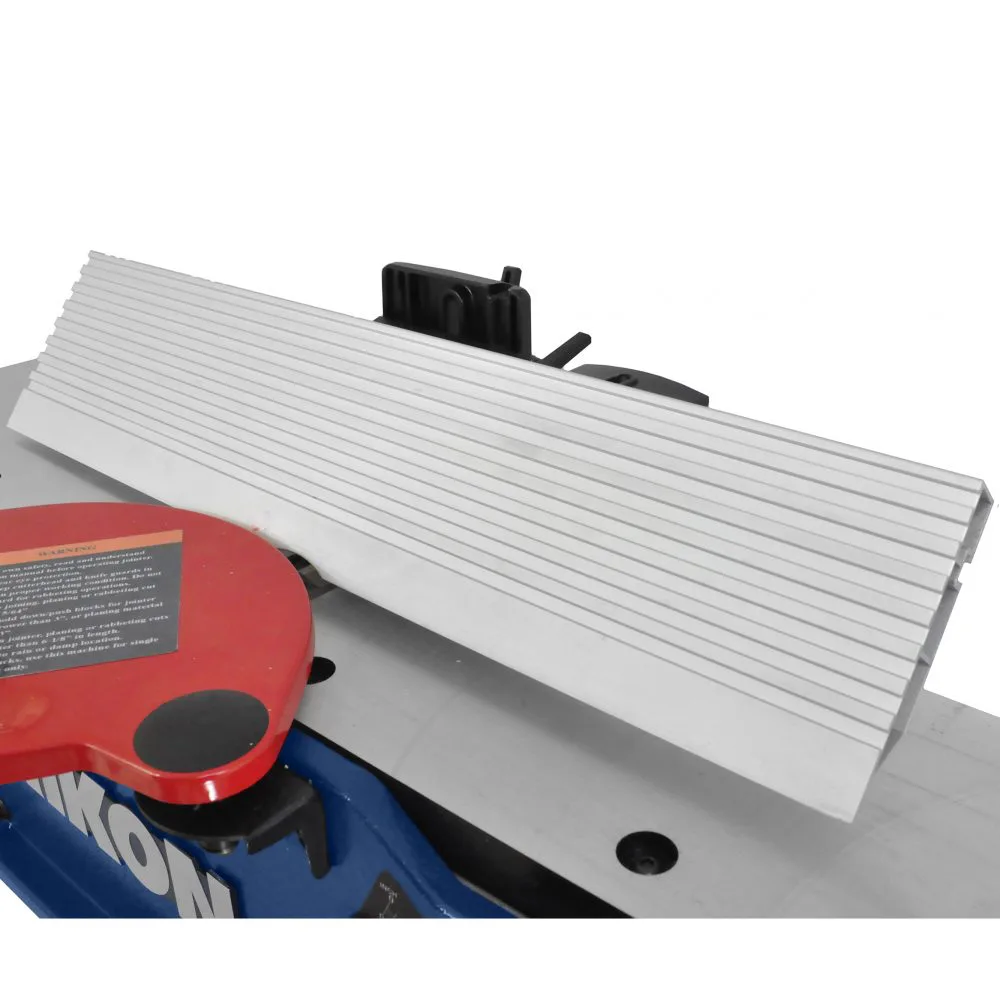

- Large 19-3/4″ x 4-3/8″ Fence tilts 90° to 135°

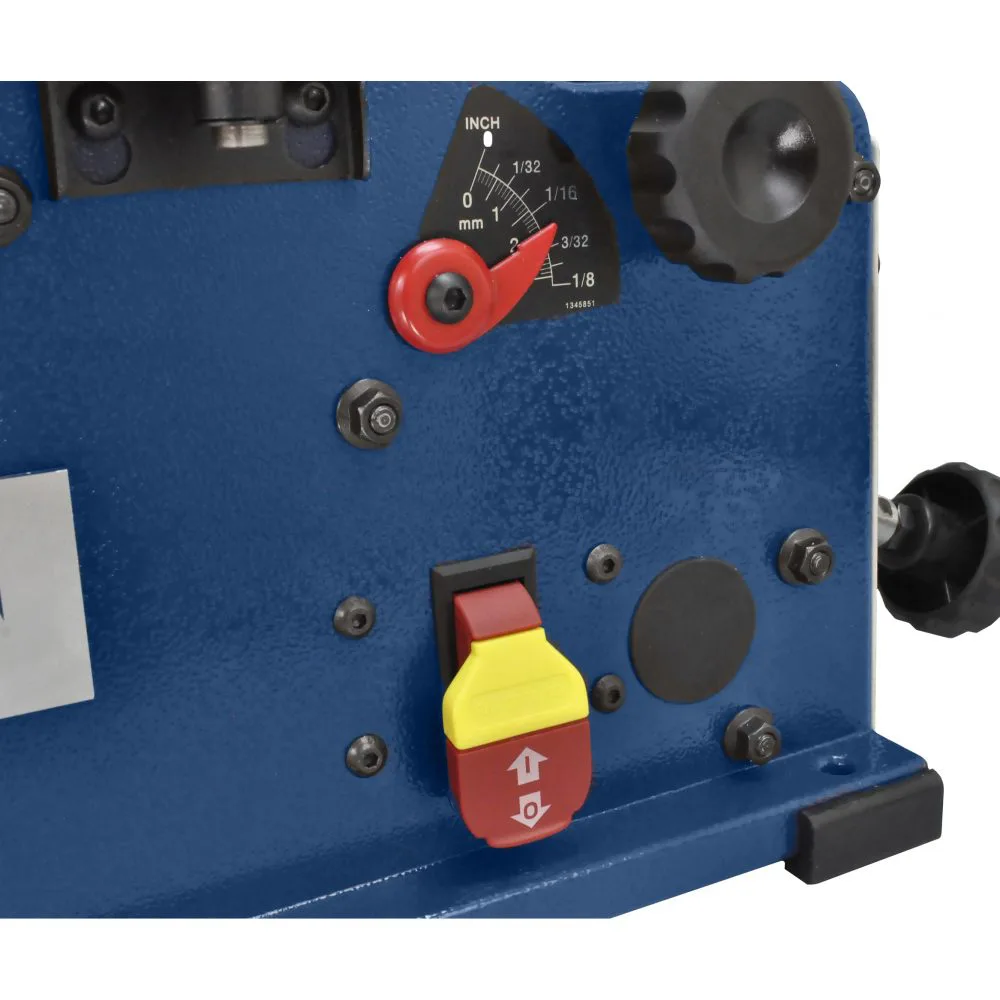

- Safety on/off switch
- Easy read depth scale
- Portable at only 49 lbs
- Full table size 30-1/2″ x 8-3/16″ extends to 51-1/2″ x 8-3/16″
Tech Specs:
Motor:
- Amps: 10
- Volts: 120V, 60 Hz
- Speed (No Load): 20,000 RPM
Fence:
- Size: 19-3/4” x4-3/8”
- Tilt: 90 – 135
Cutterhead:
- Diameter: 2”
- Speed: 12,000 RPM
- Number of Carbide Inserts (2 sided): 16
- Carbide Insert Size: 14.2mm x 14.2mm x 2mm
- Number of Insert Rows: 6
- Maximum Depth of Cut: 1/8”
- Maximum Cutting Width: 8”
- Minimum Length of Stock: 10”
- Minimum Width of Stock: 3/4”
- Minimum Thickness of Stock: 1/2”
- Overall Table Size (LxW): 30-1/2” x 8-3/16”
- Overall Table Size w/Extensions (LxW): 51-1/2” x 8-3/16”
- Dust Port (OD) Diameter: 4” & 2-1/2”
- Dust Collection Minimum CFM: 100
- Noise Level (No Load) at 3 Feet: <100dB
Overall:
- Height: 13”
- Width: 18-3/4”
- Length: 51-1/2”
- Base Size: 19" x 11-1/4”
- Net Weight: 49 lbs.
- Shipping Weight: 61 lbs.
- Shipping Carton: 36.25” x 15.5” x 11.5”
- Warranty: 5 years
