Rikon 6 In 10 Amp Helical style Benchtop Jointer - 20-600H

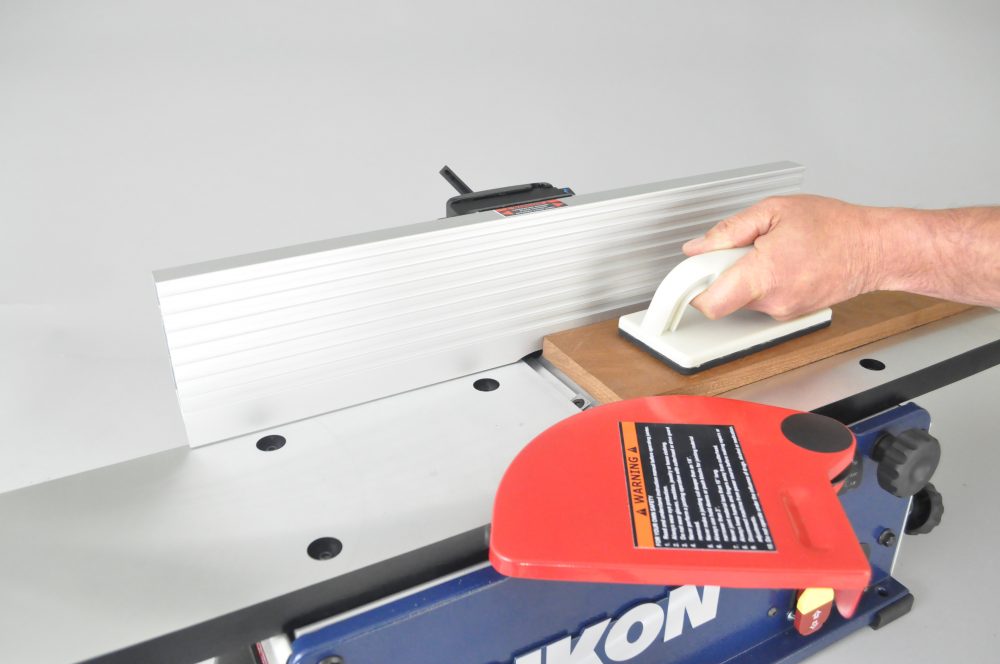

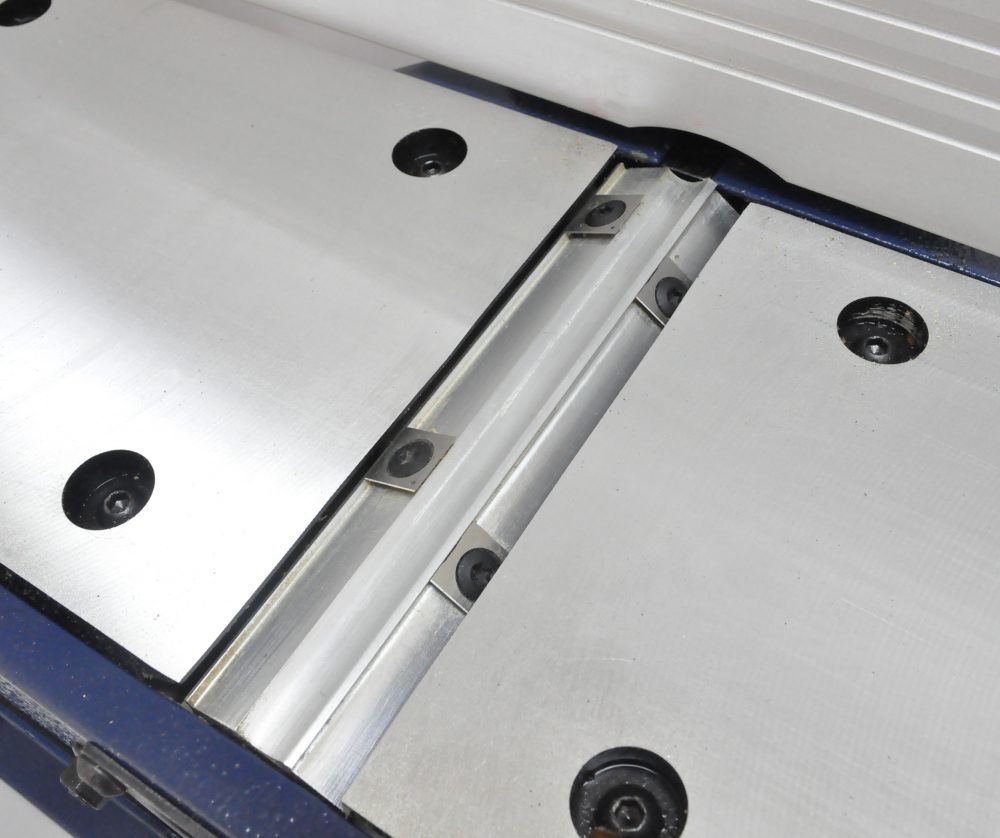

6” Benchtop Jointer #20-600H has a 6 row helical-style cutter head with 12 HSS, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Features rigid, all-metal construction, machined

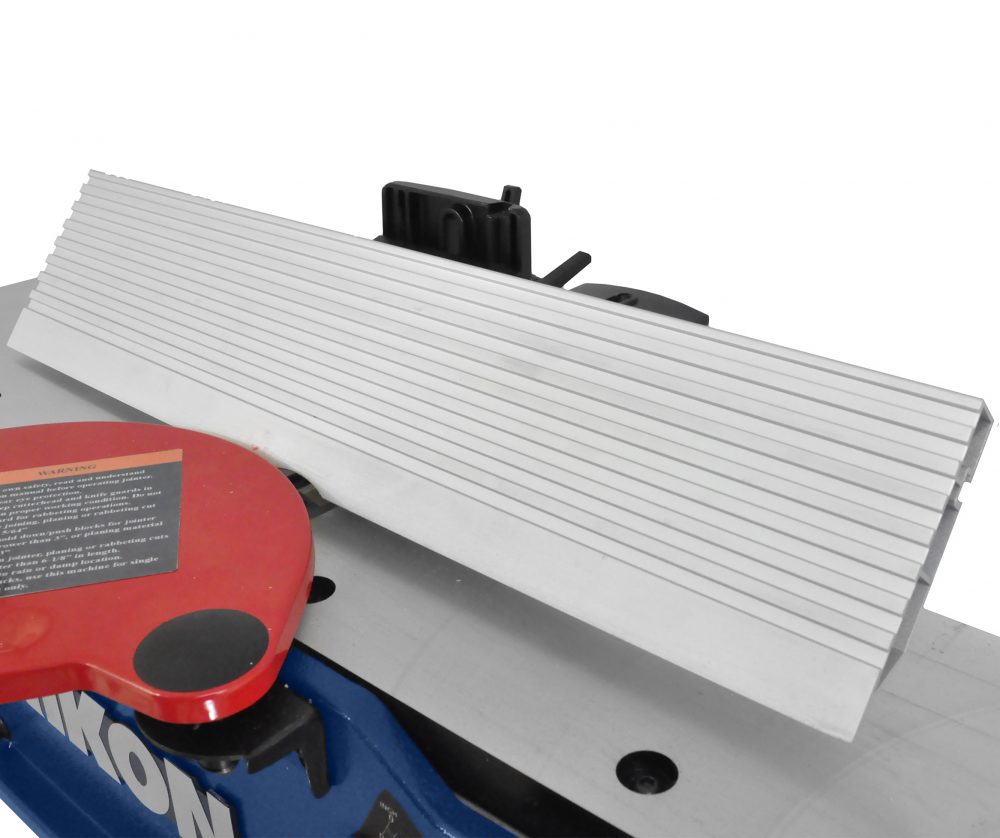

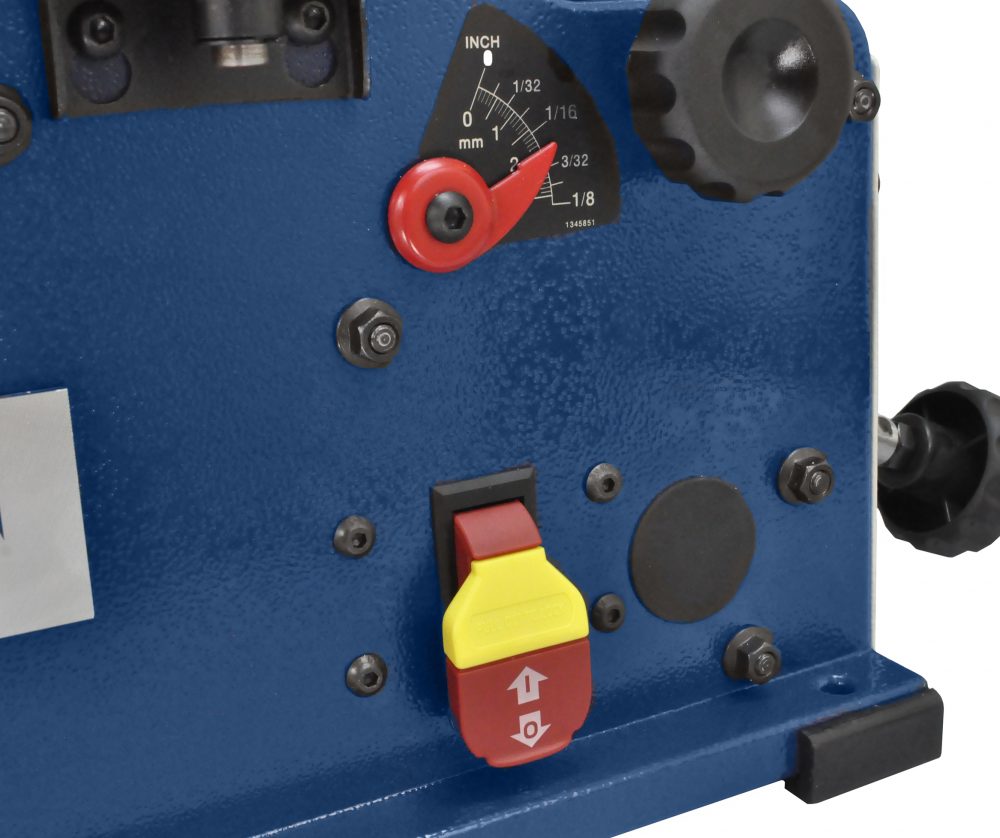

aluminum tables, a quick depth setting mechanism with scale, adjustable fence that tilts from 90° to 45° quickly and accurately, spring-loaded safety guard, 2-1/2” dust port, front safety on/off switch and two push blocks.
Features:
- Powerful 10 AMP Motor
- Helical Style Cutterhead
- All Steel Construction
- High Speed Steel Insert Knives
- Easy Blade Access
- Large 30″ x 6-3/16″ Table
Tech Specs:
Motor
- Amps: 10
- Volts: 120V, 60 Hz
- Speed (No Load): 20,000 RPM
Fence

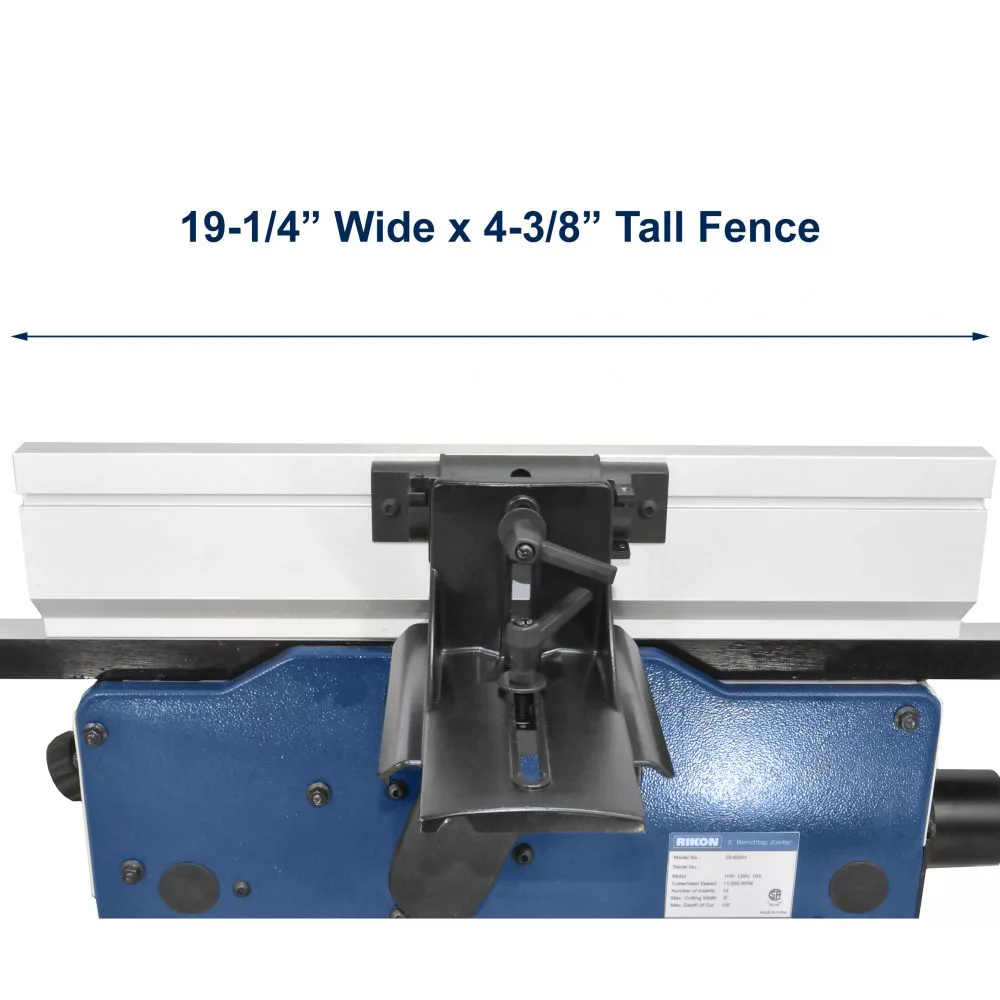

- Size: 19-3/4” x4-3/8”
- Tilt: 90° – 135°
- Table (L X W): 30” x 6-3/16”
Cutterhead
- Diameter: 2”
- Speed: 12,000 RPM
- Number of HSS Inserts (2 sided): 12
- HSS Insert Size: 14.2mm x 14.2mm x 2mm
- Number of Insert Rows: 6
- Maximum Depth of Cut: 1/8”
- Maximum Cutting Width: 6”
- Minimum Length of Stock: 10”
- Minimum Width of Stock: 3/4”
- Minimum Thickness of Stock: 1/2”
- Dust Port (OD) Diameter: 2-1/2”
- Dust Collection Minimum CFM: 100
- Noise Level (No Load) at 3 Feet: <100dB
Overall
- Height: 13”
- Width: 17-1/2”
- Length: 30”
- Base Size: 19” x 9-3/8”
- Net Weight: 36 lbs.
- Shipping Weight: 41 lbs.
- Shipping Carton: 31-1/2”x12-1/2”x11-1/8”
- Warranty: 5 years
