Rikon 16 In 3HP Planer with Helical Head - 23-400H
16” Planer #23-400H is fitted with a helical, four row cutter head holding 72 carbide insert cutters. Each insert cutter has four, pre-sharpened sides and can be easily changed/rotated if worn or damaged. Simply loosen the
retaining screw, lift up and rotate the insert to a new sharp edge and re-fasten it in place. No setting is required, as the inserts are automatically indexed and set to proper position.
Features:
- Powerful 3 HP Motor
- 72 Four Sided Carbide Inserts

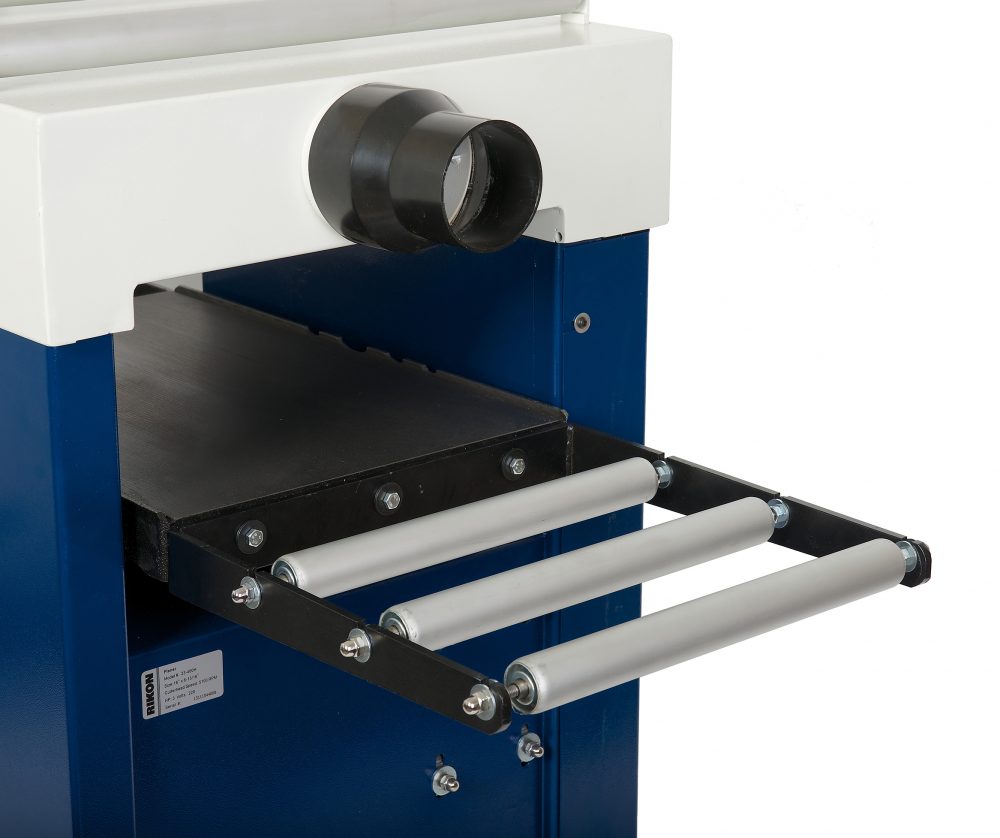

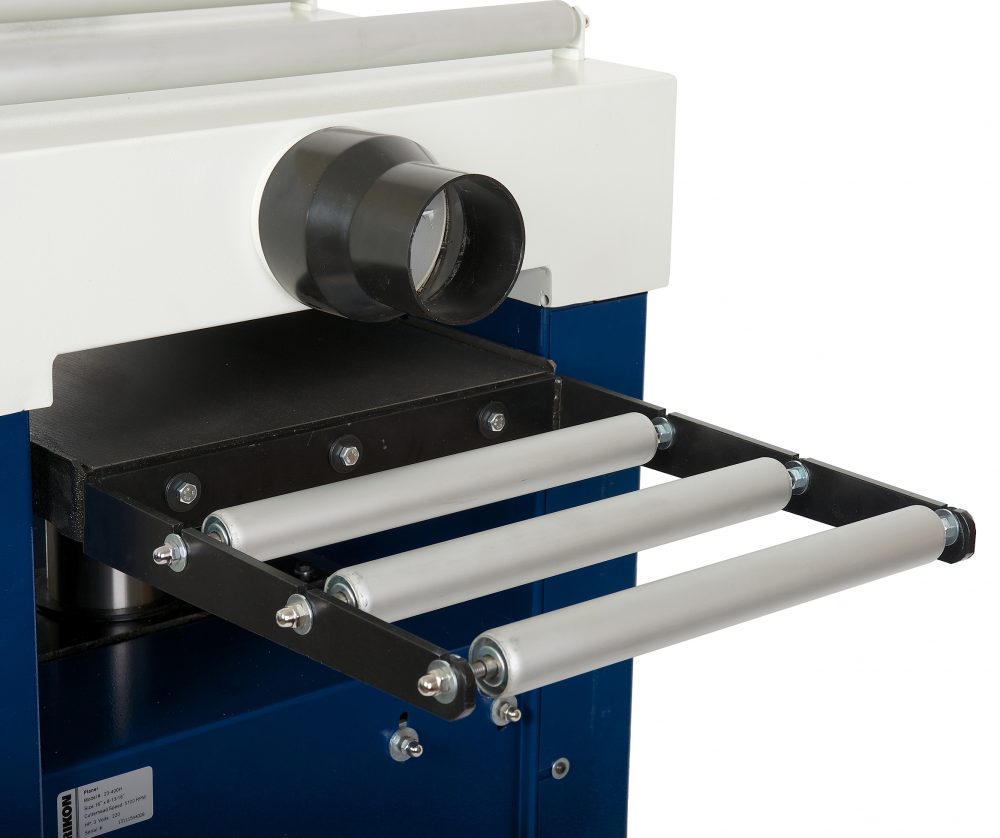

- Infeed/ Outfeed Rollers
- Adjustable Feed Rates
- Easy Blade Access
- Heavy Cast Iron Table
Tech Specs:
Motor
- Horsepower: 3 HP
- Amps: 12
- Volts: 220V, 60 Hz
- RPM: 1,400
Cutting Capacity
- Maximum Planer Capacity: 8-13/16”
- Maximum Planer Width: 16”
- Maximum Depth of Cut: 1/8”
Cutterhead
- Speed: 5,100 RPM
- Number of Inserts (4 Sided): 72
- Carbide Insert Size: 15mm x 15mm x 2.5mm
- Number of Cutterhead Insert Rows: 4
- Cuts Per Minute: 20,400
- Diameter: 2-3/4”
- Feed Speed: Variable 16 – 23 SF/MIN
Dust Port
- Dust Port Diameter: 1@4-3/4”
Overall
- Height: 42-1/2”
- Width: 55”
- Depth: 22-1/4”
- Base Size: 24-5/8” x 22-1/4”
- Net Weight: 375 lbs.
- Shipping Weight: 528 lbs.
- Shipping Carton: 32-1/4”x29-3/4”x48-3/4”
- Warranty: 5 years
