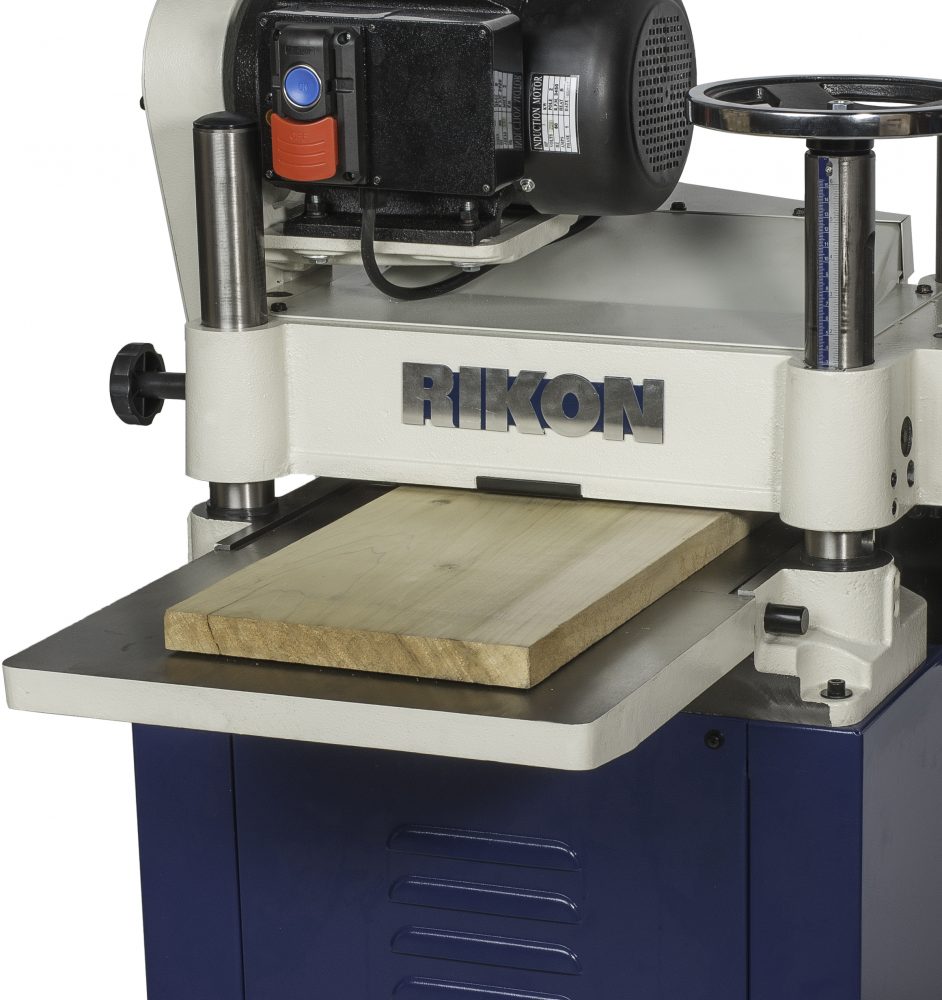

Rikon 15 In 3HP Planer with Helical Cutterhead - 23-150H

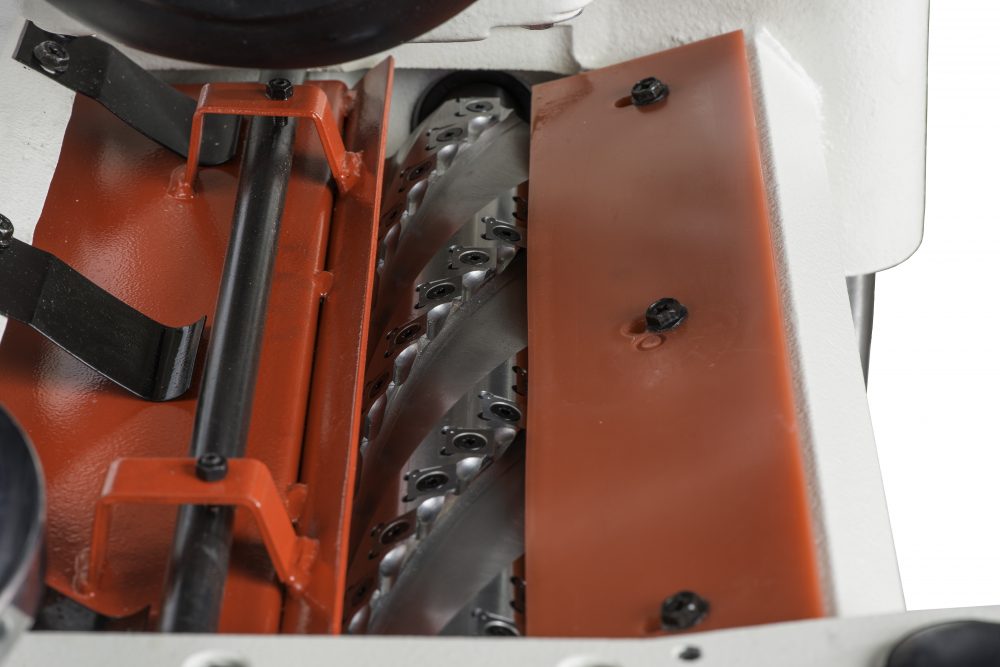

15” Helical Head Planer #23-150H also uses a big 3HP motor for running its 4-row helical cutterhead with 72 carbide, 4-sided insert cutters. Planer’s enclosed, heavy steel base cabinet for extra support and stability. Optional mobility kit (#23-959) makes moving it easy. Just press down on the foot pedal to activate the casters.
Features:
- "Motor-on-top” designs eliminate changing infeed and outfeed extensions and roller stands with every change of depth-of-cut
- Large, top hand wheel makes changing cutting depths easy

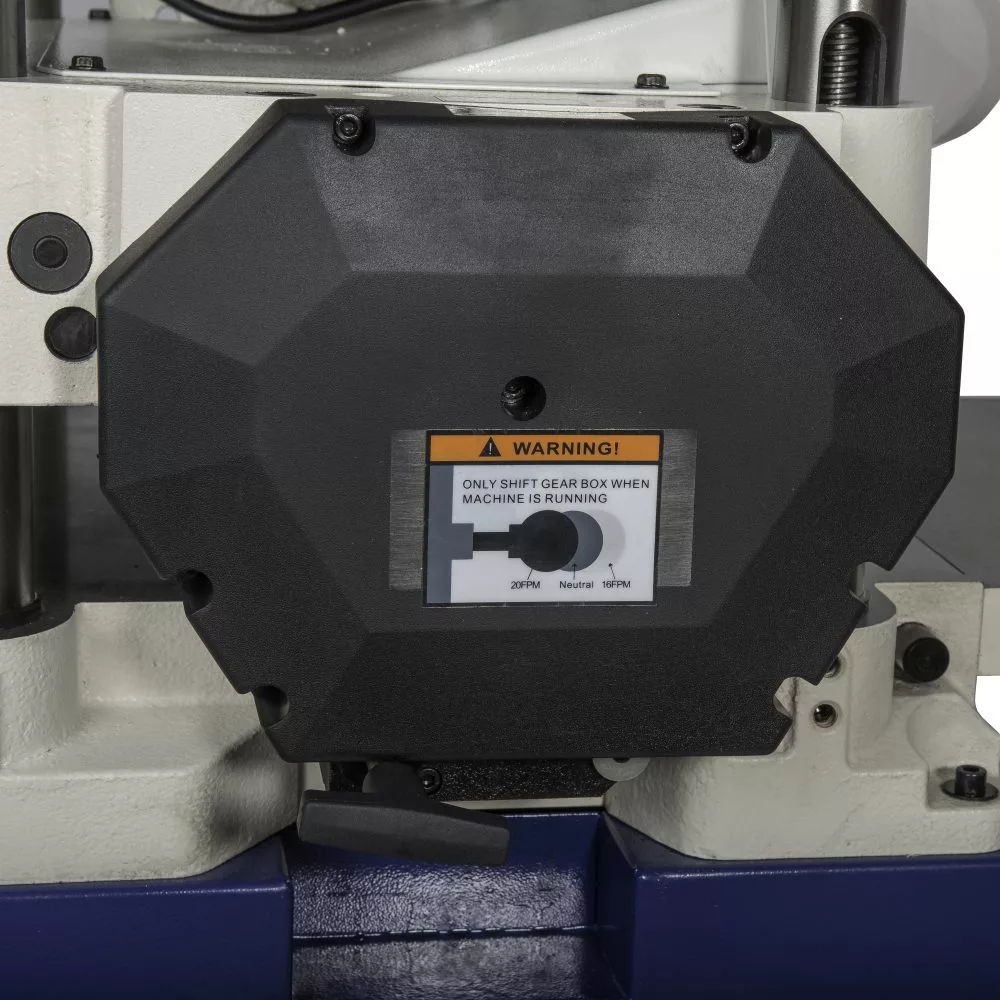

- Two feed rate speeds give best control of cutting action for milling various types of lumber
- Heavy cast iron tables give extra, rigid surfaces for planing
- Big 4 pillar supports stabilize the motor assembly to resist any flexing during use
Tech Specs:
Motor
- Horsepower: 3 HP
- Amps: 14
- Volts: 220V, 60 Hz
- RPM: 3,450
Cutting Capacity
- Maximum Planer Capacity: 8”
- Maximum Planer Width: 15”
- Maximum Depth of Cut: 1/8”
Cutterhead
- Speed: 5,000 RPM
- Number of Inserts (4 Sided): 72
- Carbide Insert Size: 14mm x 14mm x 2mm
- Number of Cutterhead Insert Rows: 4
- Cuts Per Minute: 20,000
- Diameter: 2-7/8”
- Feed Speed: 16 and 20 SF/MIN
Dust Port
- Dust Port Diameter: 1@4”
Overall
- Height: 47”
- Width: 44”
- Depth: 31”
- Base Size: 22” x 20”
- Net Weight: 490 lbs.
- Shipping Weight: 540 lbs.
- Shipping Carton: 32-1/4”x25-3/4”x46”
- Warranty: 5 years
