Rikon 15 In 3HP Planer Planer with 3 knife Cutterhead - 23-150
15” Planer #23-150 has a powerful 3HP motor driving a traditional, 3-row cutterhead with 3 High Speed Steel, single edge straight knives. Planer sits on an open, sturdy all-steel stand. Planer’s cast iron base includes 4 pull-out bars for lifting and moving the machine where needed in the shop.
Features:

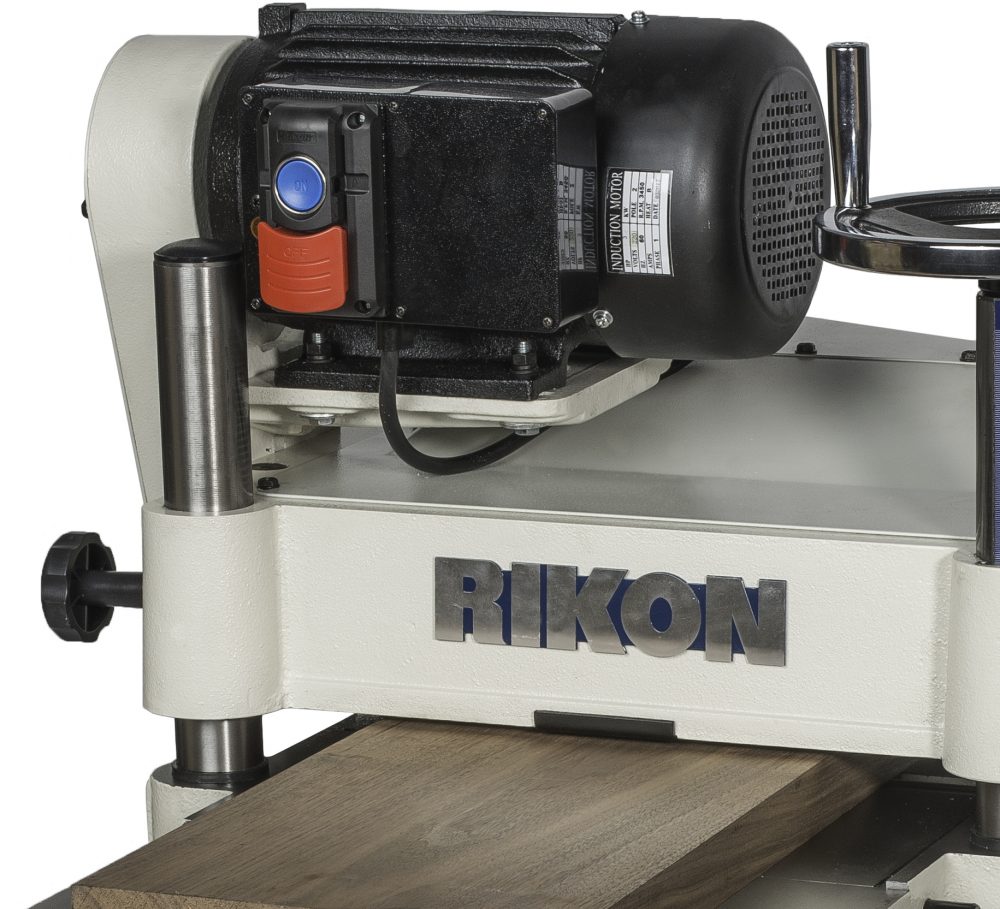

- "Motor-on-top” designs eliminate changing infeed and outfeed extensions and roller stands with every change of depth-of-cut
- Large, top hand wheel makes changing cutting depths easy

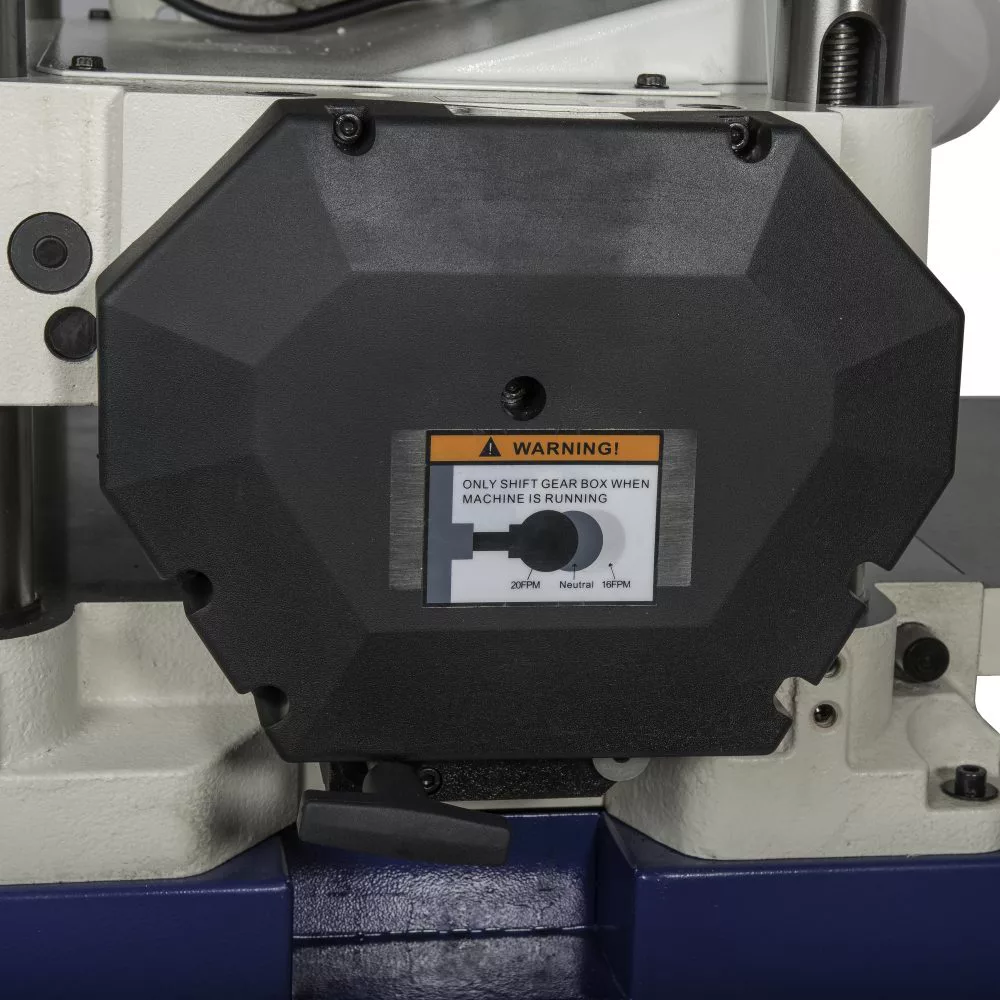

- Two feed rate speeds give best control of cutting action for milling various types of lumber
- Heavy cast iron tables give extra, rigid surfaces for planing
- Big 4 pillar supports stabilize the motor assembly to resist any flexing during use
Tech Specs:
Motor
- Horsepower: 3 HP
- Amps: 14
- Volts: 220V, 60 Hz
- RPM: 3,450
Cutting Capacity
- Maximum Planer Capacity: 8”
- Maximum Planer Width: 15”
- Maximum Depth of Cut: 1/8”
Cutterhead
- Speed: 5,000 RPM
- Number of HSS Knives: 3
- Cuts Per Minute: 15,000
- Diameter: 2-7/8”
- Feed Speed: 16 and 20 SF/MIN
Dust Port
Dust Port Diameter: 1@4”
Overall
- Height: 48”
- Width: 44”
- Depth: 31-1/2”
- Base Size: 31-1/2” x 29-3/4”
- Net Weight: 450 lbs.
- Shipping Weight: 497 lbs.
- Shipping Carton: 32-1/4”x26-3/4”x23-5/8”
- Warranty: 5 years
