Rikon 13 In Portable Planer w/Helical Style Cutterhead - 25-135H

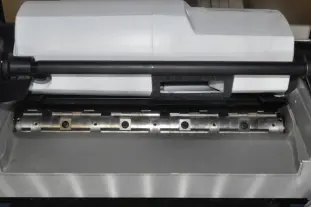

13” PORTABLE PLANER 25-135H features a six row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on two edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a two-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post threaded housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning, and side carry handles.
Features
- Powerful 15 AMP Motor
- Helical Style Cutterhead
- 2-Speed Feed Rate
- All Steel Construction
- Easy Blade Access
- Infeed/Outfeed Table Extensions
Product Specs:
Motor
- Horsepower –
- Amps: 15
- Volts: 115V, 60 Hz
- RPM: –
Cutting Capacity
- Maximum Planer Capacity: –
- Maximum Planer Width: 13”
- Maximum Depth of Cut: 1/16” @ 6”to 13”wide 1/8” within 6” wide
Cutterhead
- Speed: 10,000 RPM
- Number of HSS Knives: 26
- Cuts Per Minute: –
- Diameter: 2″
- Feed Speed: 16 & 26 SF/MIN
Dust Port
- Dust Port Diameter: 4” or 2-1/2" Diameter
Overall
- Height: 19-1/4”
- Width: 22”
- Depth: 34-1/4”
- Base Size: 22” x 13-3/8”
- Net Weight: 68 lbs.
- Shipping Weight: 76 lbs.
- Shipping Carton: 24-3/4”x16”x20-1/4”
- Warranty: 5 years
