Powermatic 54A Jointer 1PH 115/230V - 1791279DXK
The 6" Jointer features three auto-set knives that align themselves in the cutterhead for rapid knife changes. Oversized infeed/outfeed tables are mounted on dovetailed ways and have a built-in rabbeting ledge. The fence is 38" in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a powerful motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
Features:

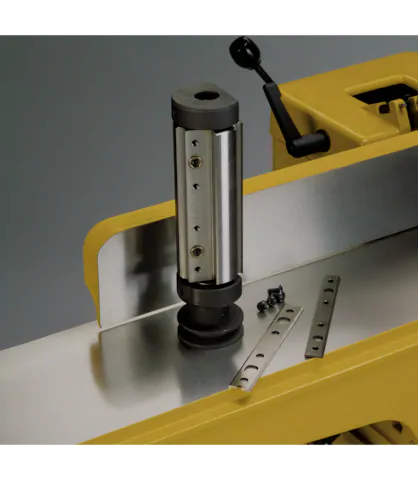

- The cutterhead features three high speed steel auto-set knives that automatically align themselves in the cutterhead
- 66" long adjustable infeed and outfeed tables provide more working surface
- Fine/quick adjustment lever on infeed table for precision cuts
- Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90° or bevel cuts
- Enlarged sheet metal stand provides a sturdy base
- Built-in ledge for 1/2" rabbeting capacity
- Fence controls are center-mounted for convenience
- Push button switch is lockable to prevent accidental starting
Specifications
- Type of Cutterhead: Straight w/ Quick Set Knives
- Number of Knives: 3 Straight High Speed Steel Knives
- Cuts Per Minute: 18,000
- Cutterhead Diameter (In.):2-1/2
- Cutterhead Speed (RPM): 6,000
- Cutting Capacity (W x D) (In.): 6 x 1/2
- Table Size (L x W) (In.): 66 x 7-1/4
- Table Height from Floor (In.): 31-1/2
- Infeed Table Length (In.): 32-1/2
- Outfeed Table Length (In.): 32-1/2
- Rabbeting Capacity (In.): 1/2
- Rabbeting Ledge (In.): 9 x 2-1/2
- Fence Size (L x H) (In.): 38 x 4-3/4
- Fence Tilt (Deg.): 45 Forward, 45 Backward
- Fence Positive Stops (Deg.): 45, 90, -45
- Dust Collection Minimum CFM Required (CFM): 600
- Dust Port Outside Diameter (In.): 4
- Motor Power (HP): 1
- Motor Phase: 1
- Motor Voltage (V.): 115/230
- Prewired Voltage (V.): 115
- Motor Current (Amps): 13/6.5
- Recommended Circuit Size (Amps.): 20/10
