Powermatic 4224B Lathe with Lamp Kit - 1794224K
The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we’ve ever built. It expands the limits of creative possibility, and takes your passion to a whole new level. With newly designed, top of its class features, the 4224B pushes the limits of design, innovation, and durability.
Features:

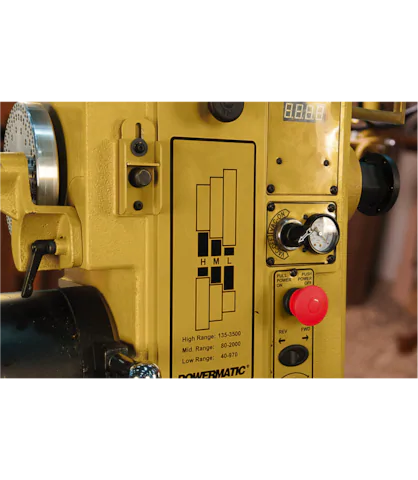

- Sliding headstock with electronic variable speed and digital RPM readout displays accurate speed

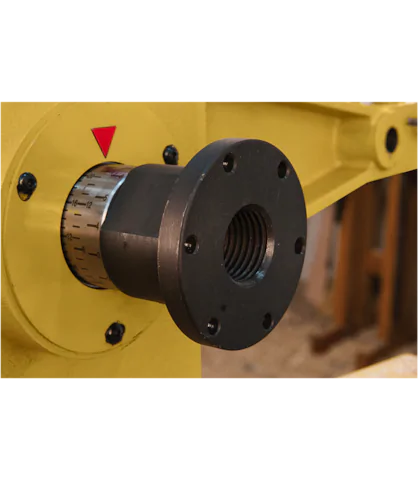

- Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
- 15-amp quad receptacle for easy reach of powered accessories
- Vacuum system provides quick method of chucking bowl blanks
- A variable frequency drive allows this machine to run on single or three-phase power
- Magnetic-backed moveable control box for customizable versatility and safety
- Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
- Air nozzle with quick connect for clearing dust/chips
- Set of dead centers which hold a spindle for visual comparison

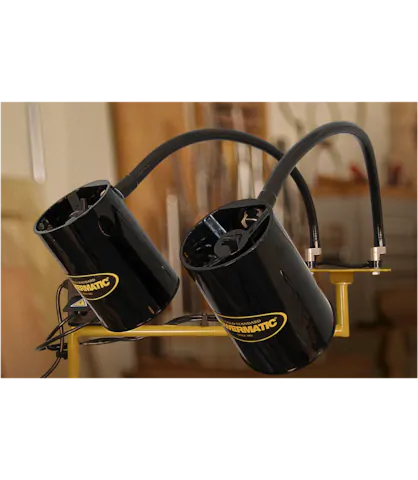

- Includes two 100W task lamps to provide ideal lighting and safety guard.
Specifications
- Style (Type): Leg Stand
- Swing Over Bed (In.): 24
- Swing Over Tool Rest Base (In.): 19-1/4
- Distance Between Centers (In.): 42
- Headstock Movement: Full Length of Bed
- Spindle Bore: 5/8
- Tailstock Bore: 3/8
- Spindle Taper: MT-2
- Quill Taper: MT-2
- Ram Travel Quill Travel: 4-1/2
- Spindle Threads (In. x TPI): 1-1/4" x 8 TPI
- Outboard External Threads (In. x TPI): M35 x 1.5 UNF
- Spindle Speeds: High 135-3500/Med 80-2000/Low 40-970
- Speed Range: 40-3500
- Number of Indexing Positions: 98
- Centerline of Spindle to Floor (In.): 44
- Outboard Turning: 88
- Bed Construction: Cast Iron
- Motor Power (HP): 3
- Motor Phase: 3
- Motor Voltage (V.): 230 only
- Prewired Voltage (V.): 230 only
- Wiring Remarks: VFD will accept 1 or 3 phase power
- Motor Current (Amps): 10
- Recommended Circuit Size (Amps.): 30
