BendPak 4 Post Vehicle Lift With Narrow Width 9,000 LB Capacity - HD-9STX

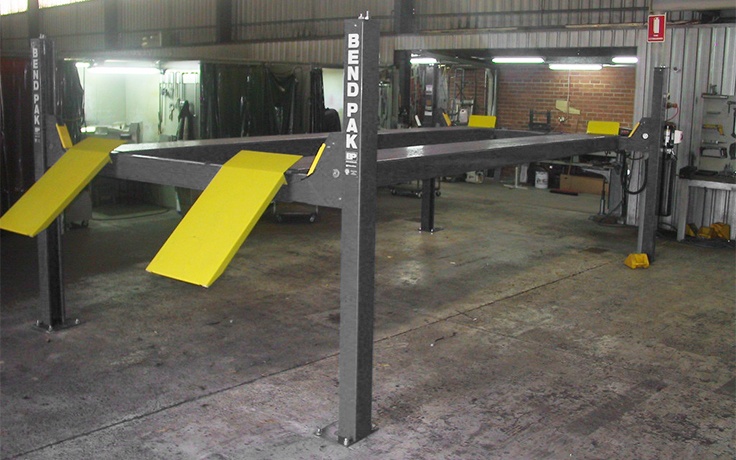

The HD-9STX is our tall and narrow four-post lift that combines a small horizontal footprint with extended-height runways, so higher-clearance vehicles can be easily parked underneath.
More Height in Less Floor Space

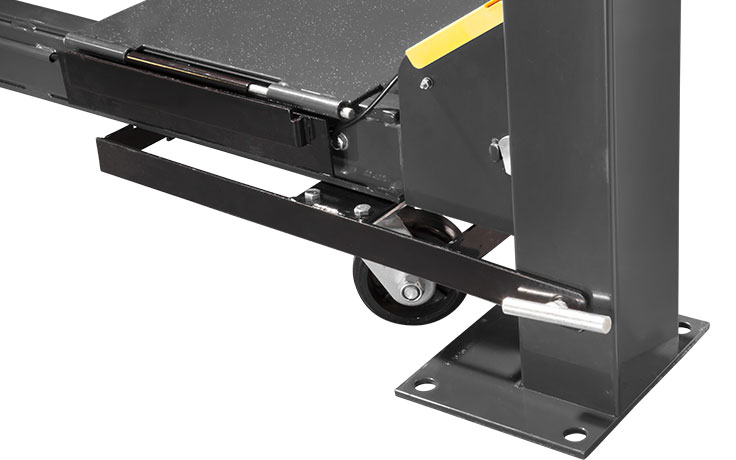

The HD-9STX is your 9,000-lb. rugged lifting solution for when you need get something heavy and high, but you don't have a lot of space on the ground. Perfect for vehicle storage and service—in the shop or garages with high ceilings. Whether you're a service professional or a DIY'er, BendPak’s got the right lift for you. This model is available with optional casters, drip-trays, jack platform and more.
With more height to work with, this lift does something others do not: it fits trucks and SUVs in the lower level. This is essential for parking purposes, especially if your lower-level vehicle is too heavy for the runways. A high-rise lift also increases the comfort of techs working underneath. Pulling transmissions and draining oil is safer and easier on high-rise car lift. The HD-9STX eliminates stooping and awkward straining when accessing the vehicle underbody. When you’re uncomfortable, you’re more likely to make mistakes, and there’s nothing better than a car lift that lifts to the perfect height. The HD-9STX maximizes versatility in a car lift that adapts to your height and lifestyle. The narrow designs fits in the same floor space as the HD-9ST but requires a bit more ceiling height to fully enjoy.
Features & Specs
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Freestanding design
- Narrow-width
- High-rise

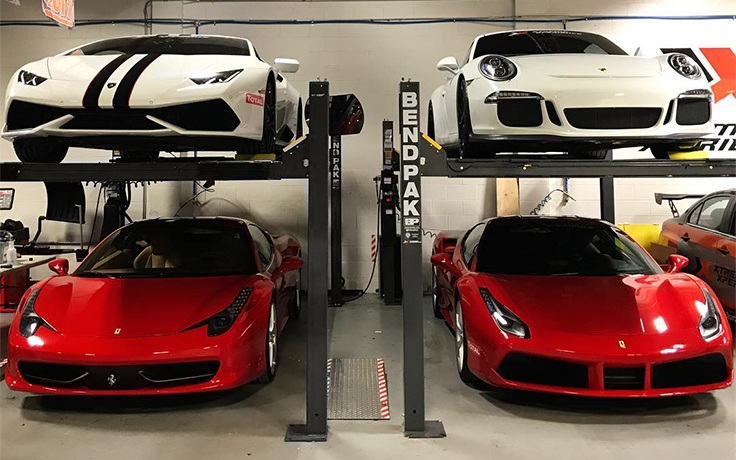

- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system

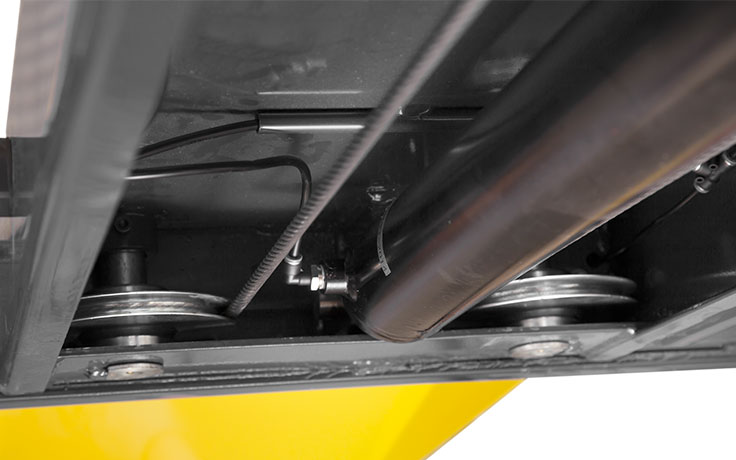

- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Capacity
Lifting Capacity* 9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
Rise
A - Min. Runway Height: 4.5" (114 mm)
B - Max. Rise: 82" (2,083 mm)
C - Max. Lifting Height: 86.5" (2,197 mm)
Time to Full Rise: 50 seconds
Outside Dimensions
D - Overall Width: 100.25" (2,546 mm)
E - Outside Length: 198" (5,029 mm)
F - Overall Length: 224" (5,690 mm)
G - Height of Columns: 100" (2,540 mm)
Inside Dimensions
H - Width Between Columns: 89.75" (2,280 mm)
I - Drive-Thru Clearance: 76.5" (1,943 mm)
Runways
J - Runway Width: 19" (483 mm)
K - Length of Runways: 188" (4,775 mm)
L - Width Between Runways: 37.5" (953 mm)
M - Runway Centerline: 56.5" (1,435 mm)
N - Outside Edge of Runways: 75.5" (1,918 mm)
Minimum Wheelbase
Rated Capacity: 135" (3,429 mm)
75% Capacity: 115" (2,921 mm)
50% Capacity: 95" (2,413 mm)
25% Capacity: 80" (2,032 mm)
Locking
Locking Positions: 15
Lock Spacing: Every 4" / 102 mm
Power Unit
Motor: 220 VAC / 60 Hz. 1Ph.
Noise: 45 dB
Shipping
Weight: 1,782-lbs. (808.3 kg)
Dimensions: 190'' x 22'' x 35'' (4,826 mm x 559 mm x 889 mm)
