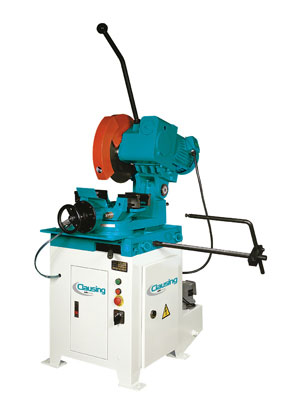

Clausing Kalamazoo 14 In Pneumatic Vice Circular Saw - FHC350P
Standard Features…
- 230v/460v/60/3 Electricals
- Triger Operated On Off in Handle Grip
- Totally Enclosed Fan-Cooled Motor
- Enclosed Worm Gear Drive for Trouble-free Operation
- Two Speeds for Versatility
- Cast Iron Construction
- Self-Centering Vise with Angle Scale
- Head Rotates 45 Degrees Left and Right of Center
- Flood Coolant System
- Heavy Duty Sheet Metal Base
- Adjustable Stock Stop
- Tool Kit
- Circular Saw Blade
- Operation and Maintenance Manual
- Two (2) Year Limited Warranty
SPECIFICATIONS:
- Drive Motor: 2/3 Hp
- Angles (left & right): 45°
- Electricals: 230v. or 460v. - 3ph
- Control: 110v.
- Coolant: Standard
- Spindle Speeds: 26/52 rpm
- Max. Blade Size: 10-14"
- Max. Vise Opening: 6"
- Recommended Cutting Capacity
- Round tube @ 90°: 4.33"
- Round tube @ 45°: 2.95"
- Square tube @ 90°: 4.33"
- Square tube @ 45°: 3.54"
- Rectangular tube @ 90°: 4.33" x 3.54"
- Rectangular tube @ 45°: 4.33" x 2"
- Round solid @ 90°: 2.36"
- Round solid @ 45°: 2"
- Square solid @ 90°: 2"
- Square solid @ 45°: 1.77"
- Dimensions
- Machine Dimensions LxWxH: 55" x 41" x 75"
- Shipping Dimensions LxWxH: 30" x 42" x 60"
- Net Weight: 660 lbs.
- Shipping Weight: 792 lbs.
Request a Quote Today!
This item requires additional attention to provide you with the most competitive delivered price. We welcome you to request a quote by adding the item to your cart and proceeding through the checkout steps. When prompted for payment information, simply select ‘Quote Request’ and continue on. A specialist will be notified and contact you straight away with a complete quote!
