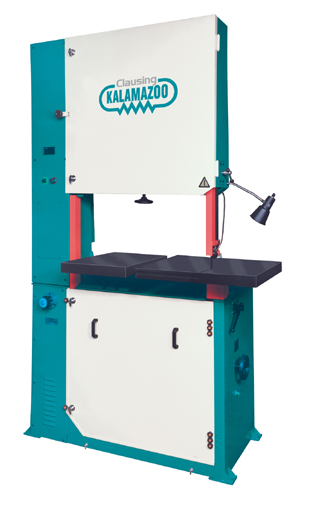

Clausing Kalamazoo 14x40 In Vertical Bandsaw Hydraulic Table - V4014H
Standard Features…
- 230/460/60/3 Electricals
- Magnetic Starter with 110V Control Circuit and Overload Protection
- 5 Hp TEFC Motor, with Brake (full stop from max. speed within 10 seconds)
- Dual Range Transmission
- Sets of (4) Blade Guide Sizes w/ Back-up Roller (1/16, 1/8, 3/16, 1/4, 3/8, 1/2, 5/8, 3/4, 1)
- 29 (737mm)W x 27 (686mm)L Heavy Duty Cast Iron Table with two-way tilt (15L & 45R)
- 29-1/2 (749mm)W x 27-.1/2 (699mm)L Heavy Duty Cast Iron Table with two-way tilt (15L & 45R) Four (4) T-Slots on Top (Hydraulic table only) Table Travel 13 (330mm)
- Auxiliary Table 19" (483mm)W x 26-3/4 (679mm)L
- Bonded Rubber Band Wheels
- 110V Work Light
- Built-in Air Chip Blower
- Blade Tension Indicator
- Blade Speed Indicator
- Rip Fence
- 1 (25.4mm) Carbon Hardback Blade
- Locking Band Wheel Doors
- Operation and Parts Manual
- Two (2) Year Limited Warranty
SPECIFICATIONS:
- Throat: 40
- Work Height: 14
- Table Height: 54
- Drive Motor: 5 Hp
- Blade Length: 262.5 - 263
- Blade Width: 1/8-11/4
- Blade Speed (fpm): 50-5200
- Dimensions
- Length: 72
- Width: 41
- Height: 113
- Net Weight: 3,395 lbs.
- Shipping Weight: 3,627 lbs.
