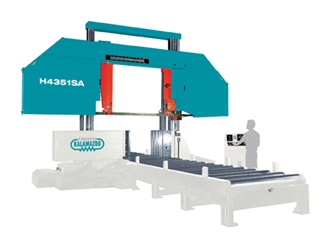

Clausing Kalamazoo 43.3 in Semi-Automatic - H4351SA
Standard Features…
- The extra heavy-duty saw frame is supported by two large bore hydraulic cylinders, providing unsurpassed rigidity, and the smoothest cutting possible
- Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle
- Specially designed planetary gear reducer for optimum mechanical efficiency
- Inverter controlled infinitely variable blade speed with blade speed indicator
- Independent wire brush system
- Hydraulically powered guide arm is positioned from the control panel
- Hydraulic Blade Tension System, with easy to read pressure gauge
- Carbide blade guides are activated hydraulically
- Additional blade guiding bearings for extra support
- Heavy cast iron moveable Guide Arm is hydraulically powered from the control panel
- Last Cut function
- User-friendly control panel
- Precision Feed Pressure control valve with micro-precision adjustment
- Saw Blade Height Selector
- Hydraulic driven work bed with rollers for moving large material safely
- Three sets of vises design. The front and middle vises hold the stock during cutting while the guide vise can be separately controlled to guide the material during feeding cycle
- Stock position cylinder pushes stock away from fixed vise for easy material handling
- Shadow light for material measurement
- Blade breakage and/or slippage detector
- Bi-metal saw blade
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
SPECIFICATIONS:
- Motor: 15 Hp (11.2 kw), 230/460v 3ph
- Hydraulic Pump Motor: 3 Hp
- Hydraulic Oil Capacity: 35 gallons
- Blade Speeds (Variable speed): 49-264 fpm (20-100 m/min)
- Blade Size (W x T x L): 3.1" x .063" x 433"
- Blade Tension: Hydraulic
- Coolant: Recirculating
- Coolant Capacity: 44 gallons
- 90° Cutting Capacity:
- Round: 43.3"
- Square: 43.3"
- Rectangular: 43.3" x 51.2"
- Bundle Cutting Width:
- Bundle Cutting Height:
- Length of Remnant Auto:
- Feed Length/Index:
- Max. Feed:
- Length: 86.6"
- Width: 193"
- Height: 137.8"
- Height (head up):
- Bed Height: 24.4"
- Net Weight: 30,140 lbs
- Shipping Weight: 33,455 lbs
Request a Quote Today!
This item requires additional attention to provide you with the most competitive delivered price. We welcome you to request a quote by adding the item to your cart and proceeding through the checkout steps. When prompted for payment information, simply select ‘Quote Request’ and continue on. A specialist will be notified and contact you straight away with a complete quote!
