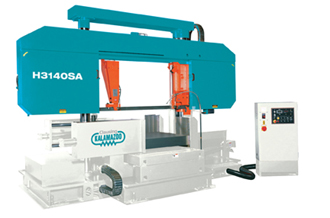

Clausing Kalamazoo 31.6 in Semi-Automatic - H3140SA
Standard Features…
- The extra heavy-duty saw frame is supported by two large bore hydraulic cylinders, providing unsurpassed rigidity, and the smoothest cutting possible
- Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle
- Large diameter cast iron bandwheels
- Inverter drive with infinitely variable blade speeds with blade speed indicator
- Hydraulic controlled tungsten carbide blade guide
- Groove shaped designed blade guides
- Hydraulic controlled blade tension device
- Hydraulic driven guide arm
- Proximity switch for sensing blade slippage or breakage
- Independent wire brush drive system
- Last cut function automatically stops the machine and shuts down the hydraulic system at the end of the last cut
- Two full stroke cylinder Vices
- Discharge table with built-in coolant return
- Heavy-duty machine structure design for heavy cutting jobs
- Precise flow control valve to finely adjust the cutting speed
- Additional flushing hose
- Bi-metal saw blade
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
SPECIFICATIONS:
- Motor: 15 Hp (11.2 kw), 230/460v 3ph
- Hydraulic Pump Motor: 3 Hp
- Hydraulic Oil Capacity: 26 gallons
- Blade Speeds (Variable speed): 49-264 fpm (20-100 m/min)
- Blade Size (W x T x L): 2.6" x .063" x 346.5"
- Blade Tension: Hydraulic
- Coolant: Recirculating
- Coolant Capacity: 32 gallons
- 90° Cutting Capacity:
- Round: 31.5"
- Square: 31.5"
- Rectangular: 31.5" x 39.4"
- Bundle Cutting Width:
- Bundle Cutting Height:
- Length of Remnant Auto:
- Feed Length/Index:
- Max. Feed:
- Length: 90"
- Width: 169"
- Height: 105"
- Height (head up):
- Bed Height: 25.2"
- Net Weight: 22,000 lbs
- Shipping Weight: 23,320 lbs
