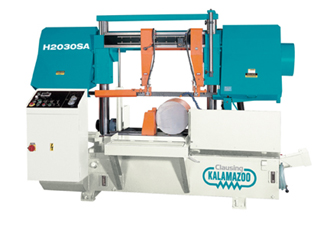

Clausing Kalamazoo 20 in Semi-Automatic - H2030SA
Standard Features…
- Twin column design insures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
- Infinitely variable blade speed
- Digital blade speed indicator
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- Automatic shutoff at end of material or after preset number of cuts
- LCD digital blade speed monitor
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
SPECIFICATIONS:
- Motor: 7.5 Hp (5.5 kw), 230/460v 3ph
- Hydraulic Pump Motor: 2 Hp
- Hydraulic Oil Capacity: 10 gallons
- Blade Speeds (Variable speed): 66-328 fpm (20-100 m/min)
- Blade Size (W x T x L): 2" x .063" x 238 "
- Blade Tension: Hydraulic
- Coolant: Recirculating
- Coolant Capacity: 21.5 gallons
- 90° Cutting Capacity:
- Round: 20"
- Square: 20"
- Rectangular: 20" x 29.5"
- Bundle Cutting Width:
- Bundle Cutting Height:
- Length of Remnant Auto:
- Feed Length/Index:
- Max. Feed:
- Length: 55.5"
- Width: 124"
- Height: 79"
- Height (head up):
- Bed Height: 27.5"
- Net Weight: 4,620 lbs
- Shipping Weight: 5,720 lbs
