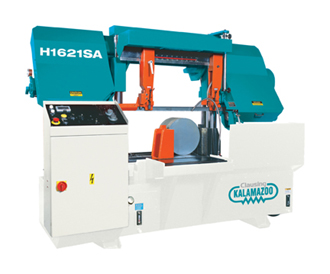

Clausing Kalamazoo 16 in Automatic - H1621SA
Standard Features…
- Twin column design insures rigid support during cutting cycle by keeping the blade parallel and square to the work piece
- Infinitely variable blade speed by inverter
- Digital blade speed indicator
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- LCD digital blade speed monitor
- Precision feed pressure & feed rate
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
SPECIFICATIONS:
- Motor: 7.5 Hp (5.5 kw), 230/460v 3ph
- Hydraulic Pump Motor: 2 Hp
- Hydraulic Oil Capacity: 8.75 gallons
- Blade Speeds (Variable speed): 66-328 fpm (20-100 m/min)
- Blade Size (W x T x L): 1.6" x .050" x 208.7"
- Blade Tension: Hydraulic
- Coolant: Recirculating
- Coolant Capacity: 23.75 gallons
- 90° Cutting Capacity:
- Round: 16.5"
- Square: 16.5"
- Rectangular: 16.5" x 21.6"
- Bundle Cutting Width:
- Bundle Cutting Height:
- Length of Remnant Auto:
- Feed Length/Index:
- Max. Feed:
- Length: 43.3"
- Width: 100.4 "
- Height: 74.8 "
- Height (head up):
- Bed Height: 27.5"
- Net Weight: 3,960 lbs
- Shipping Weight: 5,060 lbs
