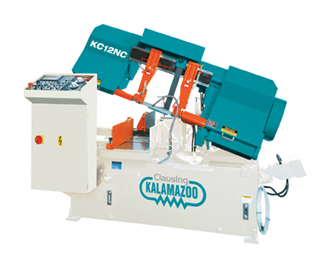

Clausing Kalamazoo 12 in Automatic Bandsaw - KC12NC
Standard Features…
- Oversized hydraulic cylinder
- Hydraulic shuttle vice assembly
- Inverter controlled infinitely variable speed
- Carbide blade guides with roller bearings
- Two additional guides to support the blade from the top
- Automatic hydraulic blade tensioning
- Power driven blade brushes
- Integral coolant system
- Smart NC-100 technology programmable up to 100 different jobs
- Easy recal and execution of stored parts
- Automatic shutoff after preset number of cuts or when out of stock
- 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
- Automatic kerf loss compensation & computer controlled multiple indexing
- Precision feed pressure & feed rate
- Bundle/single cutting mode switch
- Automatic height setting feature
- Hydraulic front and rear vises
- Cast iron vises with replaceable hardened wear plates
- Discharge table with built-in coolant return
- Blade slippage or breakage detection
- Adjustable cut-off stock fence
- Additional flushing hose
- Bi-metal saw blade
- Built in work light
- Tool box, leveling pads, and an additional wire brush
- Operation & parts manual
- Two (2) year limited warranty
SPECIFICATIONS:
- Motor: 5 Hp (3.75 kw), 230/460v 3ph
- Hydraulic Pump Motor: 1 Hp
- Hydraulic Oil Capacity: 6.6 gallons
- Blade Speeds (Variable speed): 66-330 fpm (20-100m/min)
- Blade Size (W x T x L): 1.25"x.042"x150.4"
- Blade Tension: Hydraulic
- Coolant: Recirculating
- Coolant Capacity: 11.9 gallons
- 90° Cutting Capacity:
- Round: 11.81"
- Square: 11.81"
- Rectangular: 13.4" x 11.81"
- Bundle Cutting Width: 7.48" to 11.81"
- Bundle Cutting Height: 2.75" to 5.51"
- Feed Length Remnant Auto: 1.97"
- Feed Length/Index: 15.86"
- Max. Feed: 255.9"
- Length: 84"
- Width: 86"
- Height: 60"
- Height (head up): 76.7"
- Bed Height: 26"
- Net Weight: 3,528 lbs
- Shipping Weight: 3,970 lbs
