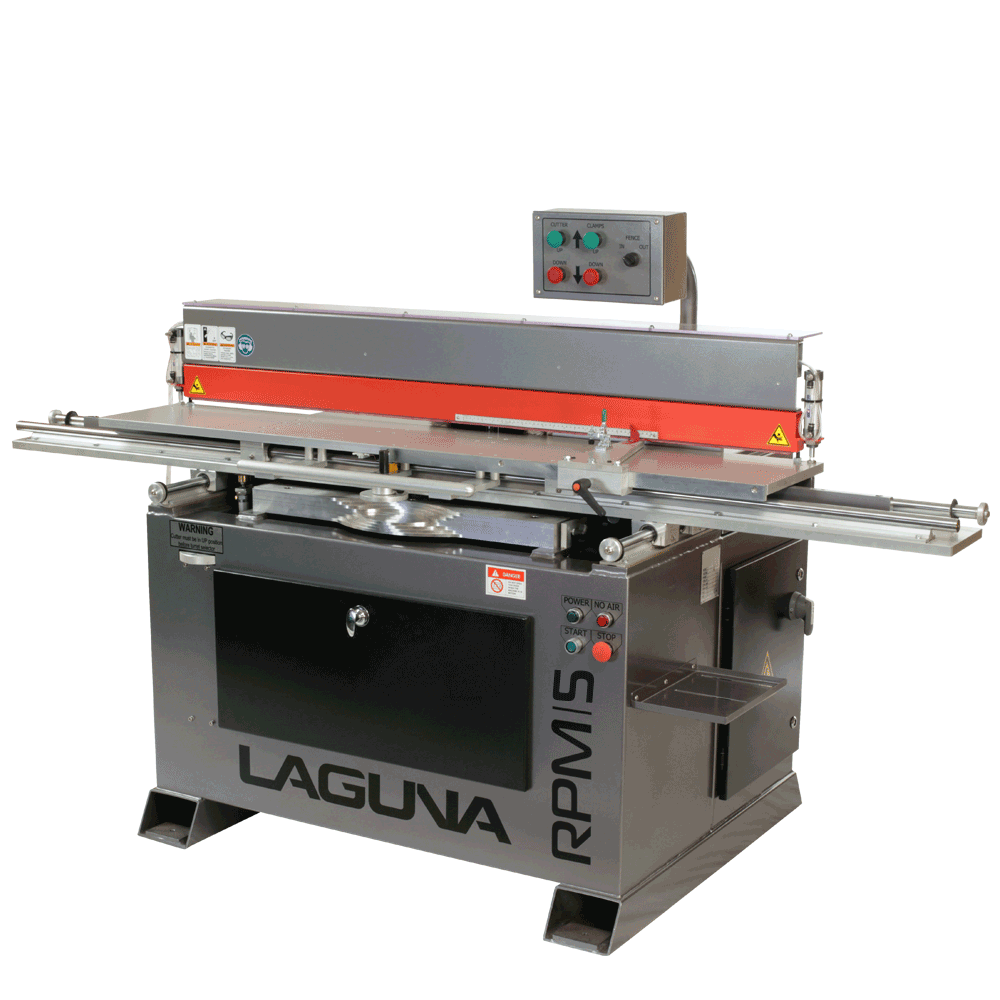

Laguna Raised Panel Master 5 - MDM2050-0148
Laguna is proud to introduce our latest Industrial Series machine, the Raised Panel Master 5. This machine is designed to allow a single operator to produce a complete cabinet door in less than 2 minutes. The single-piece welded steel frame provides the ultimate support for chatter-free work.
The heart of the machine is a shaper spindle which holds all five cutters needed to produce a door. The spindle is powered by a 10 HP motor for smooth cuts and is quickly positioned from the front of the machine with a dial. The turret system insures complete accuracy without test cuts and the pneumatically controlled spindle height is quickly set. The 2 axis sliding table rides on linear bearings in all directions and includes a pneumatic hold-down clamp for quick setup. The pneumatic EZ fence quickly positions stock for the next cut. A large diameter tracer bearing provides perfect control for straight and curved template following.
– Includes Carbide Insert Tooling Made in the USA
Specs:
- Motor: 10hp 220v 3-phase w/ VFD
- Speed range: 6000 to 8000 RPM
- Spindle: 1.25″ Diameter x 7.25″Height
- Cutter capacity: up to 7″ Diameter
- Compressed air requirement: 90 PSI 1 CFM
- Dust port: 5″
- Maximum arch height: 2 standard
- Maximum material thickness: 1.25″
- Maximum arch width: 24″
- Weight: 1500 lbs
