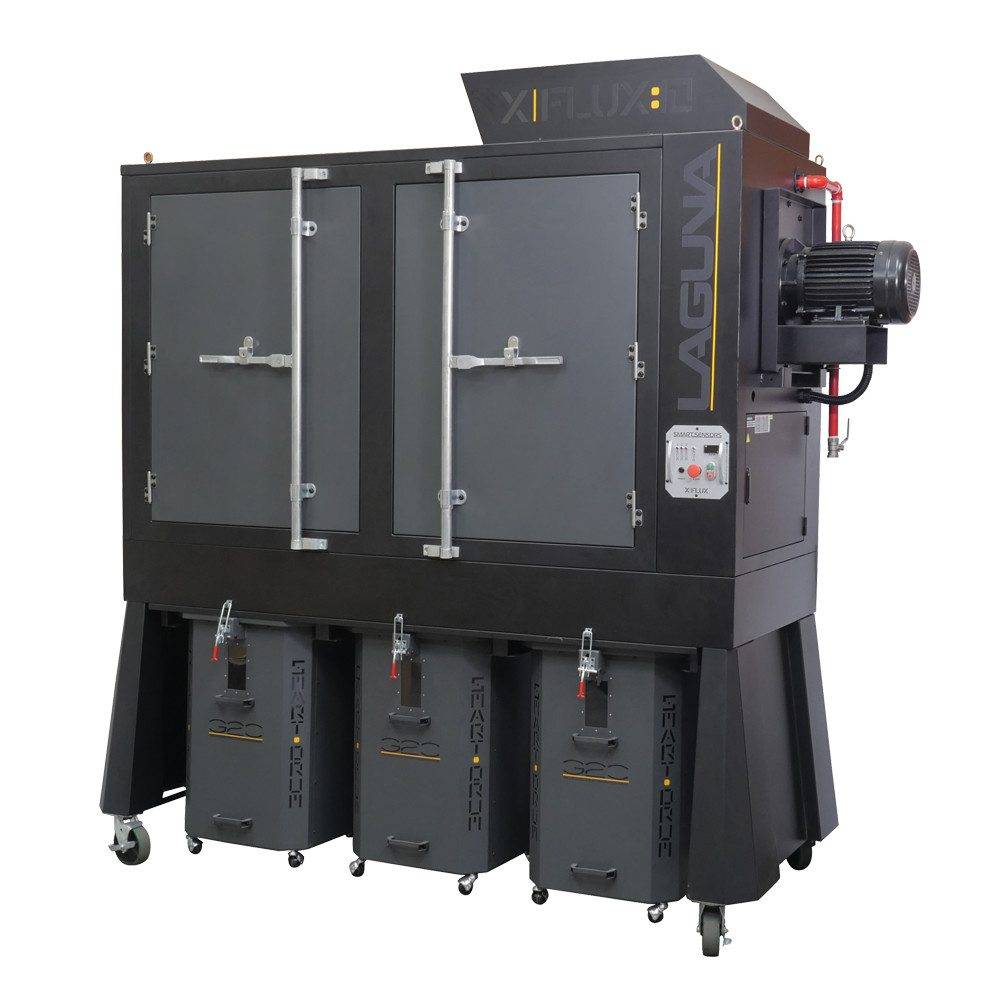

Laguna X|Flux: 10HP Industrial Dust Collector - MDCXF102203
Features:

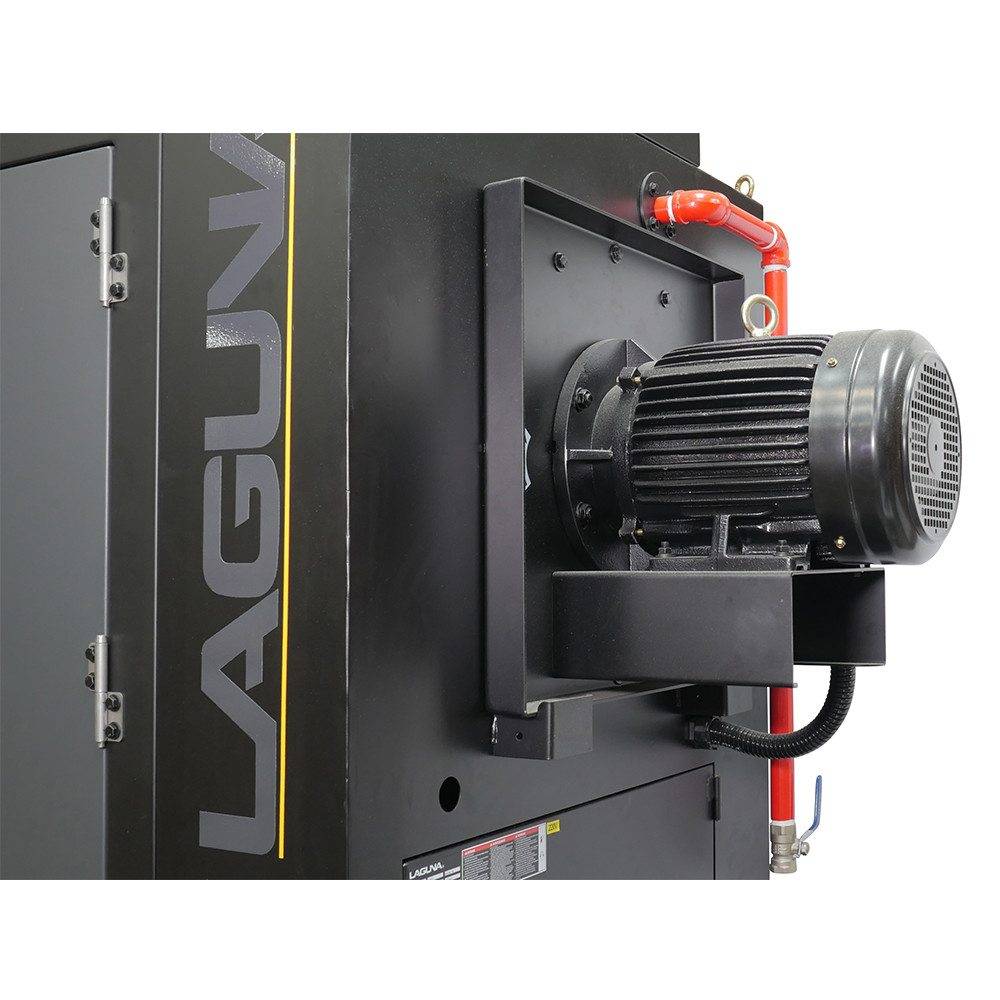

- Motor HP: 10 HP
- Phase: 3
- Voltage: 220V
- Amps: 28 Amps
- Recommended Breaker: 50 AMP
- Hertz: 60
- Plug: No
- RPM: 3450
- Main Motor Switch: Radio Frequency

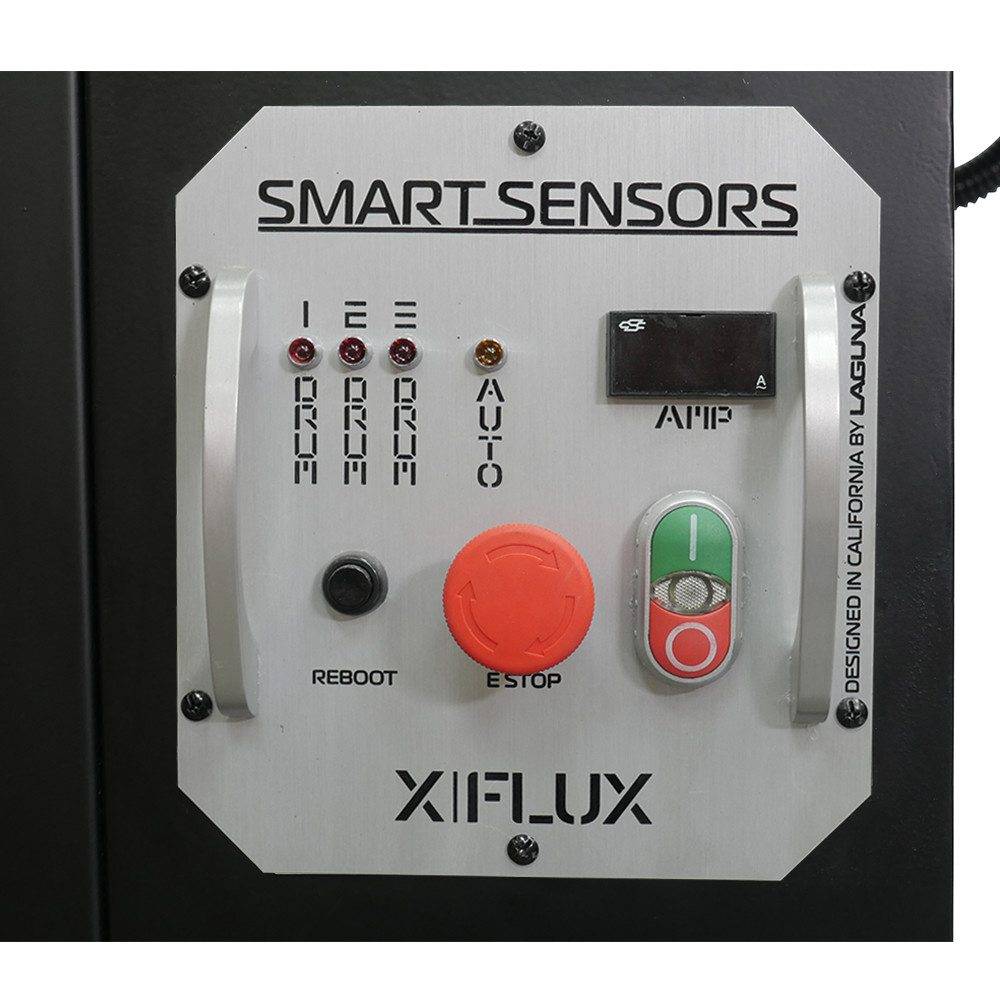

- Control Panel: Anodized Aluminum
- Hand Held Remote Control: HF (High Frequency)
- LED Warning Light Empty Drum: Yes
- Canister Auto Clean controlled by Timer: Yes
- Shop Setting CFM: 4700
- Inlet CFM: 8070
- Max Static Pressure (inches of water): 11″
- Impeller/Fan Size: 15.5″
- Impeller Material: Steel
- Impeller Type: Radial Fin
- Balancing of Fan: ISO 1940
- Inlet Diameter: 12″
- Drum Capacity: 54 Gal. X 3
- Octagon Drum: Low pressure suction, swiveling casters
- Drum collection Bag (Dia. x L): Plastic bag 29″ x 51″L

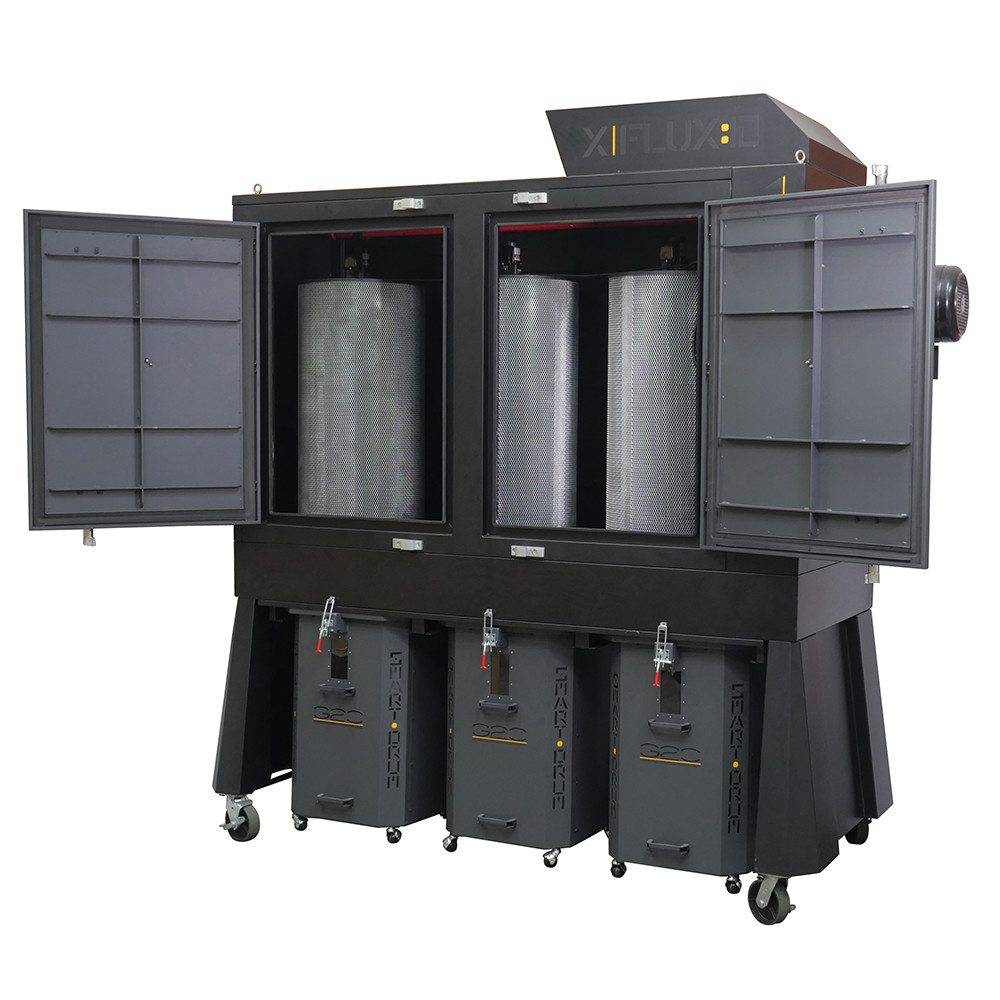

- Canister Filter Type: White 1 Micron
- Filtration Efficiency: 0.2-2micron @99.97%
- MERV Rating: 12
- Canister Diameter: Ø500mm (19.69″)
- Canister length: 900mm (35.43″)
- Filter Surface Area:” ”24.3m2 , 261.6 ft2″
- Canister Cleaning: Timed auto clean 2 x 10 seconds pr. work hour
- Canister Filter Lower: Plastic bag 29″ x 24″L
- Wheels: 6” industrial swiveling
- US/CSA Approved : Yes
- Decibel Reading: 80 d B(A) (@9.8ft)
- Assembled Dimensions (L x W x H) 104” x 49” x 106”
- Machine weight: 750kgs, 1653 Lbs.
- Shipping weight: 830kgs, 1829 Lbs
