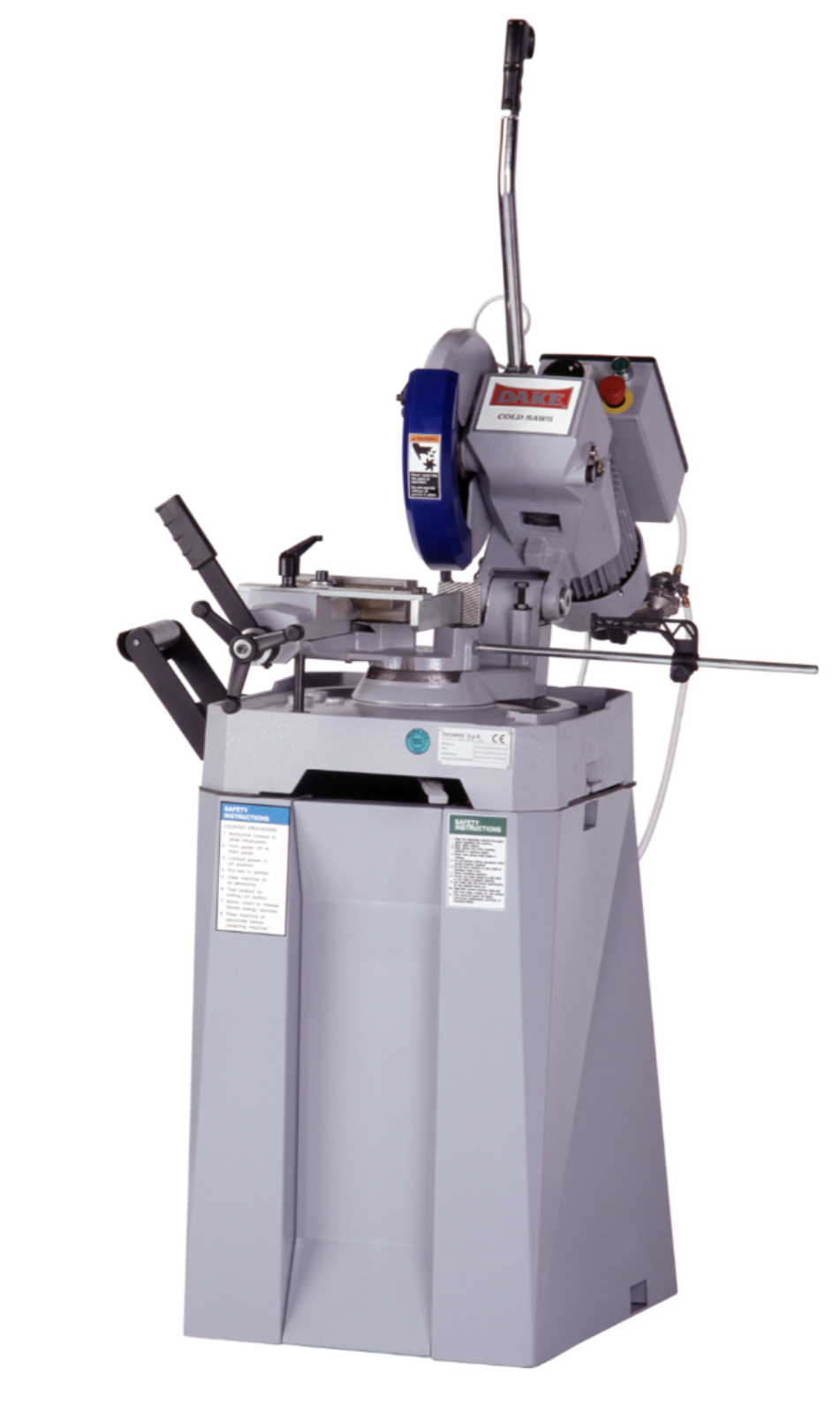

Dake 14" Manual cold saw 220v-3 ph - 974029-2
Manual cold saw that will rotate to 90º right for slot cutting and offers variable speeds. Heavy-duty low production variable speed saw, comes with one standard HSS blade. A mechanical coolant pump with flow control is included. Available in 220V or 440V operation.
FEATURES:
- Head rotates 45º right and left of center for mitering.
- Dependable oversized spindle and gear assembly with steel spindle and bronze gear.
- Reliable mechanical coolant pump with flow control adjustment.
- Vise is gib adjustable, and with cam lever action for quick secure clamping.
- Additional ball bearing support of hardened and ground spindle shaft to prevent failure.
- 24V at controls, E-Stop, low voltage protection, and thermal overload protection.
- 90º rotation for slot cutting operations.
STANDARD EQUIPMENT:
- Blade
- Pedestal Base
- Tool Kit
- Gallon of Coolant
- Adjustable Positive Stop
SPECIFICATIONS:
- Part Number: 974029-2
- Voltage: 220V/ 440V with transformer
- Horsepower: 3.5
- Cutting Ability: Ferrous/non-ferrous/plastics
- Maximum blade diameter: 14”
- Maximum vise opening: 6-5/8""
- Maximum feed vise opening: n/a
- Maximum Angle: 45° left/right; 90° right for slot cutting
- Slotting: yes
- Phase: 3
- Speeds: 22-88 rpm
- Weight: 650 lbs
- Solid round 90˚ capacity: 3-3/8”
- Solid round 45˚ capacity: 3”
- Tube 90˚ capacity: 4-3/4”
- Tube 45˚ capacity: 4”
- Square 90˚ capacity: 4-1/8”
- Square 45˚ capacity; 3-3/8”
- Rectangle 90˚ capacity: 6-1/4” x 3-1/2”
- Rectangle 45˚ capacity: 3-3/8” x 2-3/4”
- Work height: 40”
- Height: 75”
- Width: 24-3/4"
- Depth: 23”
