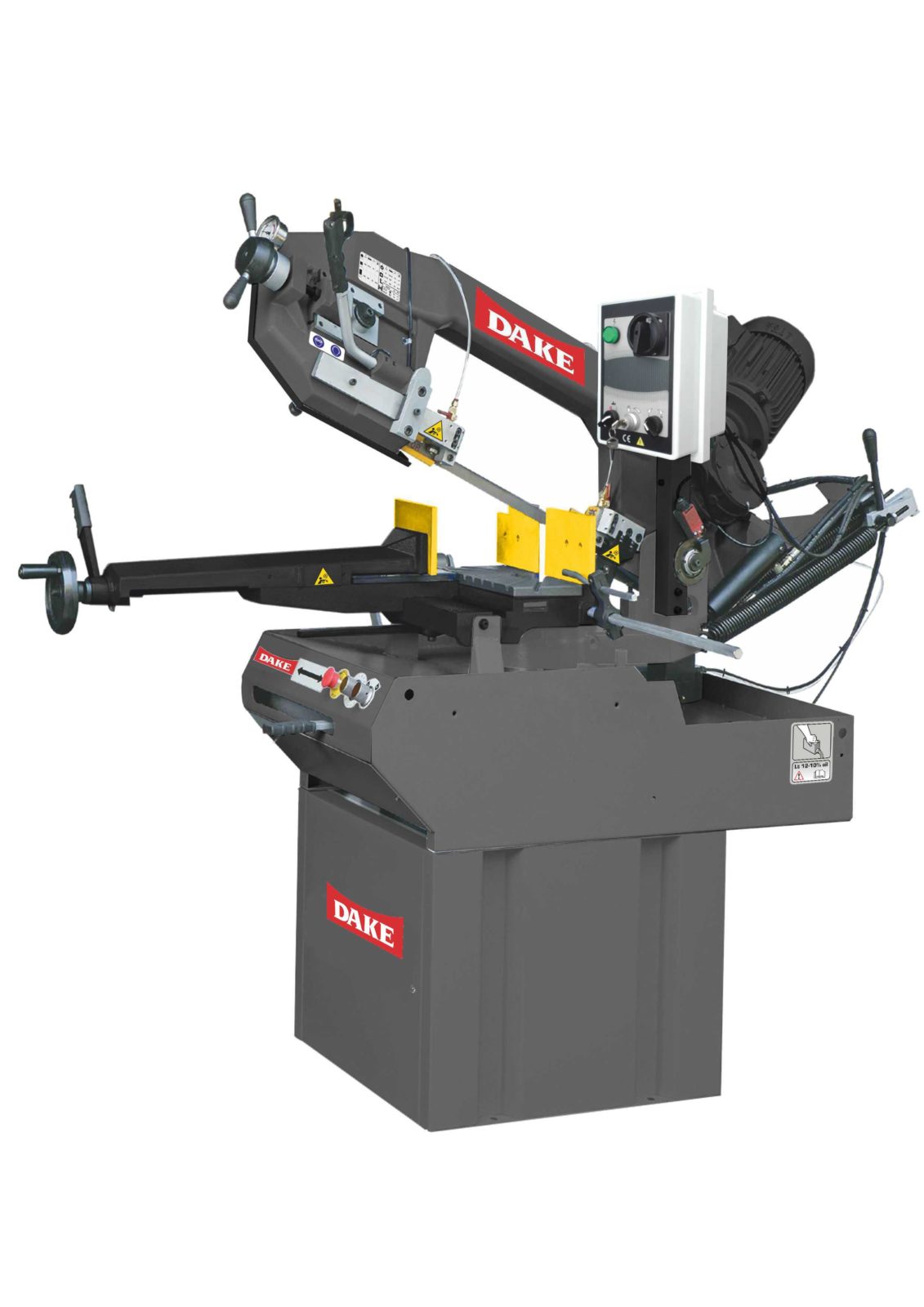

Dake Hydraulic controlled 10" dual mitering bandsaw, 220v-3 ph - 983112-2
Heavy duty, low production saw that comes with one standard Bi-metal blade. Hydraulic controlled downfeed with automatic shut off at the end of the cut. 2.75HP, 220V motor with up to 60°right mitering capabilities. Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut.
FEATURES:
- Hydraulic controlled down feed with adjustable manual return
- Automatic shut off at the end of the cut
- Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut
- Powerful, flame tempered, manual clamping vise. Hand wheel adjusted with quick release lever for rapid vise opening and closing action. The vise clamps material firmly
- Traversing vise can be used left or right of the blade
- Ergonomic designed for operator’s comfort and control
- Gearbox is direct bolted to the bow for less vibration, and positive drive gear box is direct driven via steel and bronze gears, no belts and pulleys to contend with
- CE Certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switch and blade cover interlock
- Blade tensioning is done via. A hand wheel and color coded gauge tensioning system taking the guesswork out of tensioning
- Miters up to 60° right / 45° left. Mitering pre-sets with flip up and pin stops makes set up fast and has precise with miter scale for all angles in between. The head turns-the material doesn’t
- Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable
- Electric coolant pump and self-contained coolant system
- Steel fabricated base, and stock stop gauge
STANDARD EQUIPMENT:
- Steel base
- 1 standard bi-metal blade
- Traversing, manual vise
- Coolant
- Stock stop gauge
SPECIFICATIONS:
- Part Number: 983112-2
- Capacity: 10" Round
- Horsepower: 2.75
- Voltage: 220V 3 Phase
- Maximum blade speed: 230 FPM
- Blade width: 1"
- Blade length: 108"
- Blade speeds: 115-230 FPM
- Solid round 90° capacity: 10"
- Solid round 45° right capacity: 8"
- Solid round 60° right capacity: 5"
- Solid square 90° capacity: 7 1/2"
- Solid square 45° right capacity: 7 1/2 / 6 3/4"
- Solid square 60° right capacity: 5"
- Solid rectangle 90° capacity: 10 1/2" x 7 3/4"
- Solid rectangle 45° right capacity: 8 1/4" x 3 1/8"
- Solid rectangle 60° right capacity: 4 3/4" x 5 1/4"
- Bed work (area):
- worktable Height: 37"
- Height: 74"
- Floor space: 28" x 66"
- Floor space left to right: 28" x 66"
- Floor space front to back: 28" x 66"
- Floor to bed:
