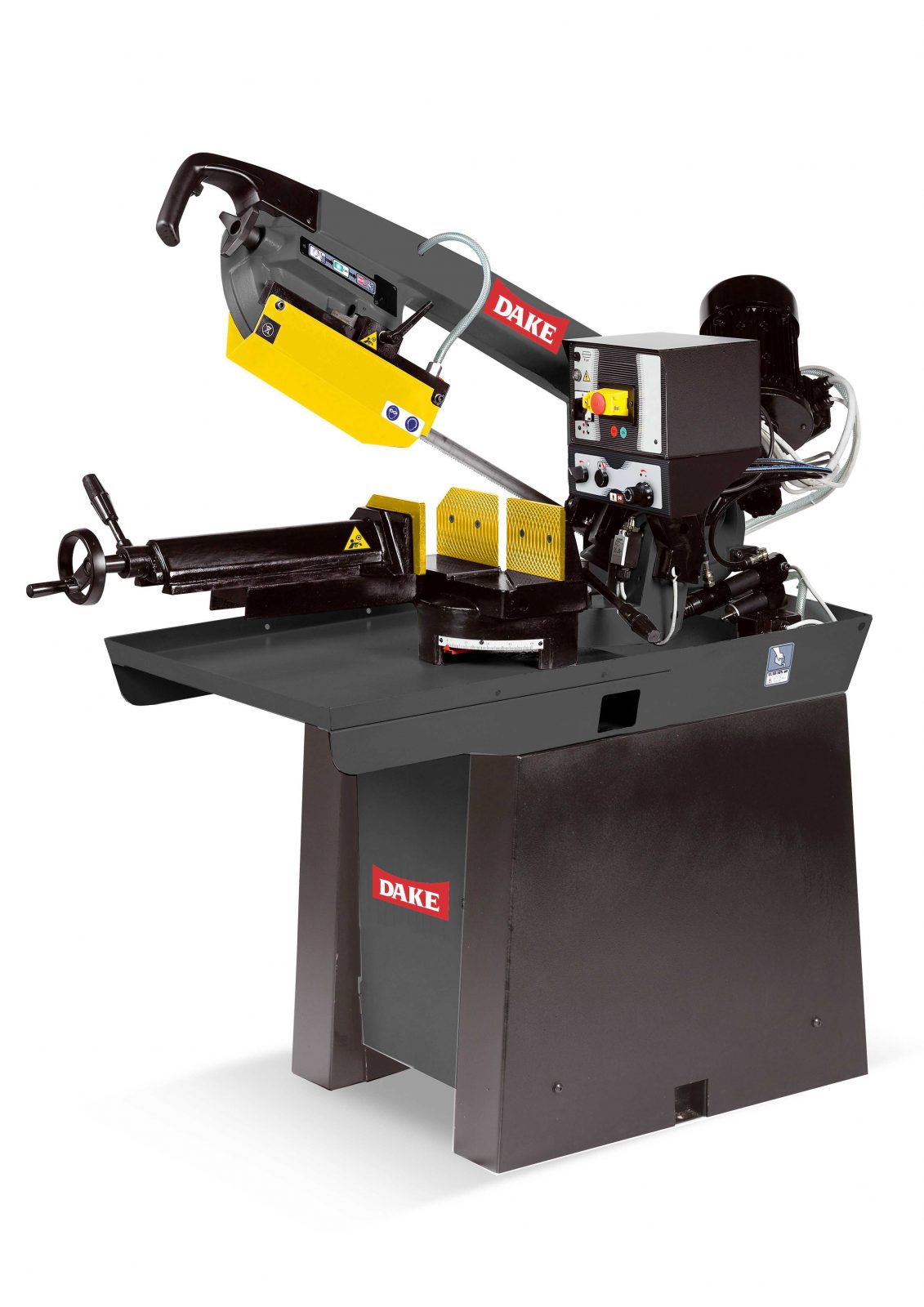

Dake Hydraulic controlled feed, horizontal mitering bandsaw, 220v-3 ph - 983111-2
Heavy duty, low production mitering saw that comes with one standard Bi-metal blade. Dual operating modes and hydraulic controlled down feed. 1.75HP, 220V motor with up to 60°right mitering capabilities. Ergonomic design for operator’s comfort and control. Horizontally mounted guide arms for more rigidity and straightest cuts.
FEATURES:
- Hydraulic controlled down feed with manual return
- Automatic shut off at the end of the cut
- Dual operating modes with rapid head descent
- Powerful, flame tempered, manual clamping vise. Hand wheel adjusted with quick release lever for rapid vise opening and closing action. The vise clamps material firmly
- Ergonomic designed for operator’s comfort and control
- Gearbox is direct bolted to the bow for less vibration, and positive drive gear box is direct driven via steel and bronze gears, no belts and pulleys to contend with
- CE Certified electronics. Low voltage switches. Thermo overload protection, low voltage protection with low voltage trigger motor start switch and blade cover interlock.
- Miters up to 60° right. Mitering pre-sets with flip up stops makes set up fast and has precise with miter scale for all angles in between. The head turns-the material doesn’t.
- Blade tensioning is done via. "Go No Go” tensioning system with LED taking the guess work out of tensioning. Saw will not run if blade tension is not correct
- Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable
- Three areas of coolant distribution for even blade coverage
- Electric coolant pump and self-contained coolant system
- Steel fabricated base, and stock stop gauge
STANDARD EQUIPMENT:
- Steel base
- Standard bi-metal blade
- Coolant
- Manual vice
SPECIFICATIONS:
- Part Number: 983111-2
- Capacity: 8 1/2" Round
- Horsepower: 1.75
- Voltage: 220V 3 Phase
- Maximum blade speed: 230 FPM
- Blade width: 1"
- Blade length: 101"
- Blade speeds: 114-230 FPM
- Solid round 90° capacity: 8 1/2"
- Solid round 45° right capacity: 6 3/4"
- Solid round 60° right capacity: 4 1/4"
- Solid square 90° capacity: 7 3/4"
- Solid square 45° right capacity: 6 3/4"
- Solid square 60° right capacity: 4 1/4"
- Solid rectangle 90° capacity: 10 3/8 x 7 3/4"
- Solid rectangle 45° right capacity: 7 3/4" x 6 1/4"
- Solid rectangle 60° right capacity: 4 1/2" x 4"
- Bed work (area):
- worktable Height: 37"
- Height: 71"
- Floor space: 33" x 58"
- Floor space left to right: 33" x 58"
- Floor space front to back: 33" x 58"
- Floor to bed:
