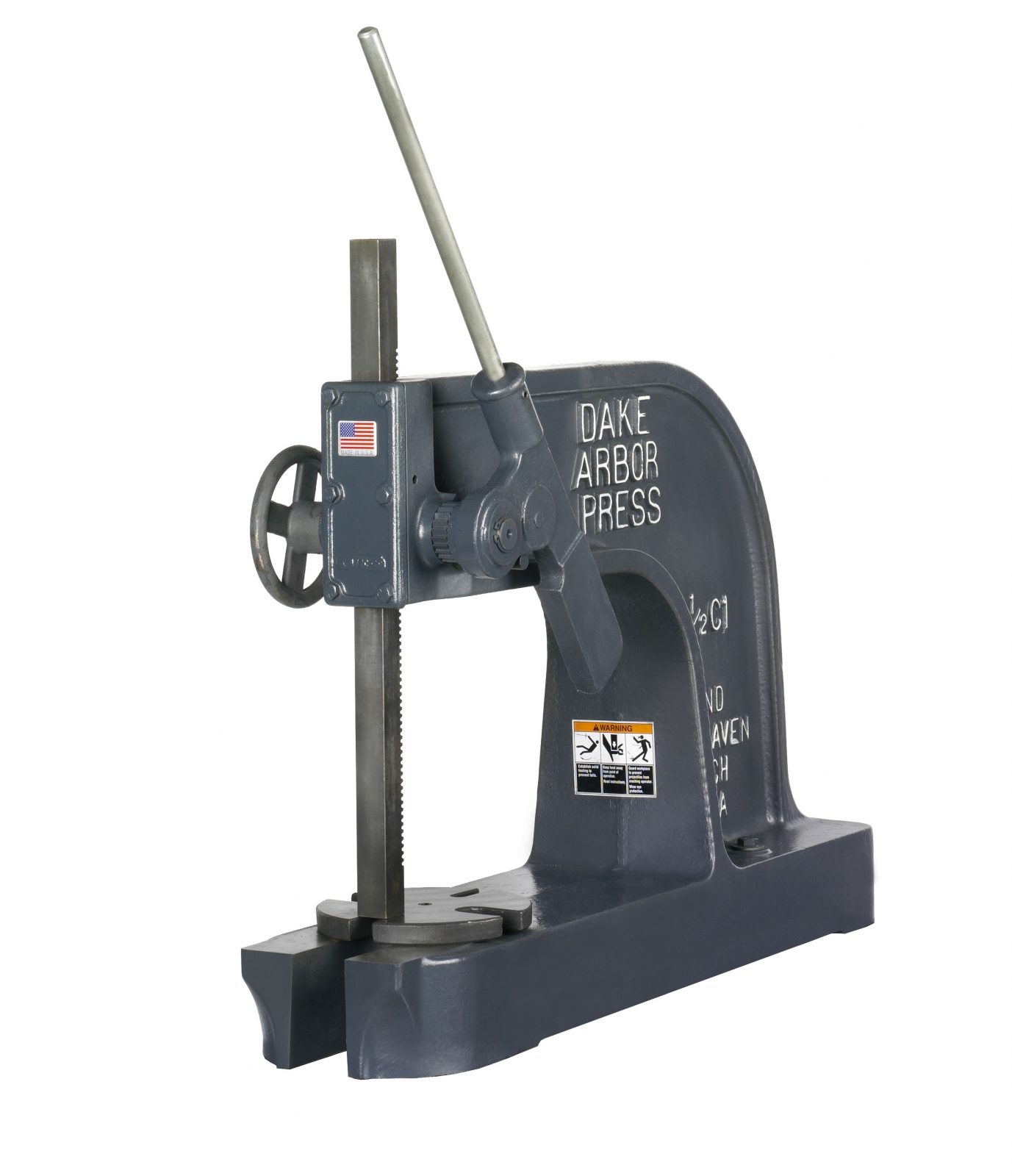

Dake 3 ton Deep Throat Ratchet Leverage Press - 902003
3 ton ratchet lever arbor press that is designed for large diameter work pieces.
FEATURES:
- Ratchet device permits lever to be used in most convenient position.
- Counterweight returns lever quickly after downstroke.
- Handwheel advanced ram to work quickly.
STANDARD EQUIPMENT:
- Cast Iron Base
- Handwheel
- Ram
- Notched Table Plate
- Counter weight
SPECIFICATIONS:
- Part Number: 902003
- Capacity: 3 tons
- Leverage ratio: 48:1
- Ram size: 1-1/4” x 1-1/4” x 24-1/2”
- Maximum diameter work: 35”
- Throat: 17-1/2”
- Largest arbor: 2”
- Maximum ram to table: n/a
- Minimum ram to table: n/a
- Capacity over table: 12”
- Capacity over table plate: 11-1/4”
- Base length: 37-1/4”
- Base width: 8-1/4”
- Height: 24-3/8”
- Weight: 425 lbs
