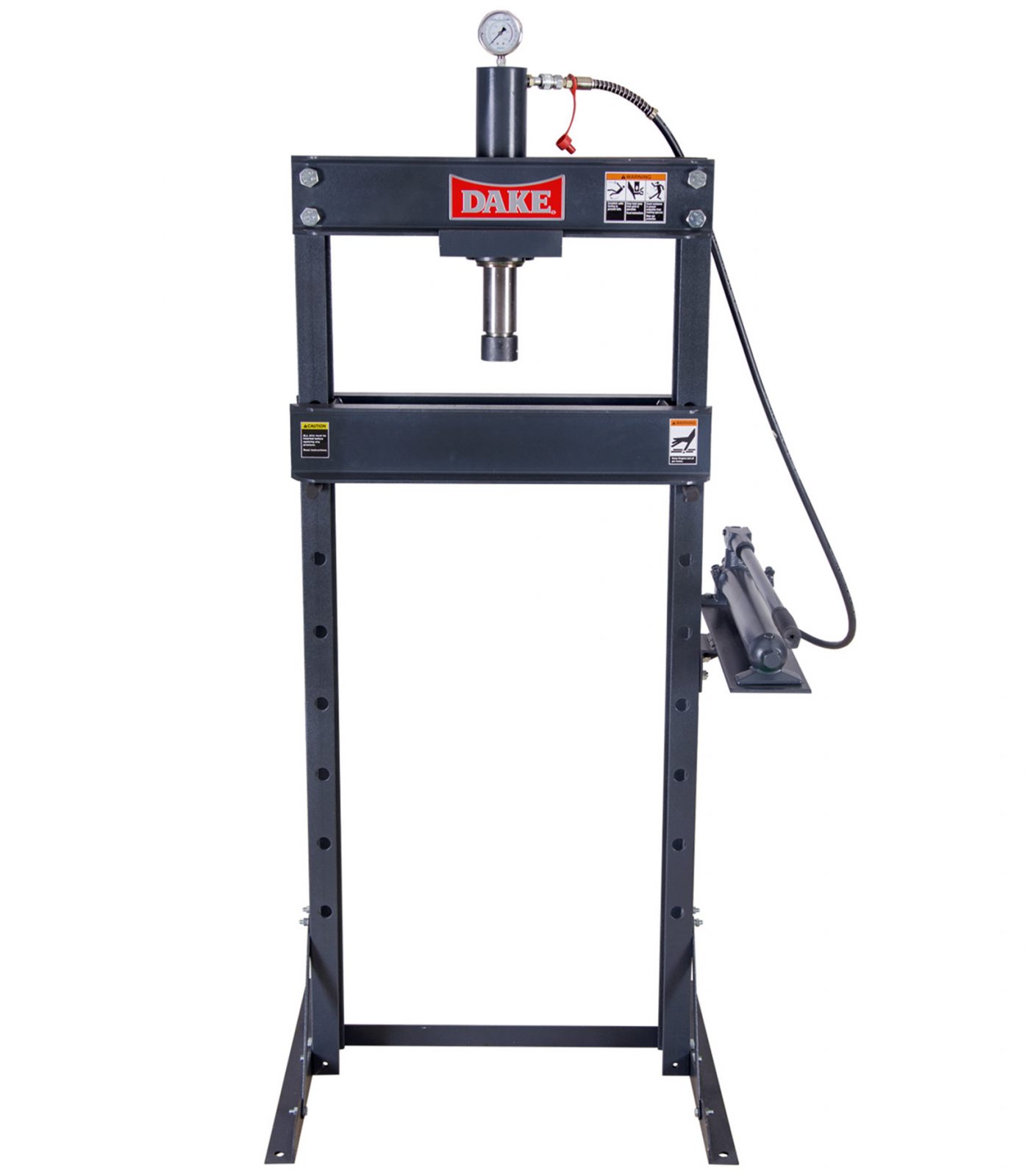

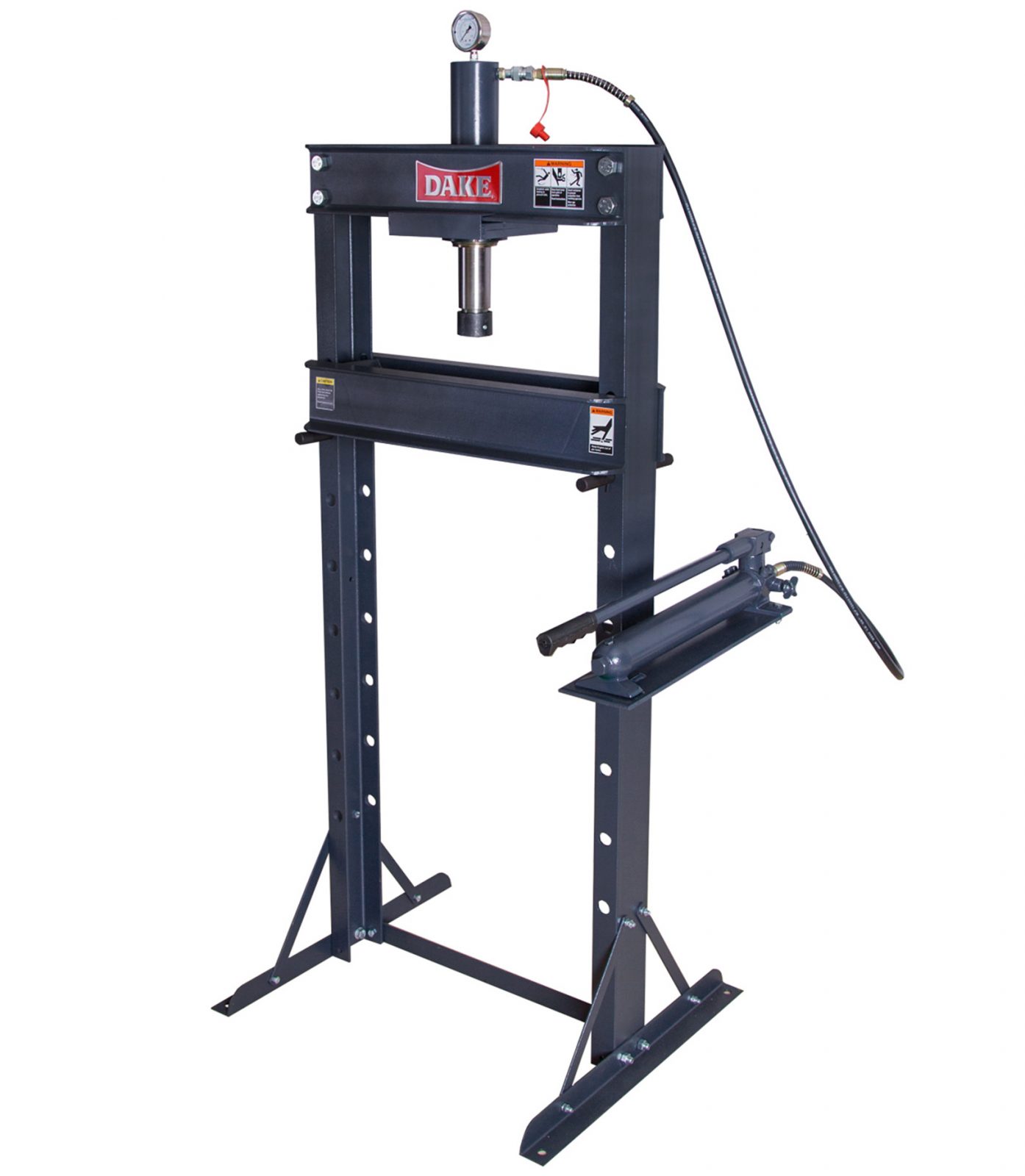

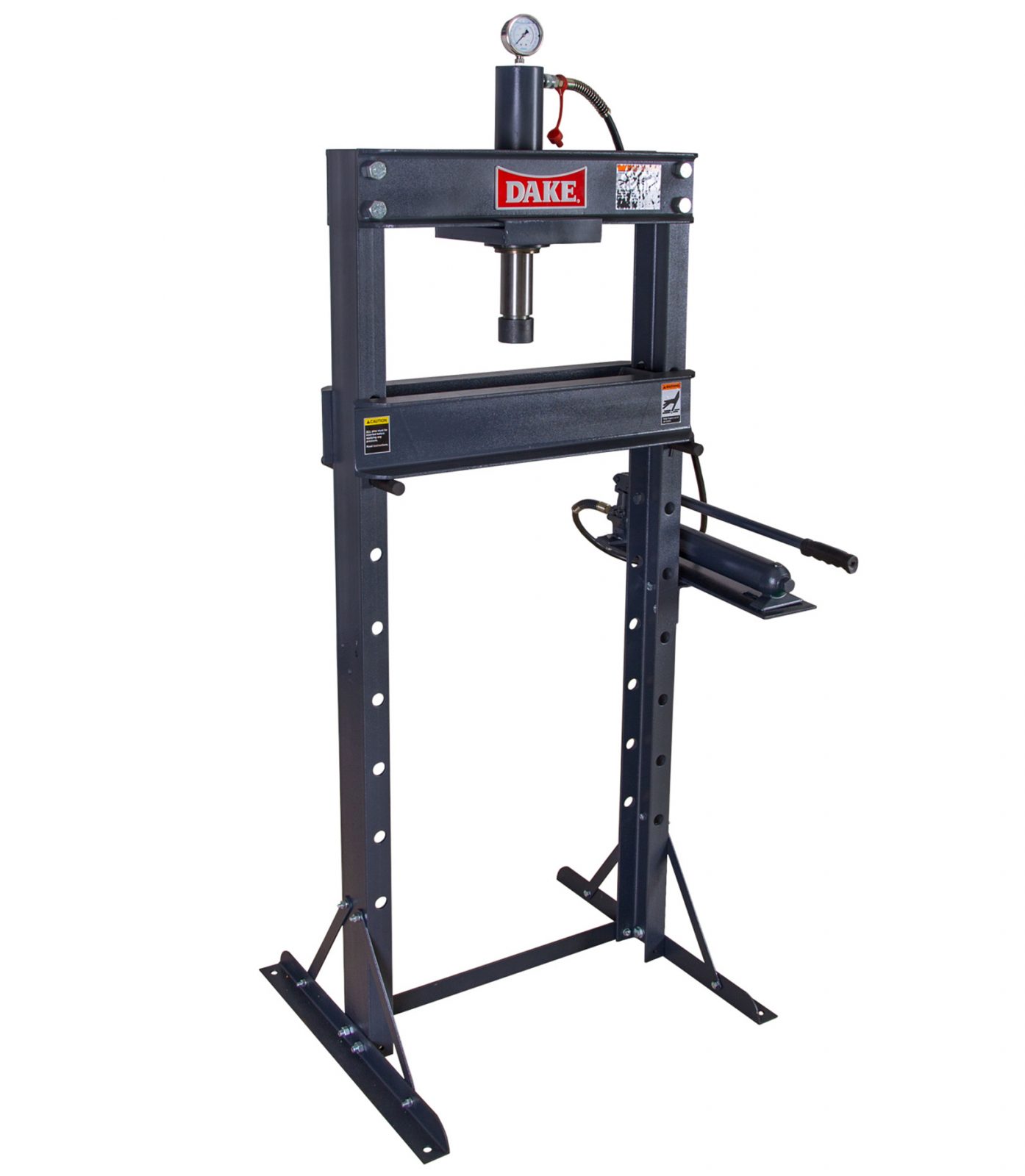

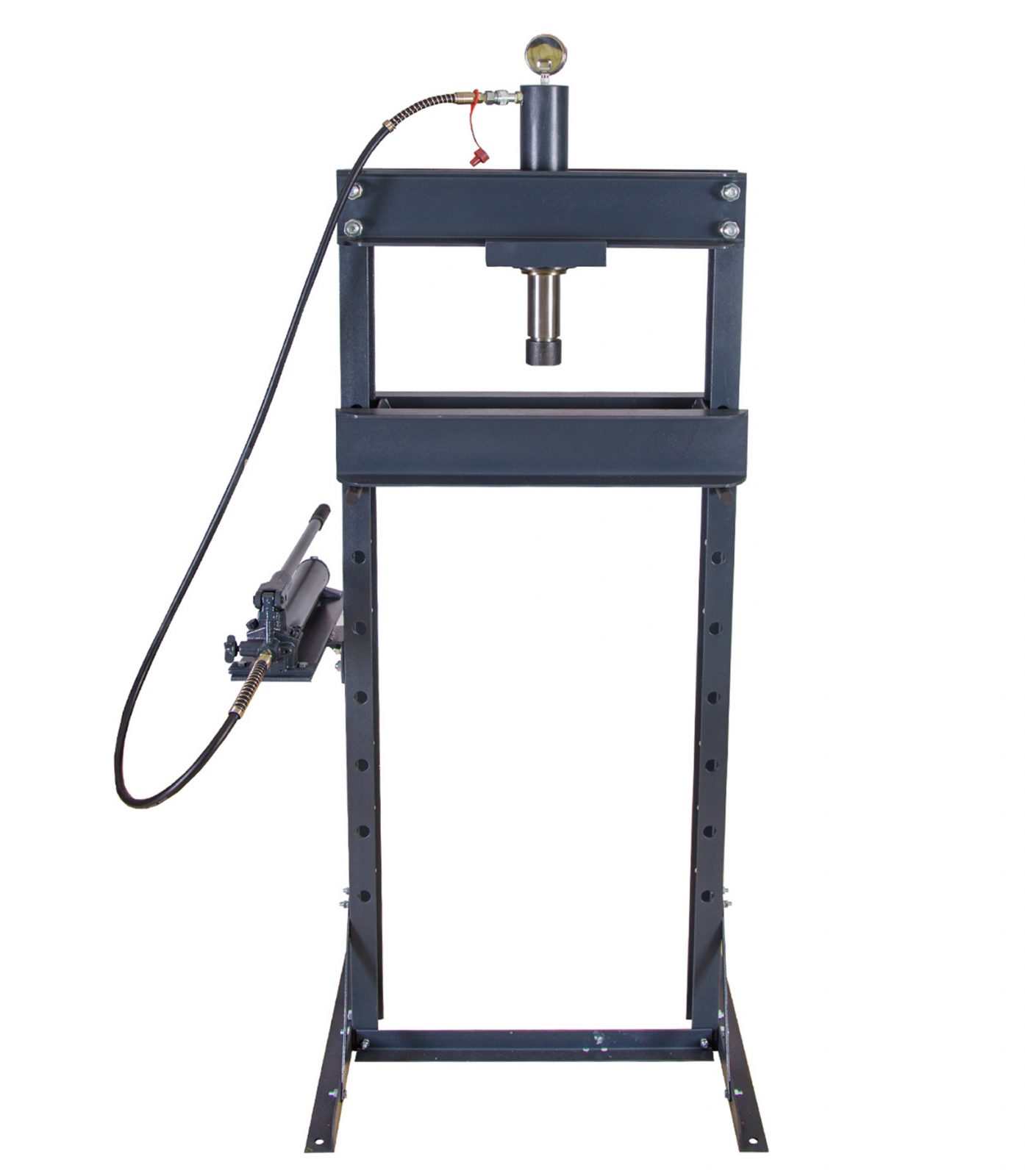

Dake 20 ton floor Manual H-frame - 972220
Dake’s line of utility presses might look small but they are extremely durable. The perfect addition for any home or hobby shop. The F-20 model is a 20 ton capacity floor press with a quick, 2-speed pump. For custom applications, a traversing head and removable nose piece come standard. Complete with table plates, gauge, and manual.
FEATURES:
- Heavy steel channel frame and table
- Long 8” stroke
- Self-contained fast, efficient two speed hand operated pump conveniently located
- Traversing head L/R for off center pressing applications
- Removable nose piece to allow for custom nose piece installation
- Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel
- Large diameter, single acting polished piston with internal spring return to eliminate external pinch points
- Comes complete with table plates, gauge, and owner’s manual
STANDARD EQUIPMENT:
- Steel channel and frame
- Traversing head
- Removable nose piece
- Table plates
- Gauge
- Step nose piece
SPECIFICATIONS:
- Part Number: 972220
- Capacity: 20 ton
- Operation: Manual
- Horsepower: n/a
- Voltage: n/a
- Width between uprights: 22"
- Width between table channels: 4"
- Minimum ram to table: 4”
- Maximum ram to table: 39"
- Ram travel: 8"
- Screw travel: n/a
- Horizontal workhead travel: left/right of center
- Footprint: 34" x 26"
- Height: 70"
- Weight: 283 lbs
- Base: 34" x 26"
- Ram advance speed: 3/16" per stroke
- Pressing speed: n/a
- RPM: n/a
- Air pressure: n/a
