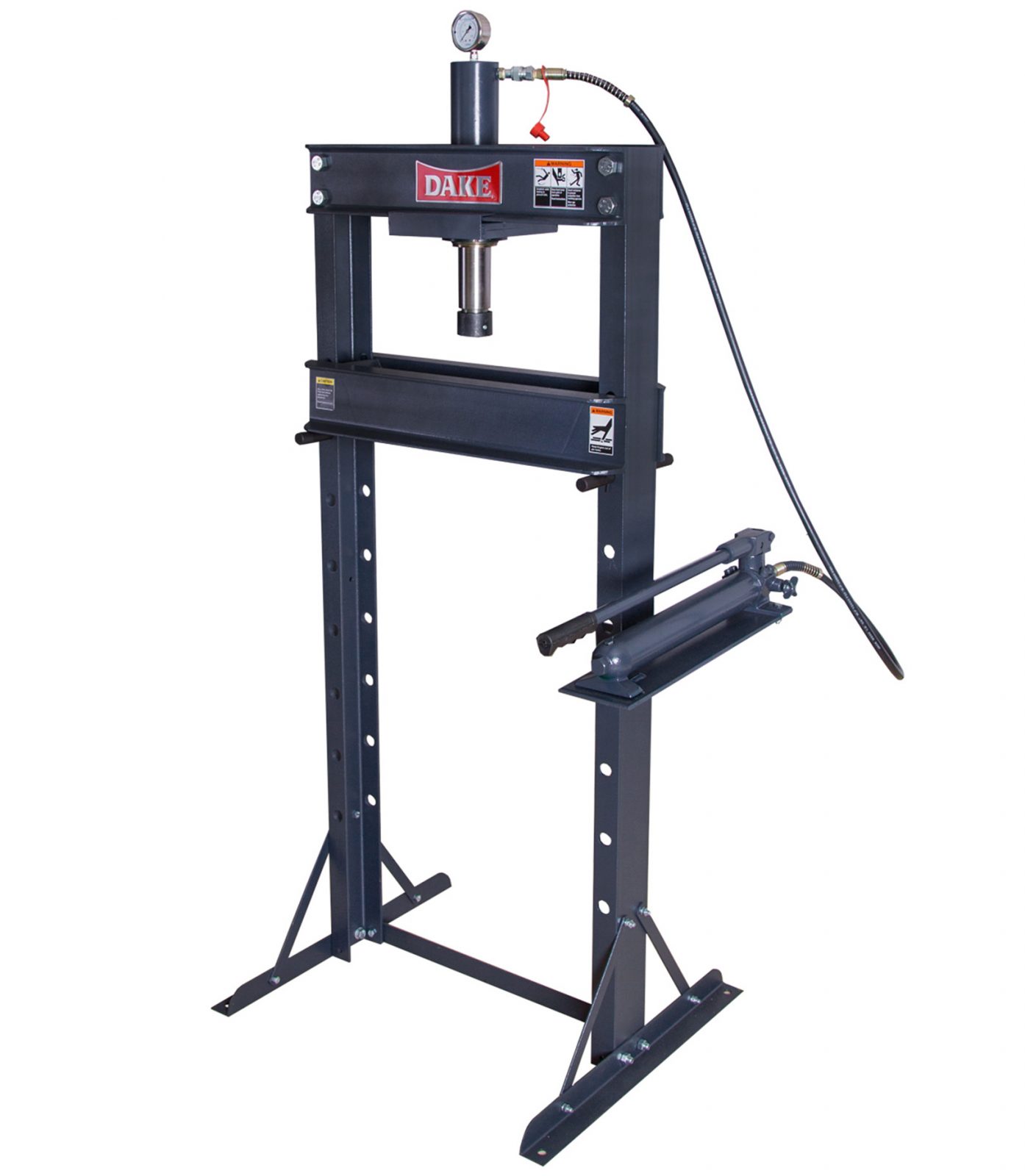

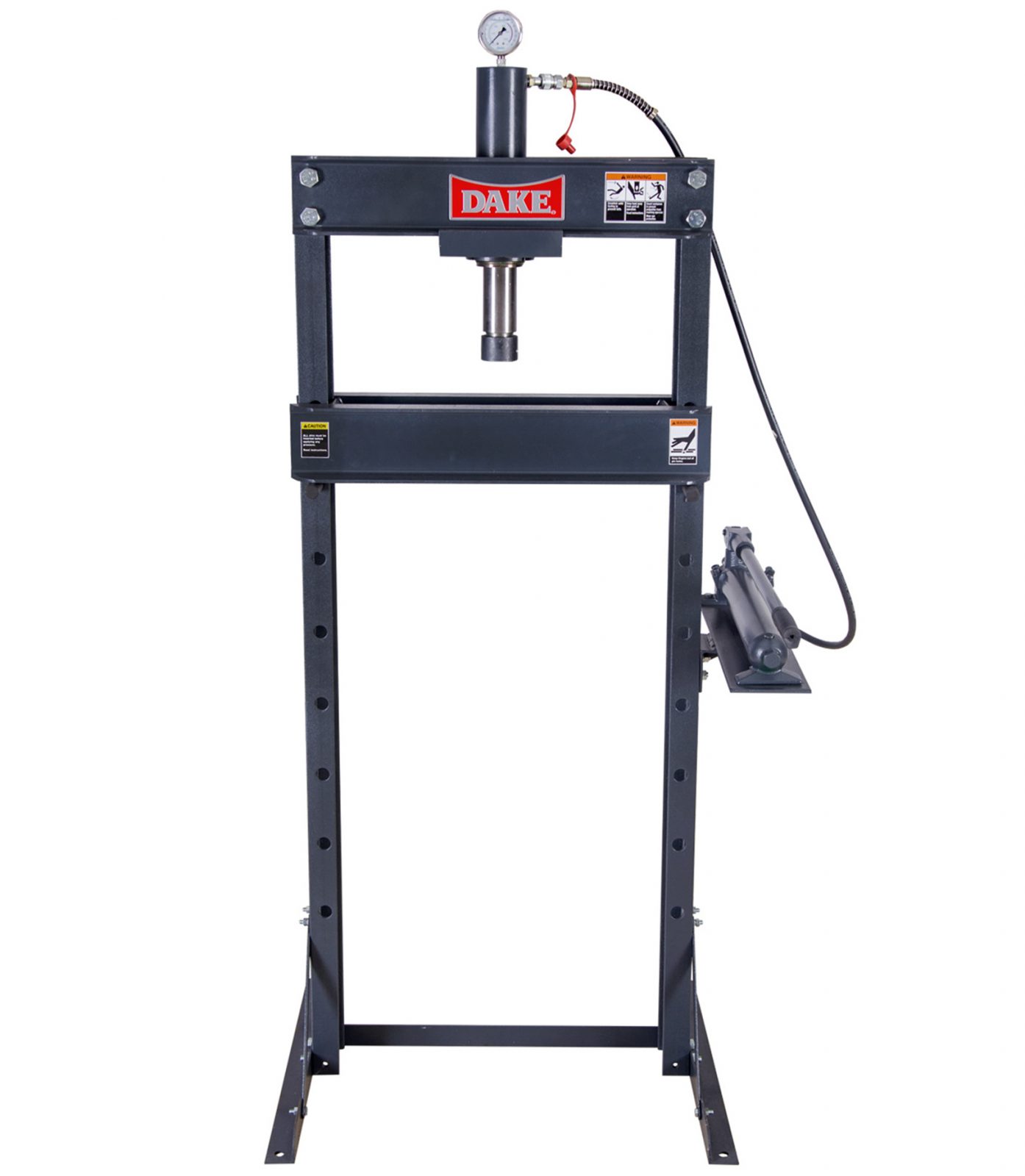

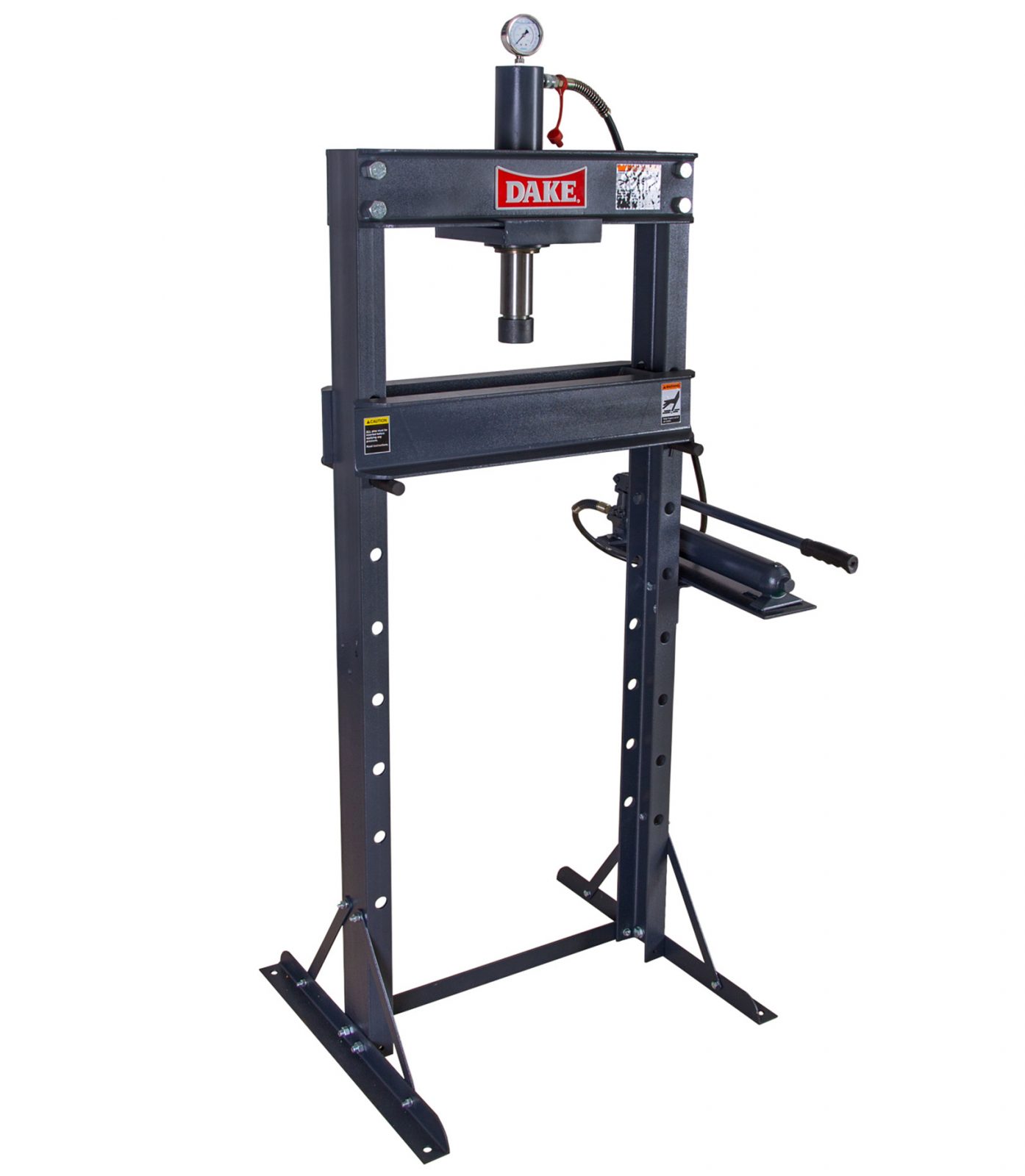

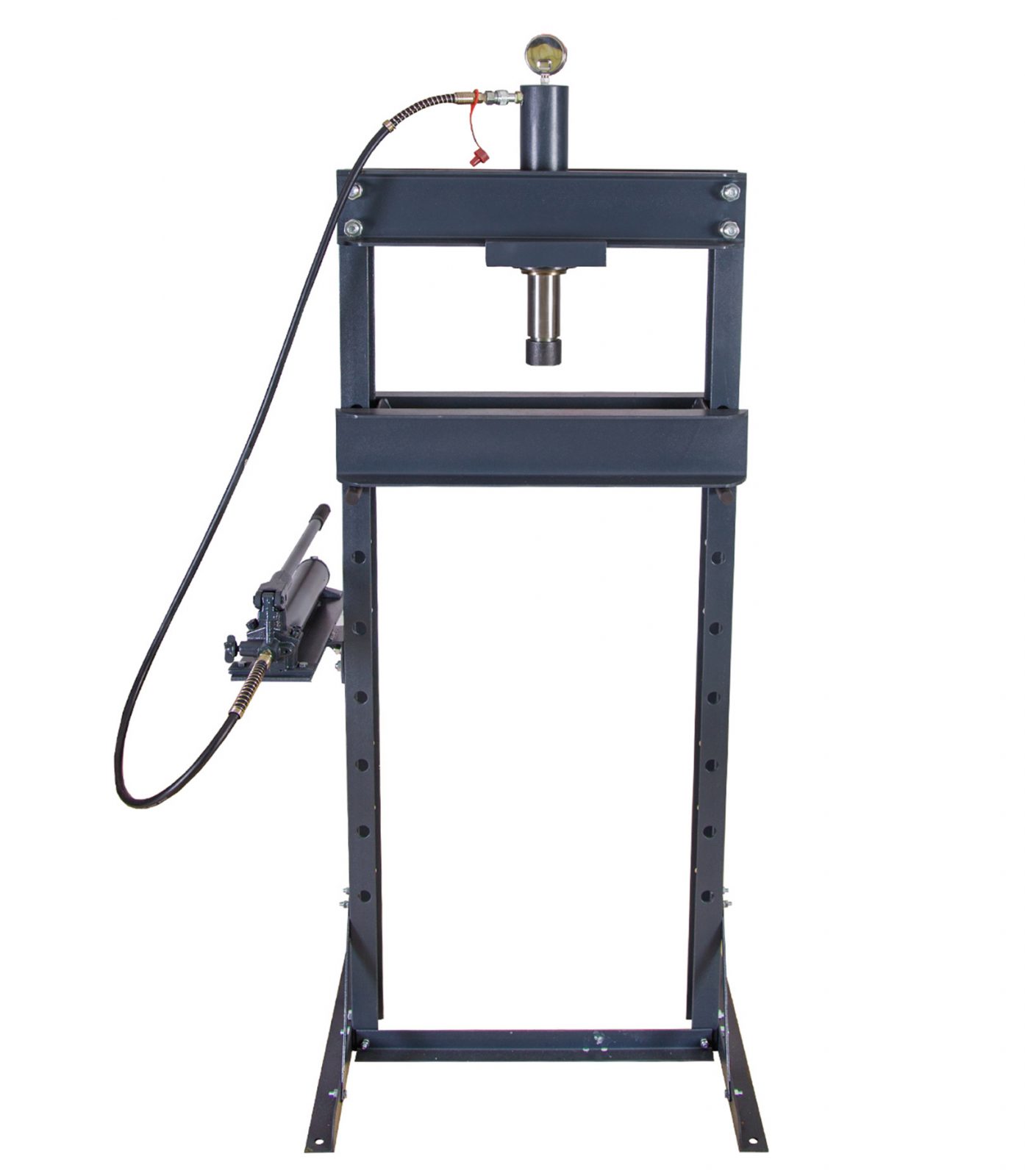

Dake 10 ton floor Manual H-frame - 972210
Dake’s line of utility presses might look small but they are extremely durable. These manual powered presses are the perfect addition for any home or hobby shop. The F-10 model is a 10 ton capacity floor press. For custom applications, a traversing head and removable nose piece come standard. Each press comes complete with table plates, gauge, and manual. These quality utility presses are guaranteed to last for years.
FEATURES:
- Fast, efficient single speed hand pump with adjustable mounting for maximum ergonomic operation.
- Convenient top mounted gauge reads in tons and psi to monitor pressure.
- Table can be adjusted for maximum or minimum vertical opening to accommodate a variety of work pieces and to minimize required ram travel.
- Large diameter, single acting polished piston with internal spring return to eliminate external pinch points.
- The hydraulic pressing cylinder can be relocated right or left of center for unusual work pieces.
STANDARD EQUIPMENT:
- Frame
- Flat Ram Nose
- Combination Table Plates/V-Blocks
- Step Reduced Ram Nose
SPECIFICATIONS:
- Part Number: 972210
- Capacity: 10 tons
- Operation: Manual
- Horsepower: n/a
- Voltage: n/a
- Width between uprights: 16-3/4"
- Width between table channels: 3”
- Minimum ram to table: 4”
- Maximum ram to table: 38”
- Ram travel: 6”
- Screw travel: n/a
- Horizontal workhead travel: left/right of center
- Footprint: 24" x 28"
- Height: 60”
- Weight: 225 lbs
- Base: 24” x 28”
- Ram advance speed: 1/8" per stroke
- Pressing speed: n/a
- RPM: n/a
- Air pressure: n/a
