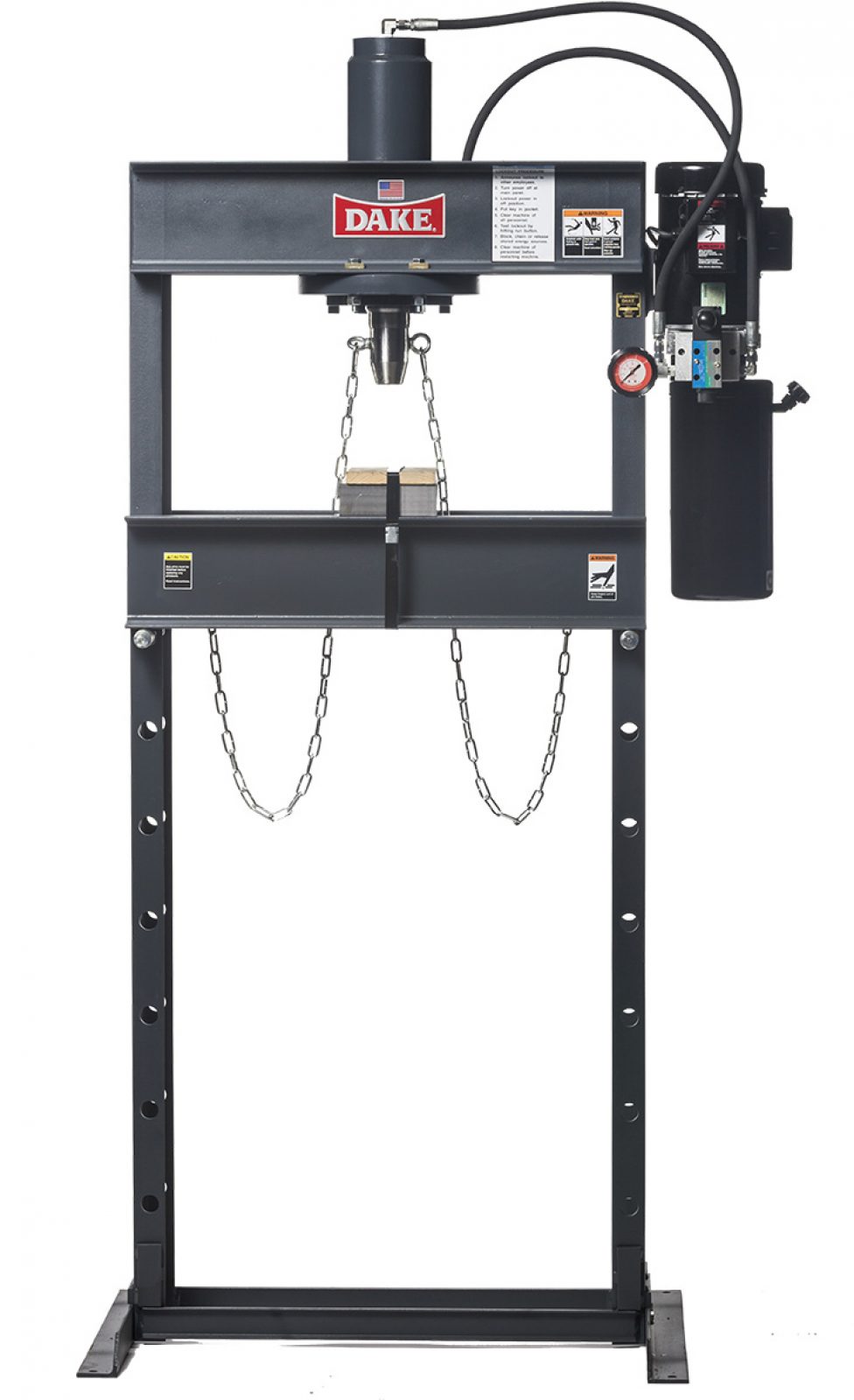

Dake 25 ton Electrically Operated H-frame 110v-1 ph - 909215
25 ton electrically operated hydraulic dura-press powered by a 110V motor. Table height adjusts for proper positioning with included lifting chain. The three-point lever provides single-handed control over ram movement. A double-acting cylinder moves the ram during the downstroke and the return, providing smooth movement in both directions and enabling precise positioning.
FEATURES:
- Electric power unit has convenient single phase, 110 volt operation for greater portability.
- Lever control ram advance for easy operation.
- Double acting cylinder allows for convenient positioning of ram.
- Sturdy, welded channel iron frame for durability.
- Quiet, low pressure hydraulic components for greater efficiency and smooth pressing.
- One hand ram positioning with 4-way valve hydraulic control.
STANDARD EQUIPMENT:
- Frame
- Safety Relief Valve
- 2 Combination Table Plate/V-Blocks
- Pressure Gauge
- Lifting Chain
SPECIFICATIONS:
- Part Number: 909215
- Capacity: 25 tons
- Operation: Electric
- Horsepower: 1
- Voltage: 110V, Single Phase
- Width between uprights: 28”
- Width between table channels: 7”
- Minimum ram to table: 8”
- Maximum ram to table: 44”
- Ram travel: 10"
- Screw travel: n/a
- Horizontal workhead travel: Fixed
- Footprint: 30” x 38”
- Height: 88”
- Weight: 570 lbs
- Base: 30” x 38”
- Ram advance speed: n/a
- Pressing speed: 10 ipm
- RPM: 3,450
- Air pressure: n/a
