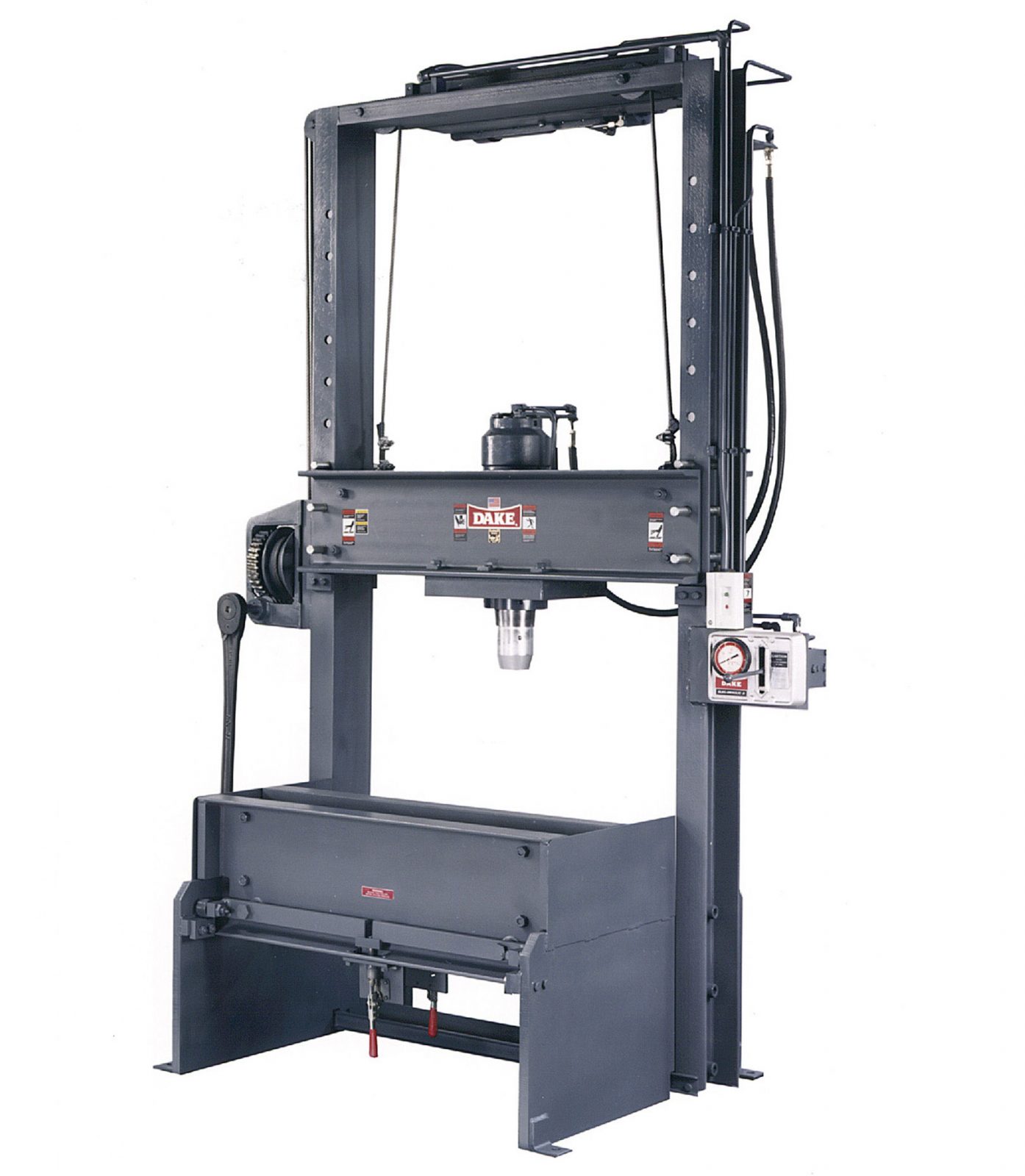

Dake 75 ton Moveable Table Elec-Draulic II Press 220v-3 ph - 942502-2
75 ton capacity press with electric hydraulic operation. The movable table allows overhead loading of heavy work pieces. An adjustable workhead height provides maximum daylight for over-sized work.
FEATURES:
- Movable table allows overhead loading of heavy workpieces.
- Heavy-duty hoist easily raises and lowers workhead.
- Adjustable workhead height provides maximum daylight for oversized work.
- Toggle clamps lock table securely in place.
STANDARD EQUIPMENT:
- Movable Table
- Heavy Duty Steel Frame
- Toggle Clamps
- Hoist
- Safety Valve
SPECIFICATIONS:
- Part Number: 942502-2
- Capacity: 75 tons
- Operation: Elec-Draulic
- Horsepower: 2
- Voltage: 220V/440V, 3-Phase
- Width between uprights: 44”
- Width between table channels: 8-1/4"
- Minimum ram to table: 13”
- Maximum ram to table: 43-3/8”
- Ram travel: 10”
- Screw travel: n/a
- Horizontal workhead travel: n/a
- Footprint: 47” x 52”
- Height: 116”
- Weight: 2,950 lbs
- Base: 47” x 52”
- Ram advance speed: n/a
- Pressing speed: 5 ipm
- RPM: n/a
- Air pressure: n/a
