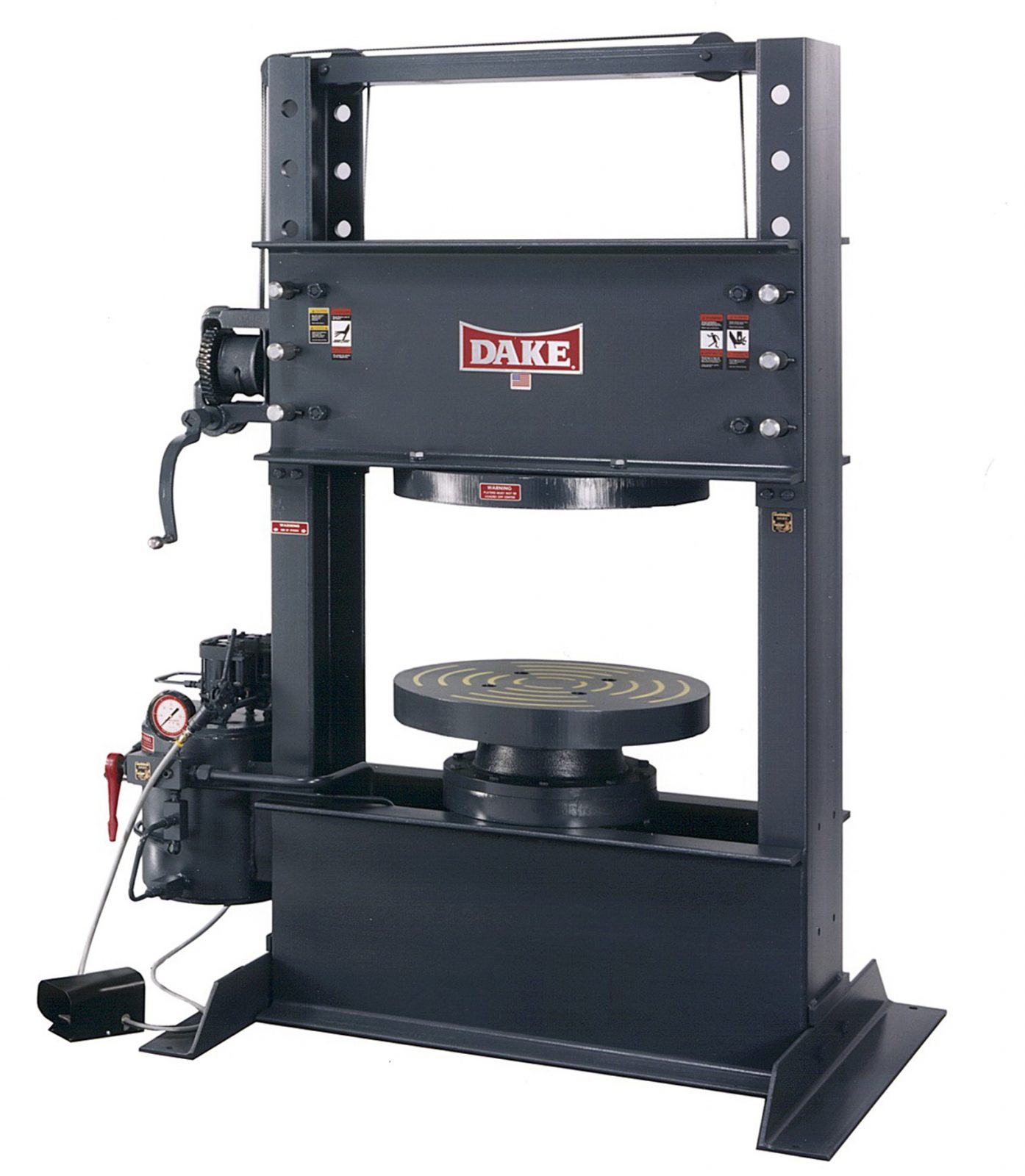

Dake 150 ton Air Powered Tire Press - 33587-2
Air operated tire press with 150 ton capacity for handling large tires. Removes tires from wheels quickly and easily. Upper movable head channel provides 15" of travel for easy set-up. Easily removable pins allow head channel to be set in four different positions.
FEATURES:
- 150 ton capacity for handling large tires
- Upper movable head channel provides 15" of travel for easy set-up
- Pressing rings in diameters and face widths for all standard tire sizes
- Large 7-3/4" ram provides platen stability and longer seal life
- Easily removable pins allow head channel to be set in four different positions
- Eliminates outside servicing delays and truck downtime
STANDARD EQUIPMENT:
- Steel Frame
- Removable Table Pins
- Upper Movable Head Channels
- Crank
SPECIFICATIONS:
- Part Number: 33587-2
- Capacity: 150 tons
- Voltage: n/a
- Horsepower: n/a
- Ram speed advance: 1-1/2 ipm
- Ram speed return: Gravity
- Width between uprights: 36”
- Maximum daylight: 30”
- Stroke: n/a
- Ram travel: 12”
- Head channel travel: 15”
- Planten diameter: 25”
- Overall height: 80”
- Floor space: 66” x 42”
- Weight: 3,350 lbs
