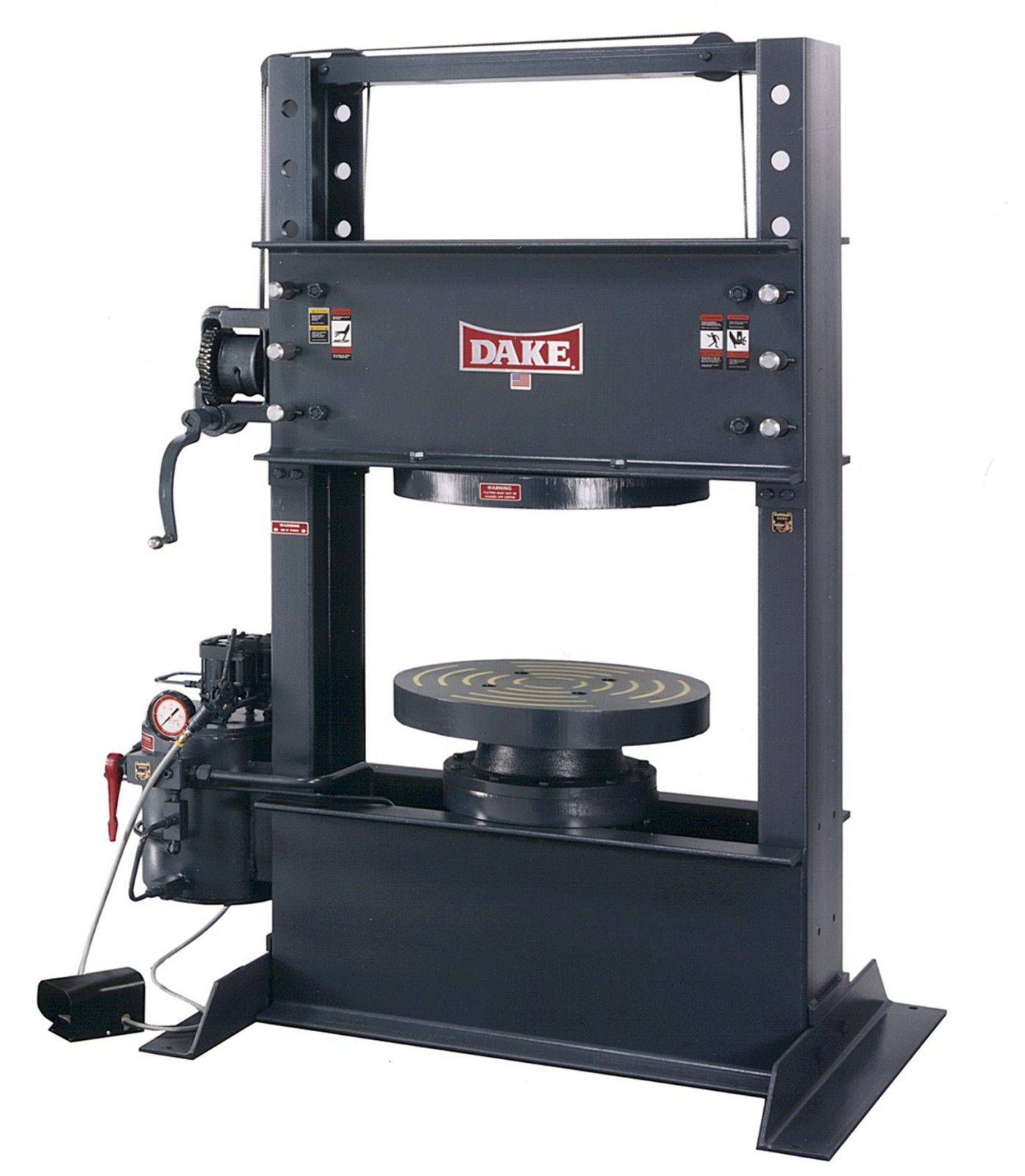

Dake 150 ton Electric Powered Tire Press 440v-3ph - 933493-4
Electrically operated tire press with 150 ton capacity for handling large tires. Removes tired from wheels quickly and easily. Upper movable head channel provides 15" of travel for easy set-up. Easily removable pins allow head channel to be set in four different positions.
FEATURES:
- 150 ton capacity for handling large tires
- Upper movable head channel provides 15" of travel for easy set-up
- Pressing rings in diameters and face widths for all standard tire sizes
- Large 7-3/4" ram provides platen stability and longer seal life
- Easily removable pins allow head channel to be set in four different positions
- Eliminates outside servicing delays and truck downtime
STANDARD EQUIPMENT:
- Steel Frame
- Removable Table Pins
- Upper Movable Head Channels
- Crank
SPECIFICATIONS:
- Part Number: 933493-4
- Capacity: 150 tons
- Voltage: 220/440V, 3-Phase
- Horsepower: 2
- Ram speed advance: 2-3/4 IPM
- Ram speed return: Gravity
- Width between uprights: 36”
- Maximum daylight: 30”
- Stroke: n/a
- Ram travel: 12”
- Head channel travel: 15”
- Planten diameter: 25”
- Overall height: 80”
- Floor space: 57” x 43”
- Weight: 3,000 lbs
