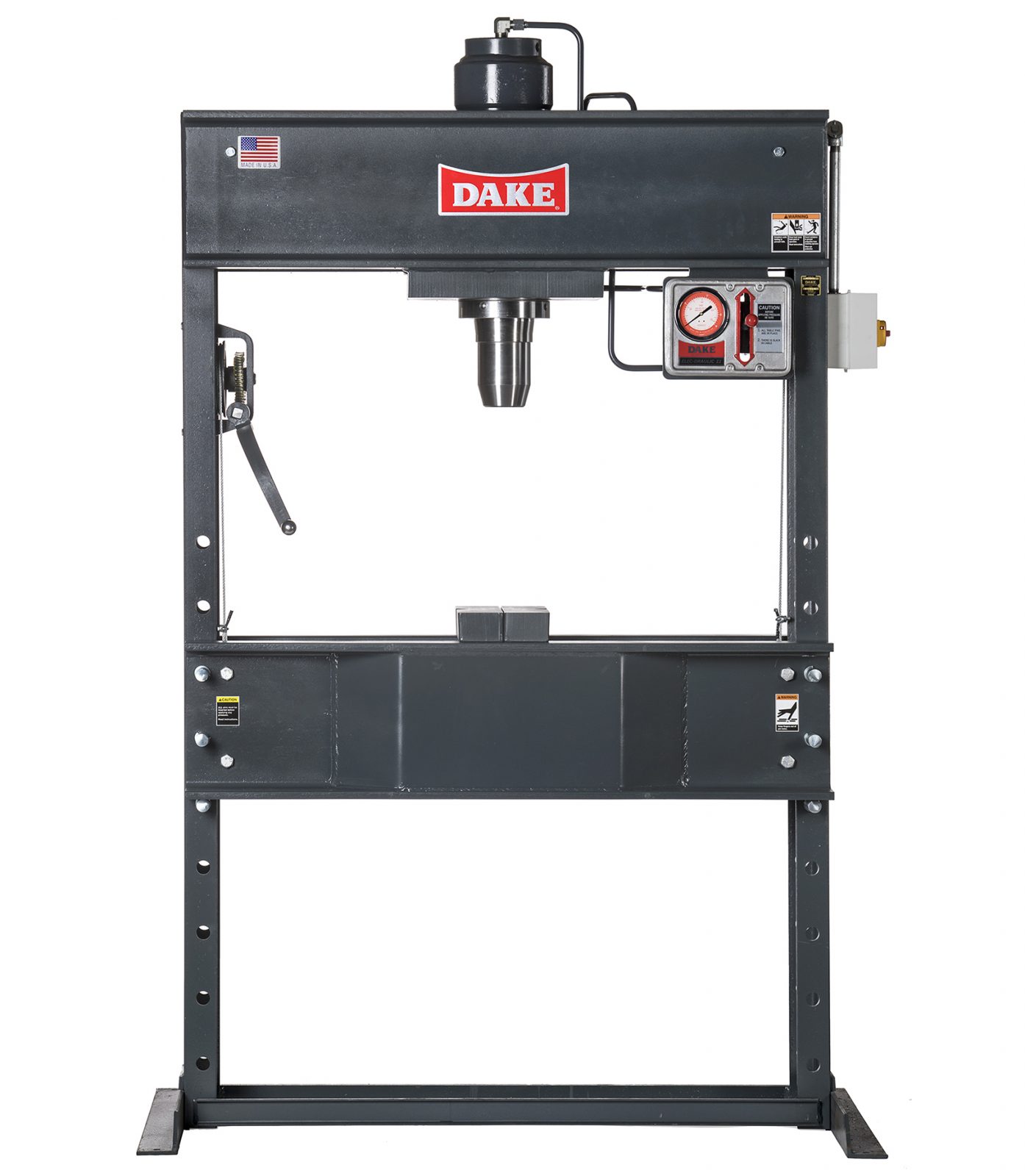

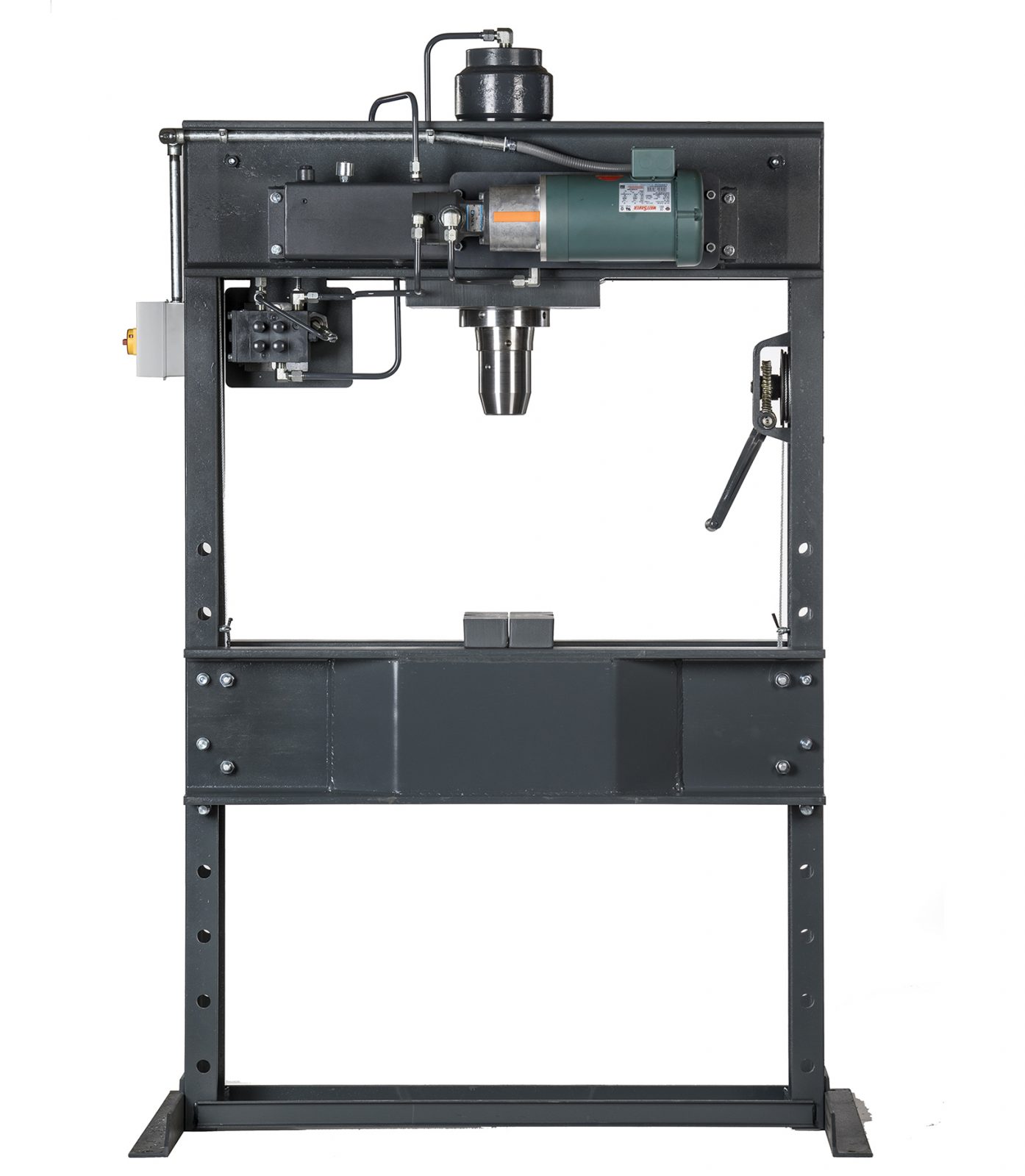

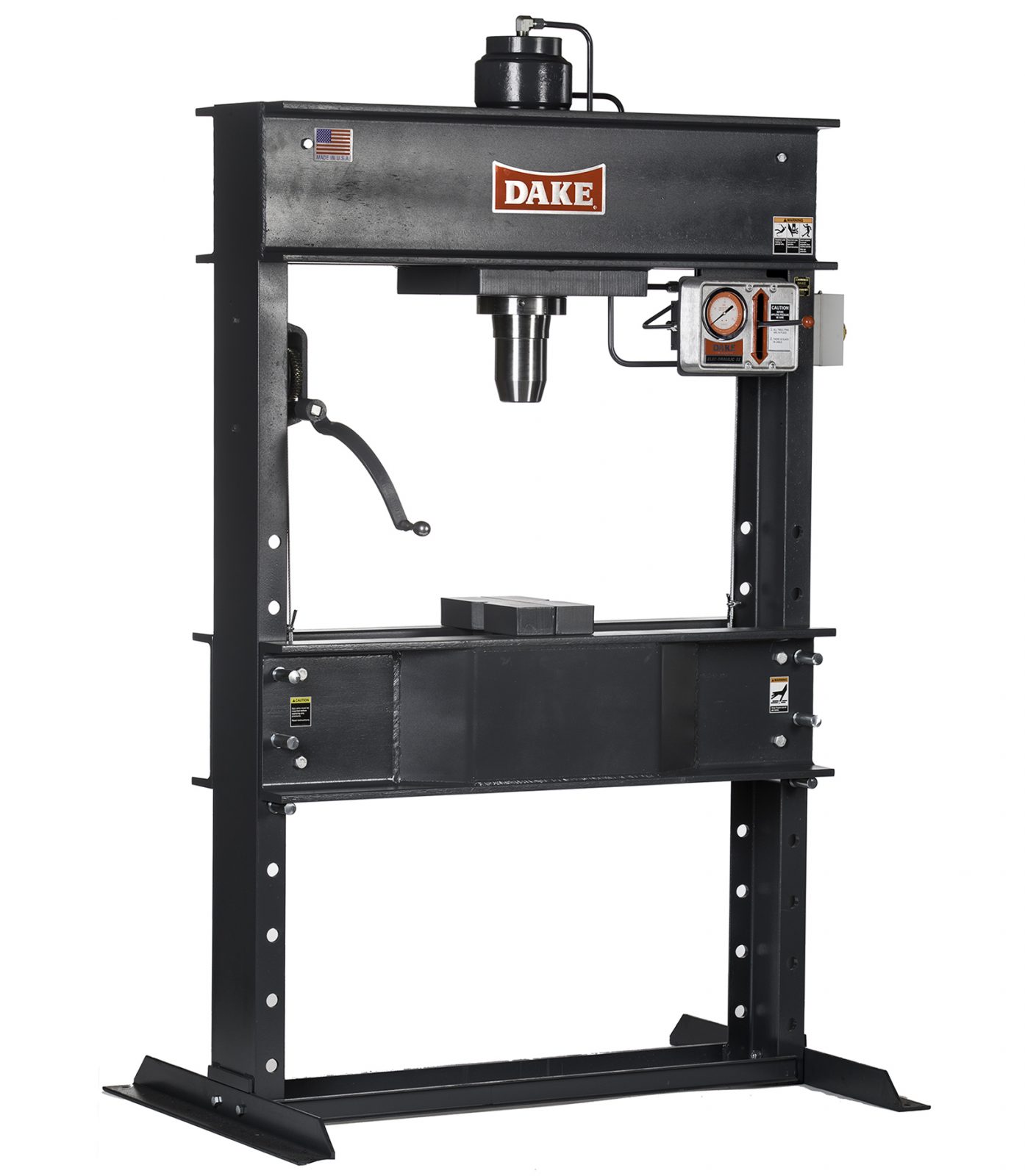

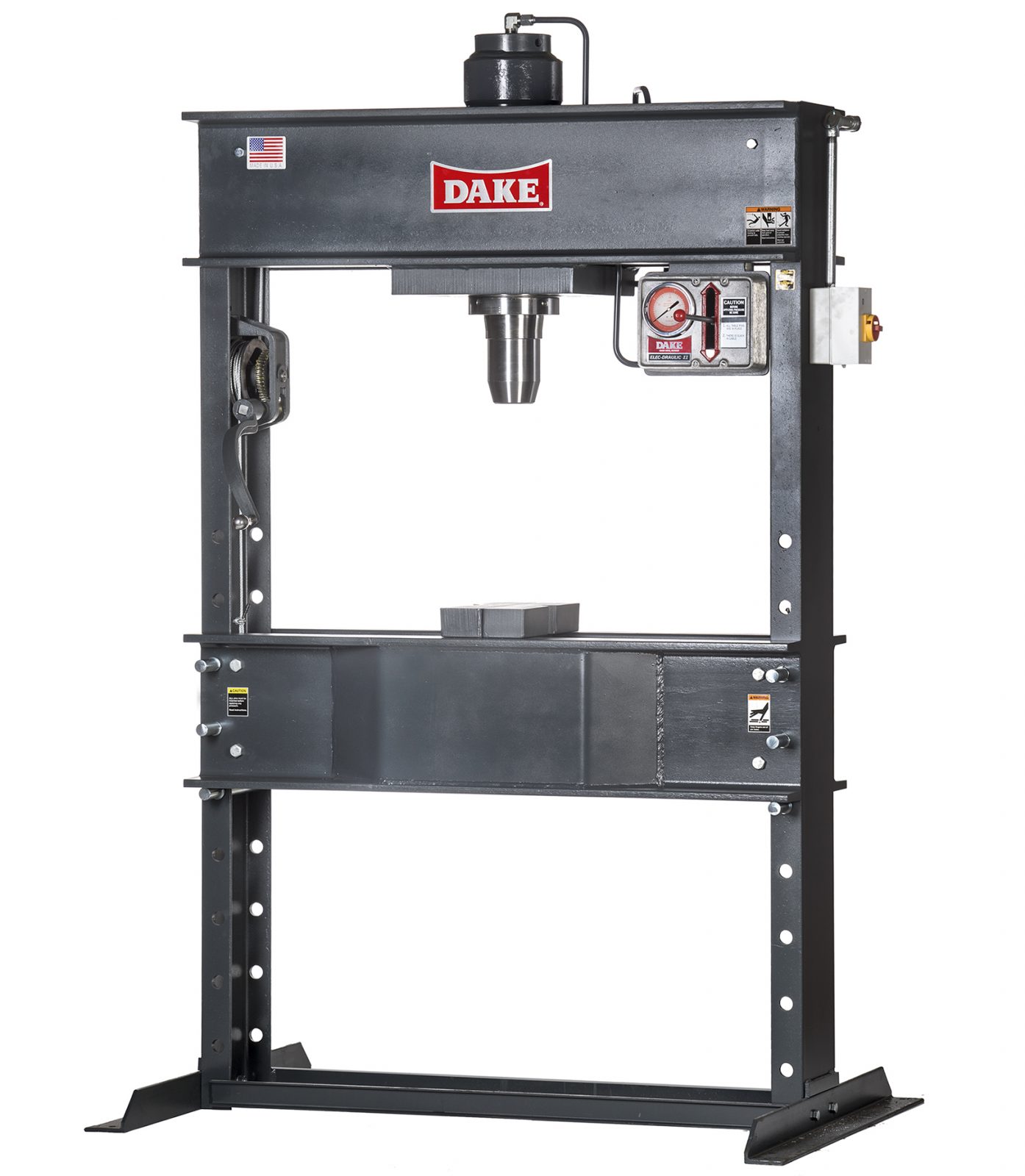

Dake 75 ton Elec-Draulic II press 220v-3ph 2 hp - 908075-2
The 75 ton electric-hydraulic II dual acting press offers a ram pressing speed of 5 IPM, has a 2 horsepower motor, and 44 inches between the uprights. The dual acting ram allows for super-sensitive ram control with simple operation.
FEATURES:
- Electric operation provides smooth, consistent pressing action.
- Variable ram speed allows fingertip control of ram movement for precise control.
- H-frame mounted control allows convenient control of press when workhead is out of operator’s reach.
- Adjustable table permits easy vertical movement by means of self-locking hoist.
- Double-acting cylinder permits pulling as well as pressing ram action
- Safety valve protects against overloads.
- T-ring seals prevent pressure loss.
STANDARD EQUIPMENT:
- Frame
- 2 Steel V-Blocks
- Flat Ram Nose
- Pump
- Safety Relief Valve
- Self-locking Table Hoist
- Double Acting Workhead
- 2 Steel Table Plates
- Pressure Gauge
SPECIFICATIONS:
- Part Number: 908075-2
- Capacity: 75 tons pressing, 28 tons pulling
- Operation: Electric
- Horsepower: 2
- Voltage: 220V/440V, 3-Phase
- Width between uprights: 44"
- Width between table channels: 8-1/4"
- Minimum ram to table: 7-5/8"
- Maximum ram to table: 37-5/8"
- Ram travel: 10"
- Screw Travel: n/a
- Horizontal workhead travel: n/a
- Footprint: 55-1/2" x 36"
- Height: 86"
- Weight: 1,950 lbs
- Base: 43-1/2" x 36"
- Ram advance speed: n/a
- Pressing speed: 5 ipm
- RPM: 1,800
- Air Pressure: n/a
